HY-2301 new-products

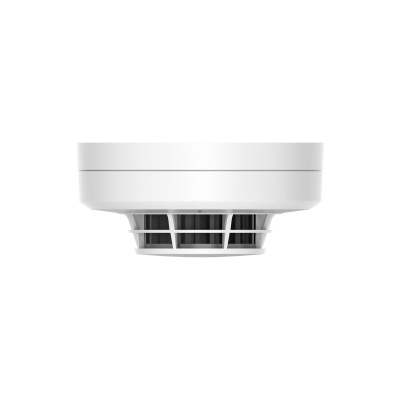

Addressable Smoke Detector

> Polarity-free two-wire design simplifies on-site wiring
> Employing intelligent background light compensation, it auto-adjusts alarm thresholds based on maze contamination, prolonging cleaning cycles and facilitating maintenance
> Base terminal features non-loosening screws for effortless installation
> Exhibiting high resistance to acids and rust, the contact material is durable
> Designed in accordance with EN54-7 standard


  • Specifications
  • Accessories
  • Download
  • selector-pcimg

    Product Selector

    Technical Specification

    Surveillance Area

    For installation heights below 4 m, the coverage area is 150 m²

    For installation heights between 4 m and 12 m, the coverage area is 80 m²

    Remote Indicator

    Support

    Working Principle

    Smoke detection

    Alarm Mode

    Indicator light alarm

    Operating Voltage

    DC16-28V

    Operating Current

    Static current: ≤350μA

    Alarm current: ≤450μA

    Operating Temperature

    –10°C to +50°C (14°F to 122°F)

    Operating Humidity

    ≤ 95% RH (no condensation)

    Dimensions (with base)

    Φ100 mm × 46.3 mm (Φ 3.94" × 1.82")

    Weight (with base)

    96 g (0.21 lb)

    Installation

    Ceiling Mount

    Compliance Standard

    EN 54-7
