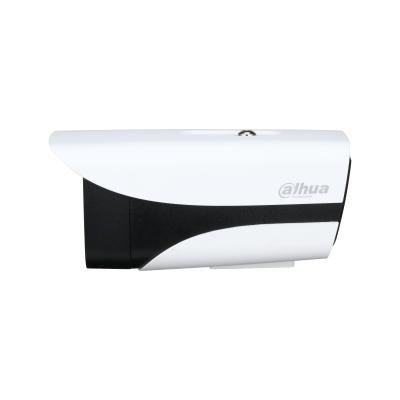

IPC-HFW1230M-A-I1-B-S5

2MP Entry IR Fixed Focal Bullet Netwok Camera

> 2MP 1/2.8" CMOS image sensor, low illuminance, high image definition

> Outputs max. 2MP (1920 × 1080) @25/30 fps

> H.265 codec, high compression rate, ultra-low bit rate
> Built-in efficient IR illuminator, and the max. illumination distance is 50 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking,applicable to various monitoring scenes
> Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, and illegal access
> Built-in Mic
> 12V DC/PoE power supply
> IP67 protection


  • Especificações
  • Acessórios
  • Download
  • Camera

    Image Sensor

    1/2.8" CMOS

    Max. Resolution

    1920 (H) × 1080 (V)

    ROM

    16 MB

    RAM

    64 MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Min. Illumination

    0.01 Lux @F2.0

    S/N Ratio

    > 56 dB

    Illumination Distance

    3.6 mm: 30 m (98.4 ft)
    6 mm: 50 m (164.0 ft)

    Illuminator On/Off Control

    Auto/Manual

    Illuminator Number

    1 (IR LED)

    Lens

    Lens Type

    Fixed-focal

    Lens Mount

    M12

    Focal Length

    3.6 mm; 6 mm

    Max. Aperture

    3.6 mm: F2.0
    6 mm: F2.0

    Field of View

    3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100°
    6 mm: Horizontal: 53°; Vertical: 30°; Diagonal: 60°

    Iris Control

    Fixed

    Close Focus Distance

    3.6 mm: 0.8 m (2.6 ft)
    6 mm: 2.2 m (7.2 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    3.6 mm

    49.7 m

    (163.1 ft)

    19.9 m

    (65.3 ft)

    9.9 m

    (32.5 ft)

    5.0 m

    (16.4 ft)

    6 mm

    82.8 m

    (271.7 ft)

    33.1 m

    (108.6 ft)

    16.6 m

    (54.5 ft)

    8.3 m

    (27.2 ft)

    Video

    Video Compression

    H.265; H.264; H.264B; MJPEG (only supported by the sub stream)

    Smart Codec

    Smart H.265+/Smart H.264+

    Video Frame Rate

    Main Stream:
    1920 × 1080 (1 fps–25/30 fps)
    Sub stream:
    704 × 576 (1 fps–25 fps)
    704 × 480 (1 fps–30 fps)

    Stream Capability

    2 streams

    Resolution

    1080p (1920 × 1080); 1.3M (1280 × 960);

    720p (1280 × 720); D1 (704 × 576/704 × 480);

    VGA (640 × 480); CIF (352 × 288/352 × 240)

    Bit Rate Control

    CBR/VBR

    Video Bit Rate

    H.264: 32 kbps–6144 kbps
    H.265: 12 kbps–6400 kbps

    Day/Night

    Auto (ICR)/Color/B/W

    BLC

    Yes

    HLC

    Yes

    WDR

    DWDR

    White Balance

    Auto; natural; street lamp; outdoor; manual; regional custom

    Gain Control

    Auto/Manual

    Noise Reduction

    3D NR

    Motion Detection

    OFF/ON (4 areas, rectangular)

    Region of Interest (RoI)

    Yes (4 areas)

    Smart Illumination

    Yes

    Image Rotation

    0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

    Mirror

    Yes

    Privacy Masking

    4 areas

    Audio

    Built-in MIC

    Yes

    Audio Compression

    G.711A; G.711Mu; G.726; PCM

    Alarm

    Alarm Event

    Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception

    Network

    Network

    RJ-45 (10/100 Base-T)

    SDK and API

    Yes

    Cyber Security

    Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

    Protocol

    IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast

    Interoperability

    ONVIF (Profile S/Profile T); CGI; P2P; Genetec

    User/Host

    6 (Total bandwidth: 36 M)

    Storage

    FTP

    Browser

    IE
    Chrome
    Firefox

    Management Software

    Smart PSS; DSS; DMSS

    Mobile Phone

    IOS; Android

    Certification

    Certification

    CE-LVD: EN62368-1
    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
    FCC: 47 CFR FCC Part 15, Subpart B

    Power

    Power Supply

    12V DC/PoE (802.3af)

    Power Consumption

    Basic power consumption: 1.5W (12V DC); 2.3W (PoE)

    Max. power consumption (ICR + H.265 + IR intensity): 3.6W (12V DC); 4.7W (PoE)

    Environment

    Operating Conditions

    –40°C to +60°C (–40°F to +140°F)

    Storage Temperature

    ≤ 95%

    Protection Grade

    –40°C to +60°C (–40°F to +140°F)

    Structure

    Casing

    Metal + plastic

    Dimensions

    194 mm × 96 mm × 89 mm (7.6" × 3.8" × 3.5")

    Net Weight

    0.64 kg (1.4 lb)

    Gross Weight

    0.78 kg (1.7 lb)
