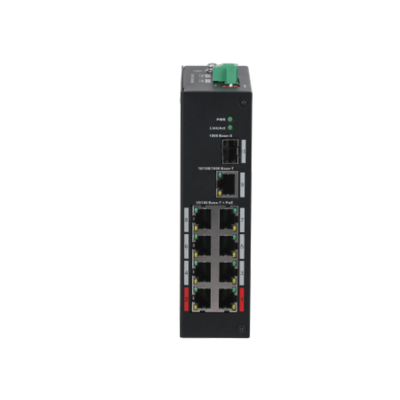

PFS3110-8ET-96

8-Port PoE Switch (Unmanaged)

> Layer two Hardened PoE switch

> Supports PoE power management

> MAC auto learning and aging, MAC address capacity is 8K

> Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1-2 supports Hi-PoE 60W power supply

> Supports IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards

> Wide working temperature design: -30°C~ 65°C

> Supports dual power backup




  • Specifications
  • Accessories
  • Download
  • Video
  • Technical Specification

    Model

    DH-PFS3110-8ET-96

    Ethernet Port

    1*1000 Base-X

    1*10/100/1000 Base-T

    8*10/100 Base-T (PoE power supply)

    PoE Power Consumption

    Port1-2≤60W, Port3-8≤30W, Total≤96W

    PoE PIN Assignment

    1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

    PoE Power Management

    Support

    PoE Protocol

    IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

    Switching Capacity

    7.6G

    Packet Forwarding Rate

    4.17Mpps

    Packet Buffer Memory

    1Mb

    MAC Table Size

    8K

    Flow Control

    Enable by default

    Application Humidity

    5%~95%

    Power

    DC 48~57V power adapter

    Lightning Protection

    Common Mode 6KV

    Differential Mode 4KV

    ESD Protection

    Air Discharge 15KV

    Contact Discharge 8KV

    Working Temperature

    -30°C~65°C

    Weight

    540g

    Dimension(W×D×H)

    150mm×100mm×42mm
