ASGY1XXA-X

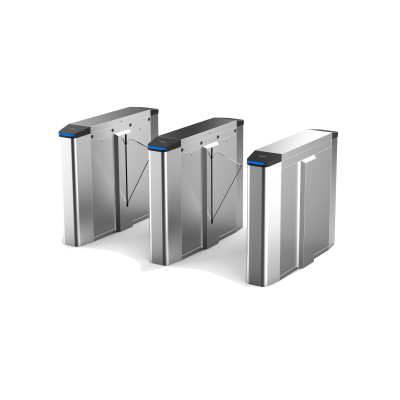

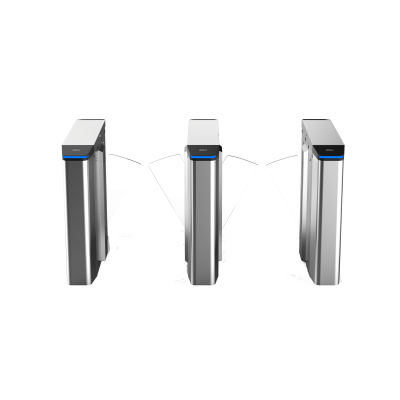

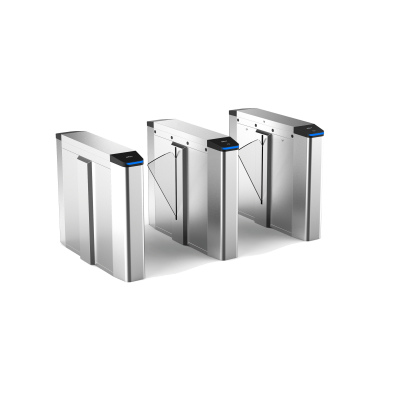

Dahua Flap Barrier
> 304 stainless steel cabinet with a thickness of 0.8 mm.
> Includes 4 pairs of IR detectors for the anti-squeeze and anti-tailing functions.
> Comes with an energy storage capacitor. When the device is turned off, the arm automatically opens.
> Brushless DC motor.
> Automatically locks when the unlock time expires.
> Sound and light alarm with adjustable volume.
> The passage width is 600 mm with Acrylic arms.
> MCBF (Mean Cycles between Failures) is higher than 3 million times.
> Supports normally opening the fire passage for quick evacuation in emergency.
> Offers 3 security level modes that are suitable for different scenes.
> Features 9 combinations of passage modes. You can build the combinations using authorized, prohibited and free for entry and exit.
> Supports configuring the speed it opens and closes, passing time for people, and delaying the closing time.
> Supports second authentication, and memorizing passing data for entry and exit.
> Supports people counting and reports the data to the platform.
> Alarms are triggered when the system detects events such as intrusion, tailing, reverse intrusion, staying in area, abnormal unlock and jumping the barrier.
System
Main Processor
Embedded Processor
Basic
Product Type
Flap barrier
Motor
Brushless DC motor
Status Indicator Light
Solid blue: Working
Solid green: Normally on
Strobing red: Abnormal
Strobing green: AuthorizingVoice Prompt
Yes
Casing Material
SUS304
Function
Online Update
Yes
Performance
MCBF
≥3 million
Product Life Span
≥3 million
Passage Width
Acrylic: 600 mm (23.62")
Max Custom Passage Width
Acrylic: 600 mm (23.62")
Passing Speed
20–60 people/min (subject to the people status and passing mode)
Unlock/Lock Speed
≥0.7 s
Pairs of IR Detectors
4
Cabinet Thickness
0.8 mm (0.03")
Top Cover Thickness
1.2 mm (0.05")
Frame Thickness
0.8 mm (0.03")
Barrier Material
Acrylic
Barrier Thickness
12 mm (0.47")
General
Power Supply
Right turnstile: 100–240 VAC, 47 Hz–63 Hz
Left turnstile: 24 VDC, 6 AVandal-proof Rating
IK06/IK08
Protection
IPX4
Power Consumption
Single turnstile: 10 W (standby), 35 W (working)
Double turnstiles: 20 W (standby), 70 W (working)Product Dimensions
1,200 mm × 280 mm × 980 mm (47.24" × 11.02" × 38.58") (L × W × H)
Packaging Dimensions
1,296 mm × 369 mm × 1,150 mm (51.02” × 14.3” × 45.28”) (L × W × H)
Gross Weight
Single turnstile: 65 kg (143.30 lb)
Double turnstiles: 72 kg (158.73 lb)
Operating Temperature
–25 °C to +70 °C (–13 °F to +158 °F)
Operating Humidity
5%–93% (RH), non-condensing
Operating Environment
Indoor; Outdoor
Storage Temperature
–25 °C to +70 °C (–13 °F to +158 °F)
Storage Humidity
5%–90% (RH), non-condensing
