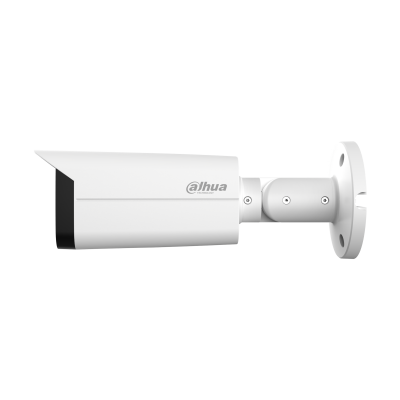

HAC-HFW2249TU-A-LED

2MP Full-color HDCVI Bullet Camera

* The parameters and datasheets below can only be applied to 2249-S2 series.

> 24/7 color imaging, Max. 30 fps@1080p.

> 60 m illumination distance.

> Super Adapt, 120 dB true WDR, 3D NR.

> Built-in mic.

> 3.6 mm fixed lens (2.8 mm, 6 mm optional).

> CVI/CVBS/AHD/TVI switchable.

> IP67, DC 12 V.


  • ์‚ฌ์–‘
  • ์•ก์„ธ์„œ๋ฆฌ
  • ๋‹ค์šด๋กœ๋“œ
  • selector-pcimg

    ์ œํ’ˆ ์„ ํƒ๊ธฐ

    Camera

    Image Sensor

    2MP CMOS

    Max. Resolution

    1920 (H) ร— 1080 (V)

    Pixel

    2MP

    Scanning System

    Progressive

    Electronic Shutter Speed

    PAL: 1/3 sโ€“1/100,000 s
    NTSC: 1/4 sโ€“1/100,000 s

    S/N Ratio

    > 65 dB

    Min. Illumination

    0.0002 Lux/F1.0, 0 Lux White Light on

    Illumination Distance

    60 m (196.9 ft)

    Illuminator On/Off Control

    Auto; manual

    Illuminator Number

    4

    Pan/Tilt/Rotation Range

    Pan: 0ยฐโ€“360ยฐ
    Tilt: 0ยฐโ€“90ยฐ
    Rotation: 0ยฐโ€“360ยฐ"

    Lens

    Lens Type

    Fixed lens

    Mount Type

    M12

    Focal Length

    2.8 mm; 3.6 mm; 6 mm

    Max. Aperture

    F1.0

    Field of View

    2.8 mm: H: 106ยฐ; V: 55ยฐ; D: 125ยฐ
    3.6 mm: H: 84ยฐ; V: 44ยฐ; D: 99ยฐ
    6 mm: H: 57ยฐ; V: 31ยฐ; D: 65ยฐ

    Iris Type

    Fixed iris

    Close Focus Distance

    2.8 mm: 1 m (3.3 ft)
    3.6 mm: 1.7 m (5.6 ft)
    6 mm: 4.3m (14.1 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    2.8 mm

    44.9 m (147.3 ft)

    17.9 m (58.7 ft)

    8.9 m

    (29.2 ft)

    4.6 m

    (15.1 ft)

    3.6 mm

    55.2 m

    (181.1 ft)

    22.1 m

    (72.5 ft)

    11.0 m

    (36.1 ft)

    5.5 m

    (18.0 ft)

    6 mm

    82.8 m

    (271.7 ft)

    33.1 m

    (108.6 ft)

    16.6 m

    (54.5 ft)

    8.3 m

    (27.2 ft)

    Video

    Frame Rate

    CVI:
    PAL: 1080P@25fps
    NTSC: 1080P@30fps
    AHD:
    PAL: 1080P@25fps
    NTSC: 1080P@30fps
    TVI:
    PAL: 1080P@25fps
    NTSC: 1080P@30fps
    CVBS:
    PAL: 960H
    NTSC: 960H

    Resolution

    1080P (1920 ร— 1080) ; 960H (960ร— 576/960 ร— 480) ;

    BLC

    BLC/HLC/WDR/HLC-Pro

    WDR

    120dB

    White Balance

    Auto; Area white balance

    Gain Control

    Auto; manual

    Noise Reduction

    3D NR

    Smart Light

    Yes

    Mirror

    Off/On

    Privacy Masking

    Off/On (8 area, rectangle)

    Certifications

    Certifications

    CE (EN55032, EN55024, EN50130-4, EN62368-1)
    FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
    UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

    Port

    Video Output

    Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

    Audio Input

    One channel built-in mic

    Power

    Power Supply

    12V ยฑ30% DC

    Power Consumption

    Max 10.2W (12V DC, warm light on)

    Environment

    Operating Temperature

    โ€“40ยฐC to +60ยฐC (โ€“40ยฐF to 140ยฐF) ; <95% (non-condensation)

    Storage Temperature

    โ€“40ยฐC to +60ยฐC (โ€“40ยฐF to 140ยฐF) ;<95% (non-condensation)

    Protection Grade

    IP67

    Structure

    Casing

    Metal throughout the whole casing

    Camera Dimensions

    244.1 mm ร— 90.4 mm ร— 90.4 mm (9.61" ร— 3.56" ร— 3.56")

    Net Weight

    0.76 kg (1.68 lb)

    Gross Weight

    1.02 kg (2.25 lb)
