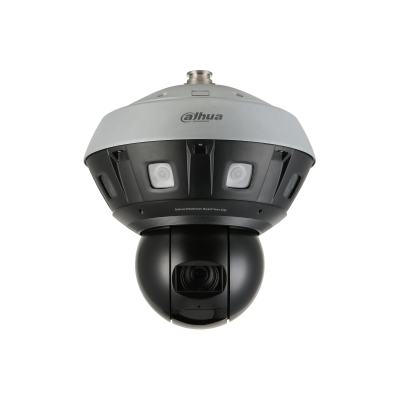

PSDW81642M-A360

8 × 2MP Multi-Sensor Panoramic + PTZ WizMind Network Camera

> Panoramic camera: Eight 1/1.8'' 2 Megapixel progressive scan CMOS

> PTZ camera: One 1/1.8'' 4 Megapixel progressive scan CMOS

> Support 360-degree panoramic view

> Starlight+ technology

> Support Smart H265+/H264+ encoding

> Day/Night (ICR); 3D NR; AWB; AGC; BLC

> IR distance up to 400 m

> Smart tracking

> Tripwire

> Intrusion

> Crowd map


  • 사양
  • 액세서리
  • 다운로드
  • Camera

    Image Sensor

    Panoramic camera: 1/1.8”2Megapixel progressive CMOS
    PTZ camera: 1/1.8”4Megapixel progressive CMOS

    Max. Resolution

    Panoramic camera: 8192 (H) × 1800 (V)
    PTZ camera: 2560 (H) × 1440 (V)

    ROM

    Panoramic camera: 4 GB
    PTZ camera: 32 GB

    RAM

    Panoramic camera: 8 GB
    PTZ camera: 4 GB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Panoramic camera: Auto/Manual 1/3 s–1/100,000 s
    PTZ camera: Auto/Manual 1/1 s-1/300,000 s

    Min. Illumination

    Panoramic network camera:
    0.001 Lux (Color); 0.0002 Lux (B/W)
    PTZ camera:
    0.001 Lux (Color); 0.0001 Lux (B/W); 0 Lux (IR on)

    S/N Ratio

    Panoramic camera: 56 dB
    PTZ camera: 53.6 dB

    Illumination Distance

    PTZ camera: ≥ 400 m (1312.3 ft) (IR LED)

    Illuminator On/Off Control

    Auto/Manual

    Illuminator Number

    PTZ camera: 7 (IR LED)

    Lens

    Lens Type

    Panoramic camera: Fixed-focal
    PTZ camera: Motorized vari-focal

    Mount Type

    Panoramic camera: M12
    PTZ camera: Module

    Focal Length

    Panoramic camera: 5 mm
    PTZ camera: 5.6 mm-223 mm, 40x optical zoom

    Max. Aperture

    Panoramic camera: F2.0
    PTZ camera: F1.3

    Field of View

    Panoramic camera:
    Horizontal: 360°
    Vertical: 84°
    PTZ camera:
    Horizontal: 2.27°–61.40°
    Vertical: 1.30°–35.99°
    Diagonal: 2.62°–68.18°

    Iris Type

    Panoramic camera: Fixed
    PTZ camera: Auto

    Close Focus Distance

    Panoramic camera: 1.2 m (3.9 ft)
    PTZ camera: 0.5 m (1.6 ft)

    DORI distance

    Detect

    Observe

    Recognize

    Identify

    Panoramic camera

    53.3 m (174.9 ft)

    21.3 m

    (69.9 ft)

    10.7 m

    (35.1 ft)

    5.3 m

    (17.4 ft)

    PTZ camera

    2873.1 m (9426.2 ft)

    1149.2 m (3770.3 ft)

    574.6 m (1885.2 ft)

    287.3 m (942.6 ft)

    Smart event

    IVS

    Intrusion, tripwire

    Professional, Intelligent

    Crowd Distribution Map

    Crowd distribution map; global people counting; people counting in area; crowd density abnormality snapshot

    Intelligent Search

    Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

    Video

    Video Compression

    H.265; H.264; H.264H; H.264B;

    MJPEG (only supported by sub stream)

    Smart Codec

    Smart H.265+/ Smart H.264+

    Video Frame Rate

    Panoramic camera:
    Main stream: 8192 × 1800 @1–25/30 fps;
    sub stream 1: 3840 × 832 @1–25/30 fps;
    sub stream 2: 4800 × 3840 @1–25/30 fps
    PTZ camera:
    Main stream: 2560 × 1440 @1–25/30 fps;
    sub stream 1: 704 × 480 @1–25/30 fps;
    sub stream 2: 1920 × 1080 @1–25/30 fps

    Stream Capability

    3 streams

    Resolution

    Panoramic camera:
    8192 × 1800; 7680 × 1680; 5760 × 1264; 4800 × 3840; 4096 × 900; 3840 × 832; 3200 × 2560; 2560 × 560; 2048 × 452; 1600 × 1280
    PTZ camera:
    2560 × 1440; 2048 × 1536; 1920 × 1080; 1280 × 960; 1280 × 720; 704 × 576; 704 × 480; 352 × 288; 352 × 240

    Bit Rate Control

    Panoramic camera: CBR/VBR
    PTZ camera: CBR/VBR

    Video Bit Rate

    Panoramic camera:
    H.264: 512 kbps–42995 kbps
    H.265: 256 kbps–26216 kbps
    PTZ camera:
    H.264: 184 kbps–15104 kbps
    H.265: 110 kbps–9216 Kbps

    Day/Night

    Auto (ICR)/Color/B/W

    BLC

    Yes

    HLC

    Yes

    WDR

    Panoramic camera:
    True WDR:120 dB
    PTZ camera: WDR (120 dB )

    Scene Self-adaptation (SSA)

    Yes

    White Balance

    Panoramic camera:
    Auto/Natural/Street lamp/Outdoor/Manual/Regional custom
    PTZ camera:
    Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp

    Gain Control

    Auto/Manual

    Noise Reduction

    3D NR

    Motion Detection

    OFF/ON (4 areas)

    Region of Interest (RoI)

    Panoramic camera: Yes (4 areas)
    PTZ camera: Yes (4 areas)

    Electronic Image Stabilization (EIS)

    PTZ camera: Yes

    Smart Illumination

    PTZ camera: Yes

    Defog

    PTZ camera: Yes

    Privacy Masking

    Panoramic camera: 4 areas
    PTZ camera: 8 areas

    Audio

    Audio Compression

    G.711A; G.711Mu; G.726

    Alarm

    Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection and external alarm.

    Network

    SDK and API

    Yes

    Network

    RJ-45 (10/100/1000 Base-T)

    Protocol

    HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE;IPv4/v6; SNMP; QoS; UPnP; NTP

    Cyber Security

    Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

    Interoperability

    ONVIF (Profile G/T/S); CGI

    User/Host

    20 (Total bandwidth: 800 M)

    Storage

    FTP; SFTP; Micro SD card (support max. 512 G); NAS

    Browser

    IE: IE7 and earlier
    Chrome: 42 and earlier
    Firefox: 52 and earlier
    Safari: 11 and earlier

    Management Software

    EVS; NVR; M70; DSS; Milestone; Genetec

    Mobile Phone

    IOS; Android

    PTZ Dome

    Pan Range

    Pan: 0° to 360° endless
    Tilt: –12° to 90°, auto flip 180

    Manual Control Speed

    Pan: 0.1°/s–240°/s
    Tilt: 0.1°/s–100°/s

    Remote Lens Reset

    Yes

    Remote PTZ Reset

    Yes

    Preset

    300

    Tour

    8 (up to 32 presets per tour)

    Pattern

    5 patterns

    Scan

    5 auto scans

    Power-off Memory

    Yes

    Idle Motion

    Preset/Pattern/Tour/Scan

    Time Task

    Yes

    3D Positioning

    Yes

    PTZ Limit

    Yes

    Position Display

    Yes

    Information Display

    Yes

    Time Display

    Yes

    Certifications

    Certification

    CE-LVD:EN62368-1

    CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU

    FCC:47 CFR FCC Part 15, Subpart B

    UL/CUL:UL60950-1 CAN/CSA C22.2 No.60950-1-07

    Port

    Audio Input

    2 channels (terminal)

    Audio Output

    2 channels (terminal)

    Alarm Input

    7 channels in: 5mA 3V–5V DC

    Alarm Output

    3 channels out: 300mA 12V DC

    Power

    Power Supply

    36V DC

    Power Consumption

    Basic power consumption: 58.7WW

    Max. power consumption (WDR + H.265 + IR LED intensity): 84.4W

    Environment

    Operating Conditions

    –40°C to +70°C (-40°F to 158°F)

    Operating Humidity

    ≤95%

    Strorage Conditions

    5°C –40°C (41°F–104°F) (The temperature difference of each day is within 15°C /59°F.)

    Protection Grade

    IP66

    Structure

    Casing

    Metal + plastic

    Dimensions

    Φ383 mm × 389.8 mm (Φ15.1" × 15.3")

    Net Weight

    14.70 kg (32.4lb)

    Gross Weight

    19.80 kg (43.7lb)
