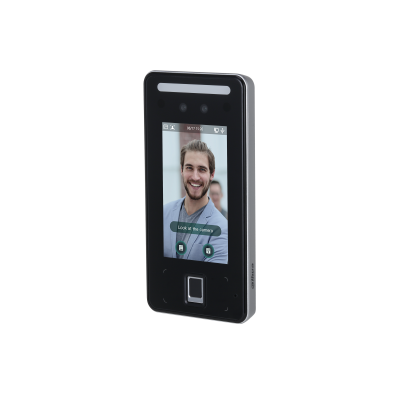

ASI6214J-MFW

FACT Access Control Terminal

> 4.3-inch LCD touch screen; resolution 480 × 272

> 2MP wide-angle dual lens camera; support DWDR, white light fill light and IR fill light

> Support face, card, password ,fingerprint unlock and unlock through their combinations; support unlock by period

> User data can be stored at the access controller; can hold 6000 face images and work without network

> Face-camera distance: 0.3 m-1.5 m

> Face verification accuracy 99.5%; face comparison speed 0.3s per person; low false recognition rate; support liveness detection

  • Specifications
  • Accessories
  • Download
  • System

    Main Processor

    Embedded Processor

    Internet Protocol

    IPv4; RTSP; RTP; TCP; UDP; P2P

    OSDP Protocol

    Support

    Interoperability

    CGI

    SDK

    Support

    Basic

    Display

    4.3 inch TFT screen

    Screen Type

    Capacitive touch screen

    Screen Resolution

    480 × 272

    Camera

    2 MP CMOS high definition camera

    WDR

    DWDR

    Light Compensation

    Auto white light
    Auto IR light

    Voice Prompt

    Support

    Casing

    PC
    Metal rear case

    Function

    Unlock Mode

    Card/Password/Fingerprint/Face unlock and unlock through their combinations

    Card Reading Type

    IC card

    Period List

    128

    Holiday Period

    128

    First-Card Unlock

    Support

    Remote Verification

    Support

    Peripheral Card Reader

    1 RS-485
    1 Wiegand

    Multiple User Unlock

    Support

    Real-Time Surveillance

    Support

    Web Configuration

    Support

    Performance

    Face Recognition Height

    0.9 m–2.4 m

    Face Recognition Distance

    0.3 m–1.5 m

    Face Verification Accuracy

    99.50%

    Fingerprint Sensor Type

    Capacitive

    Fingerprint Verification Mode

    1:N

    Fingerprint Comparison Time

    1.0 s

    Fingerprint Recognition Time

    0.5 s

    Capacity

    User Capacity

    6,000

    Face Image Capacity

    6,000

    Fingerprint Capacity

    6,000

    Card Capacity

    6,000

    Password Capacity

    6,000

    Record Capacity

    150,000

    Port

    RS-485

    1

    Wiegand

    1

    USB

    1 × USB2.0 port

    Network

    1 × RJ-45, 10/100 Mbps self-adaption

    Alarm Input

    1

    Alarm Linkage

    Support

    Exit Button

    1

    Door Status Detection

    1

    Lock Control

    1

    Alarm

    Anti-Passback

    Support

    Tamper

    Support

    Duress

    Support

    Door Sensor Timeout

    Support

    Intrusion

    Support

    Illegal Card Exceeding Threshold

    Support

    Duress Fingerprint

    Support

    General

    Power Supply Mode

    12V DC; 2A

    Protection Grade

    IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick startguide.)

    Power Consumption

    ≤ 24W

    Product Dimensions

    174.0 mm × 87.5 mm × 22.5 mm

    (6.85" × 3.44" × 0.88" ) (H × W × D)

    Working Temperature

    –30°C to 60°C (–22°F to 140°F)

    Working Humidity

    5%RH–95%RH (non-condensing)

    Working Environment

    Indoor
    Outdoor

    Gross Weight

    0.78 kg (1.72 lb)

    Accessory

    Bracket (provided)

    Installation Method

    Surface mount

    Certification

    CE
    FCC
