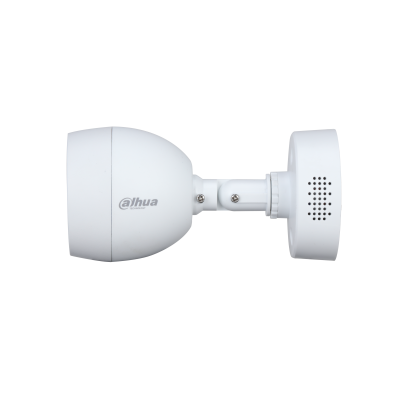

HAC-ME1509B-LS

5MP HDCVI Full-Color Active Deterrence Fixed Bullet Camera

> 24/7 color imaging
> Active deterrence with siren
> Built-in PIR, 10 m/110° detecting range/angle
> Max. 20 fps@5MP
> 2.8 mm fixed lens (3.6 mm optional)
> 40 m illumination distance
> IP67, 12V±30% DC


  • Specifications
  • Accessories
  • Download
  • Camera

    Image Sensor

    1/2.7" CMOS

    Max. Resolution

    2592 (H) × 1944 (V)

    Pixel

    5MP

    Scanning System

    Progressive

    Electronic Shutter Speed

    PAL: 1/25 s–1/100000 s
    NTSC: 1/30 s–1/100000 s

    S/N Ratio

    >65 dB

    Min. Illumination

    0.005 Lux/F1.2, 0 Lux warm light on

    Illumination Distance

    40 m (131.2 ft)

    Illumination Type

    Warm light

    Illuminator On/Off Control

    Auto; manual

    Illuminator Number

    2 (Warm light)

    Pan/Tilt/Rotation Range

    Pan: 0°–360°
    Tilt: 0°–90°
    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed-focal

    Mount Type

    M12

    Focal Length

    2.8 mm; 3.6 mm

    Max. Aperture

    2.8 mm: F1.2
    3.6 mm: F1.2

    Field of View

    2.8 mm: H: 98°; V: 71°; D: 129°
    3.6 mm: H: 83°; V: 60°; D: 112°

    Iris Type

    Fixed iris

    Close Focus Distance

    2.8 mm: 1.6 m (5.25 ft)
    3.6 mm: 1.9 m (6.23 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    2.8 mm

    67.4 m (221.1 ft)

    27 m

    (88.6 ft)

    13.5 m (44.3 ft)

    6.7 m

    (22.0 ft)

    3.6 mm

    77.8 m (255.3 ft)

    31.1 m (102.0 ft)

    15.6 m

    (51.2 ft)

    7.8 m

    (25.6 ft)

    Video

    Frame Rate

    CVI:
    5M@20 fps, 4M@25 fps/30 fps, 1080p@25 fps/30 fps;
    AHD:
    5M@20 fps;
    TVI:
    5M@20 fps;
    CVBS:
    960H

    Resolution

    5M (2592 × 1944); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

    BLC Mode

    BLC/HLC/DWDR

    WDR

    DWDR

    White Balance

    Auto/Manual

    Gain Control

    Auto/Manual

    Noise Reduction

    2D

    Smart Light

    Yes

    Mirror

    Off/On

    Privacy Masking

    Off/On (8 Area, Rectangle)

    Certifications

    Certifications

    CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
    FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
    UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

    IEC 62368-1:2014 (Second Edition)

    Port

    Video Output

    1 BNC output
    Support CVI/TVI/AHD/CVBS

    Power

    Power Supply

    12V ±30% DC

    Power Consumption

    Max 7.0W (12V DC, warm light on)

    PIR Parameters

    Detection Component

    Pyroelectric infrared sensor

    Detection Range

    10 m (32.8 ft), 110°

    Recommended Installation Height

    2.2 m–3 m (7.2 ft–9.8 ft)

    Recommended Environment Temperature for PIR

    –10°C to 50°C (14°F to 122°F)

    Active Deterrence Parameters

    Sound Warning

    Audio 1/2/3; Volume: high/medium/low; duration: 5 s–30 s; 110 dB

    Environment

    Operating Temperature

    –40°C to +60°C (–40°F to 140°F);

    <95% (non-condensation)

    Storage Temperature

    –40°C to +60°C (–40°F to 140°F);

    <95% (non-condensation)

    Ingress Protection

    IP67

    Structure

    Casing

    Cover: Metal
    Rear: Plastic

    Camera Dimensions

    164.2 mm × 83 mm × 72.4 mm (6.46" × 3.27" × 2.85")

    Net Weight

    0.27 kg (0.60 lb)

    Gross Weight

    0.39 kg (0.85 lb)
