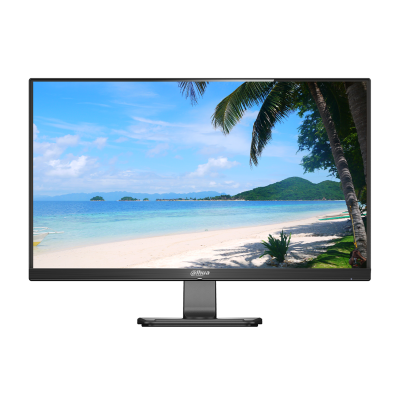

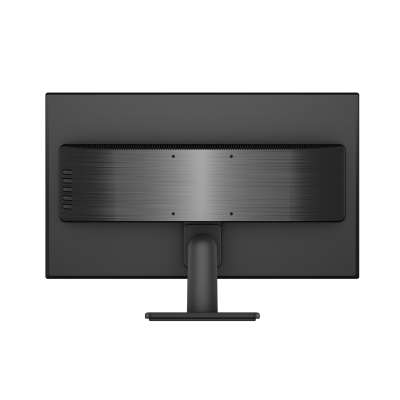

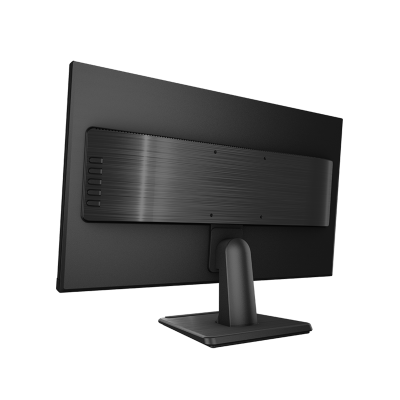

LM22-F211

21.5'' FHD Monitor

> Industrial level LCD panel, suitable for continuous 24/7 operation
> Physical resolution of 1920×1080
> High fidelity digital processing for a brilliant and vivid video
> Ultra-narrow bezel design with 178°/178° wide viewing angle make your vision more open
> Adjustable base angle, tilted angle from -3.5° to 21.5°
> Built-in speakers





  • Specifications
  • Accessories
  • Download
  • Model

    Model

    LM22-F211

    Display

    Screen Size

    21.5"

    Aspect Ratio

    16:9

    Resolution

    1920×1080 (FHD)

    Backlight

    LED

    Brightness/Luminance

    250 cd/

    Contrast Ratio

    1000:1

    Display Colors

    16.7M(8bit)

    Viewing Angle(H/V)

    178°(H)/178°(V)

    Response Time

    14ms

    Refresh Rate

    60Hz

    Signals

    Input

    VGA(D-Sub)×1, HDMI×1, Audio×1

    Output

    Speaker

    2W×2

    General

    Power Supply

    AC110~240V , 50/60 Hz

    Consumption (Standard)

    26W

    Consumption (Standby)

    ≤0.4W

    Type

    Internal

    Net Weight

    3.2kg (7.1lb)

    Gross Weight

    4.3kg (9.5lb)

    Bezel Width

    2.2mm (U/L/R), 18.1mm (B)

    VESA

    100×100mm (3.9"×3.9")

    Dimension without base (W×H×D)

    489.8×293.7×42.7mm (19.3"×11.6"×1.7")

    Package(W×H×D)

    552×382×118mm (21.7"×15.0"×4.6")

    Work Environment

    Temperature

    0~40(32°F~104°F)

    Humidity

    10%~85%

    Accessory

    Standard

    VGA cable, power cable, pedestal

    Optional

    Hanging bracket

    Certifications

    Certifications

    CE/FCC
