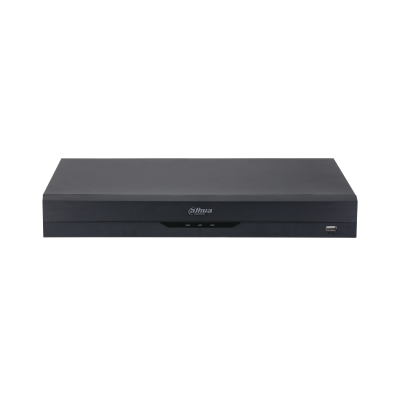

XVR5216AN-4KL-I3

16 Channels Penta-brid 4K-N/5MP 1U 2HDDs WizSense Digital Video Recorder

> H.265+/H.265 dual-stream video compression.

> Supports Full-channel AI-Coding.

> Supports HDCVI/AHD/TVI/CVBS/IP video inputs.

> Max 32 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth.

> Up to 8 channels video stream (analog channel) Perimeter Protection

> Up to 16 channels video stream (analog channel) SMD Plus.

> Up to 2 channels video stream (analog channel) human face recognition.

> IoT & POS functionalities


  • Specifications
  • Accessories
  • Download
  • System

    Main Processor

    Industrial-grade processor

    Operating System

    Embedded Linux

    Operating Interface

    Web; Local GUI

    Perimeter Protection

    Perimeter Performance AI by Recorder (Number of Channels)

    Advanced Model: 2 channels, 10 IVS for each channel

    General Model: 8 channels, 10 IVS for each channel

    Face Detection

    Face Attributes

    Gender; age group; glasses; expressions; face mask; beard

    Face Detection Performance of AI by Recorder (Number of Channels)

    2 channels (up to 12 face images/s)

    Face Recognition

    Face Database Capacity

    Up to 10 face databases with 20,000 face images in total.

    Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture

    Face Recognition Performance of AI by Recorder (Number of Channels)

    2 channels

    SMD Plus

    SMD Plus by Recorder

    16 channels:

    Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

    Audio and Video

    Analog Camera Input

    16 channel BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.

    Camera Input

    1. CVI: 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps.

    2. TVI: 4K, 5MP, 4MP, 3MP, 1080P@25/30fps, 720P@25/30fps.

    3. AHD: 4K, 5MP, 4MP, 3MP, 1080P@25/30fps, 720P@25/30fps.

    IP Camera Input

    Up to 32 channels of IPC access

    16 IP channels by default + 16 channels (analog channels are converted to IP channels)

    incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps

    *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.

    Encoding Capacity

    Main stream:

    All channels 4K@(1-7fps); 6MP@(1-10fps);

    5MP@(1-12fps); 4K-N/4MP/3MP@(1-15fps);

    4M-N/1080P/720P/960H/D1/CIF(1fps–25/30fps);

    Sub stream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30fps)

    Dual-stream

    Yes

    Video Frame Rate

    PAL: 1 fps–25 fps.
    NTSC: 1 fps–30 fps.

    Video Bit Rate

    32 kbps–6144 kbps per channel

    Audio Sampling

    8 kHz, 16 bit

    Audio Bit Rate

    64 kbps

    Bit Rate Type

    Video stream and composite stream.

    Video Output

    1 HDMI ,1 VGA
    HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
    VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

    *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.

    Multi-screen Display

    When IP extension mode not enabled: 1/4/8/9/16
    When IP extension mode enabled: 1/4/8/9/16/25/36

    Third-party Camera Access

    Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung

    Compression Standard

    Video Compression

    AI Coding; H.265+; H.265; H.264+; H.264

    Audio Compression

    G.711A; G.711u; PCM

    Network

    Network Protocol

    HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

    Mobile Phone Access

    iOS, Android

    Interoperability

    ONVIF 21.06, CGI

    Browser

    Chrome, IE9 or above, Firefox

    Network Mode

    Single-address mode

    Recording Playback

    Record Mode

    General, motion detection; intelligent; alarm; POS

    Recording Playback

    When the AI Function (IVS, FACE) is not enabled:1/4/9/16

    When the AI Function (IVS, FACE) is enabled:1/4/9

    Backup Method

    USB device and network

    Playback Mode

    Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

    Storage

    Disk Group

    Yes

    Alarm

    General Alarm

    Motion detection, video loss, tampering, and local alarm

    Anomaly Alarm

    No disk, storage error, low space, offline, IP conflict, MAC conflict

    Intelligent Alarm

    Face detection, face recognition, perimeter protection

    Alarm Linkage

    Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

    Ports

    Audio Input

    1-channel RCA (external)
    16-channel BNC (coaxial audio)

    Audio Output

    1, RCA

    Two-way Talk

    Yes (share the same audio input with the first channel)

    HDD Interface

    2 SATA ports,up to 16 TB for a single HDD, the maximum HDD capacity varies with environment temperature

    RS-485

    1

    USB

    2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

    HDMI

    1

    VGA

    1

    Network Port

    1 (10/100/1000 Mbps Ethernet port, RJ-45)

    General

    Power Supply

    12 VDC, 5 A

    Power Consumption

    Lower than 15 W(without HDD)

    Net Weight

    1.77 kg (3.90 lb)

    Gross Weight

    2.94 kg (6.48 lb)

    Product Dimensions

    1U, 375.0 mm × 289.4 mm × 53.0 mm (14.76" × 11.39" × 2.09") (W × D × H)

    Packaging Dimensions

    433.0 mm × 141.0 mm × 366.0 mm (17.05" × 5.55" × 14.41") (W × D × H)

    Operating Temperature

    –10 °C to +55 °C (14 °F to +131 °F)

    Operating Humidity

    10%–90% (RH)

    Installation

    Desktop

    Certifications

    CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B
