System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

AI

AI by Recorder

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; AcuPick; WizSeek; Texted-Defined Alarming

AI by Camera

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; heat map; PPE detection; AcuPick

AcuPick Performance of AI by Recorder (1080P) (Number of Channels)

Xinghan Large-Scale AI Models enabled：8 channels
Xinghan Large-Scale AI Models disabled：16 channels

AcuPick Performance of AI by Camera (1080P) (Number of Channels)

All channels (36 targets/s)

WizSeek

Performance

1. Compatible with cameras that support AcuPick, it can meet full-channel WizSeek.
2. Compatible with normal cameras, after enabling AcuPick by NVR, it can offer up to 8-channel WizSeek.
3. Modeling capability: up to 432,000 targets per day.

Search Language

English; TradChinese; Korean

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Xinghan Large-Scale AI Models enabled：16 channels, 10 IVS rules for each channel
Xinghan Large-Scale AI Models disabled：32 channels, 10 IVS rules for each channel

Perimeter Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

Face Detection

Face Attributes

6 attributes

Face Detection Performance of AI by Recorder (Number of Channels)

Xinghan Large-Scale AI Models enabled：8 channels (up to 12 face images/s each channel)
Xinghan Large-Scale AI Models disabled：16 channels (up to 12 face images/s each channel)

Face Detection Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

Face Recognition

Face Database Capacity

Up to 20 face databases with 200,000 images, with a total capacity of 44 G.

Face Recognition Performance of AI by Recorder (Number of Channels)

32-channel FD (by camera) + FR (by recorder),image stream: 32 face images/s
Xinghan Large-Scale AI Models enabled：8-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s
Xinghan Large-Scale AI Models disabled：16-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s

Face Recognition Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

SMD

SMD Plus by Recorder

Xinghan Large-Scale AI Models enabled：Not support
Xinghan Large-Scale AI Models disabled：32 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD by Camera

All channels (64 targets/s)

Video Metadata

Metadata Performance of AI by Recorder (Number of Channels)

Xinghan Large-Scale AI Models enabled：8 channels, 23 attributes extraction.
Xinghan Large-Scale AI Models disabled：16 channels, 23 attributes extraction.

Metadata Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

People Attributes

9 human body attributes

Motor Vehicle Attributes

9 attributes

Non-motor Vehicle Attributes

4 attributes

Vehicle License Plate Comparison

ANPR by Camera (Number of Channels)

All channels (32 targets/s)

License Plate Database Capacity

1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist

Audio and Video

Access Channel

32 channels

Network Bandwidth

AI disabled: 512 Mbps incoming, 512 Mbps recording and 384 Mbps outgoing
AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing

Resolution

32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF

Decoding Capability

AI disabled: 2-channel 32 MP@30 fps; 3-channel 24 MP@30 fps; 5-channel 16 MP@30 fps; 6-channel 12 MP@30 fps; 10-channel 8 MP@30 fps; 13-channel 6 MP@30 fps; 16-channel 5 MP@30 fps; 20-channel 4 MP@30 fps; 32-channel 1080p@30 fps
AI enabled: 1-channel 32 MP@30 fps; 1-channel 24 MP@30 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 24-channel 1080p@30 fps; 32-channel 720p@30 fps

Video Output

2 VGA, 2 HDMI
VGA:1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 7680×4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Heterogeneous video source output for HDMI1 and HDMI2
Simultaneous video source output for VGA1 and HDMI1
Simultaneous video source output for VGA2 and HDMI2

Multi-screen Display

Main screen: 1/4/8/9/16/25/36
Sub screen: 1/4/8/9/16

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha

Compression Standard

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Audio Compression

G.711a; G.711u; PCM; G726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); ISCSI

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 24.12(Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome; Firefox; IE

Network Mode

Multi-address; load balance; fault tolerance

Recording Playback

Multi-channel Playback

Up to 16 channels

Record Mode

General; motion detection; intelligent; alarm; POS

Backup Method

USB device and network

Playback Mode

Instant playback; general playback; event playback; tag playback; smart playback

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm

Anomaly Alarm

Error (no disk, disk error, low space, low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; camera offline; audio detection

Intelligent Alarm

Face detection; face recognition; video metadata (human, motor vehicle, and non-motor vehicle); perimeter protection; license plate comparison

Alarm Linkage

Record; snapshot (panoramic); local alarm output; IPC external alarm output; audio; buzzer; log, preset; email

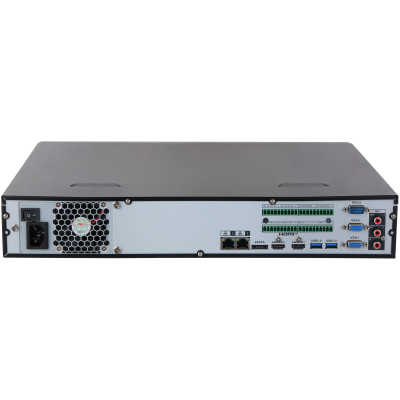

Port

Audio Input

1-channel RCA

Audio Output

2-channel RCA

Alarm Input

16 channels

Alarm Output

6 channels (1-channel 12 V 1 A output）

Disk Interface

4 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.

eSATA

1

RS-232

1

RS-485

1 (half-duplex serial communication)

USB

3 (1 front USB 2.0 port, 2 rear USB 3.0 ports)

HDMI

2

Network Port

2 (10/100/1000 Mbps Ethernet port, RJ-45)

General

Power Supply

100–240 VAC, 50-60 Hz

Power Consumption

<18 W (without HDD)

Net Weight

4.37 kg (9.63 lb)

Gross Weight

6.50 kg (14.33 lb)

Product Dimensions

440.0 mm × 411.5 mm × 76.0 mm (17.32" × 16.20" × 2.99") (W × D × H)

Packaging Dimensions

529.0 mm × 500.0 mm × 211.0 mm (20.83" × 19.69" × 8.31") (W ×D × H)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH), non-condensing

Certifications

Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
