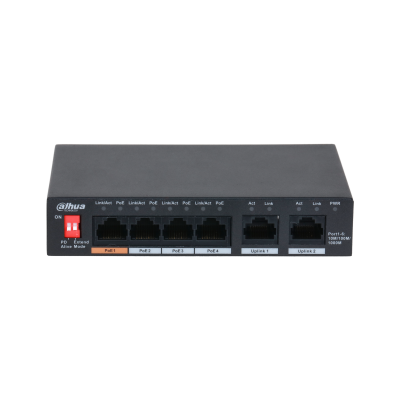

PFS3006-4GT-60

6-Port Unmanaged Desktop Switch with 4-Port PoE

* The parameters and datasheets below can only be applied to V2.0 (version 2.0)

> Intelligent PoE

> Hi-PoE 60W (orange port)

> Long distance PoE

> PoE watchdog

> All-giga ports · Wide working temperature


  • Specifications
  • Accessories
  • Download
  • Hardware Feature

    Ethernet Port

    Port1-4: 4 × RJ-45 10/100/1000M (PoE)

    Port5-6: 2 × RJ-45 10/100/1000M (uplink)

    PoE Power Consumption

    Port1≤ 60 W (Hi-PoE)

    Port2-4 ≤30 W

    Total≤60 W

    Power Consumption

    Idling: 0.96 W

    Full load: 60 W

    Standard

    IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

    PoE

    PoE Protocol

    IEEE802.3af/ IEEE802.3at/ Hi-PoE

    Power Supply Pin

    1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

    Long Distance

    250 m long distance PoE transmission

    PoE Power Management

    Yes

    PoE Watchdog

    Yes

    Performance

    Switching Capacity

    14 Gbps

    Packet Forwarding Rate

    8.928 Mbps

    Packet Buffer Memory

    1 Mbit

    MAC Address Table

    2 K

    Flow Control

    Enable by default

    Working Temperature

    –10 °C to 55 °C (+14°F to +131°F)

    Application Humidity

    5%–95% (RH)

    General

    Power Input

    48 V - 57 V DC

    Lighting Protection

    Common mode: 4 kV

    Differential mode: 2 kV

    ESD Protection

    Air discharge: 8 kV

    Contact discharge: 6 kV

    Wall-mount Installation

    Yes

    Anti-theft Lock Hole

    Yes

    Weight

    0.30 kg (0.64 lb)

    Dimension

    130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02")

    Transmission Performance:

    Switch power supply voltage 53V.

    CAT5E/CAT6. Max. DC resistance < 10Ω/100m

    Cable(m)

    Load Capacity(W)

    Bandwidth(Mbps)

    IEEE802.3bt 90W

    100

    71.3

    100

    150

    62

    10

    200

    51

    10

    250

    40

    10

    Hi-PoE 60W

    100

    53

    100

    150

    50

    10

    200

    47

    10

    250

    37

    10

    IEEE802.3at 30W

    100

    25.5

    100

    150

    25.5

    10

    200

    25.5

    10

    250

    25.5

    10

    Note: Data from this table was collected by Dahua test lab and is for reference only . If there is inconsistency between field application and the table, the field result shall prevail.
