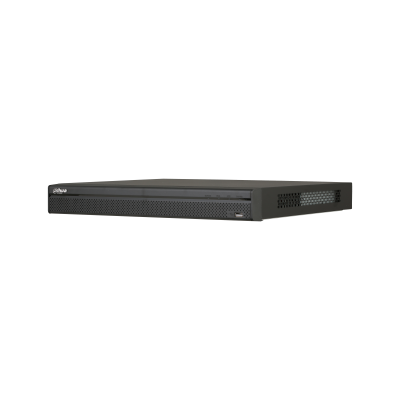

NVR5208/16-8P-4KS2E

8/16 Channel 1U 2HDDs 8PoE 4K & H.265 Pro Network Video Recorder

> 8/16-channel IP video access

> Smart H.265+/Smart H.264+/H.265/H.264/MJPEG; H.265 auto switch

> Max 320 Mbps incoming bandwidth

> Up to 24MP resolution for live view and playback

> 1-channel fisheye dewarping (AI by NVR)

> AI by Camera: Perimeter protection; face detection and recognition; SMD Plus; video metadata; ANPR; people counting; stereo analysis; crowd distribution; heat map

> Support IPC UPnP, 8 PoE ports


  • Specifications
  • Accessories
  • Download
  • System

    Main Processor

    Industrial embedded micro-processor

    Operating System

    Embedded Linux

    Operation Interface

    Web; local GUI

    Perimeter Protection by Camera

    Performance

    8/16 channels

    AI Search

    Search for pictures by channel, time and event type

    Face Recognition by Camera

    Performance

    8/14 channels

    Face Attributes

    6 attributes: Gender; age; glasses; expression; mouth mask; beard

    AI Search

    Search for pictures by channel, time and face attributes

    SMD Plus by Camera

    Performance

    8/16 channels

    AI Search

    Search by target classification (human, vehicle)

    Video Metadata by Camera

    Performance

    8/16 channels

    Human Body

    Top; top color; bottom; bottom color; hat; bag; gender; age; umbrella

    Vehicle

    Plate No.; type; color; vehicle type; logo; plate color; ornament; calling; seatbelt; region

    Non-motor Vehicle

    Type; color; number of passengers; helmet

    AI Search

    Supports searching for target video by metadata

    ANPR by Camera

    Performance

    4 channels

    Stereo Analysis by Camera

    Performance

    8/16 channels

    AI Search

    Search by target classification (fall detection; people approach detection; people No. exception detection; people staying detection; violence detection)

    Video

    Access Channel

    8/16

    Network Bandwidth

    320 Mbps for access, 320 Mbps for storage and 320 Mbps for forwarding

    Resolution

    12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more

    Decoding Capability

    16-channel@1080P (30 fps)

    Video Output

    HDMI1: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
    VGA1: 1920 × 1080; 1280 × 1024; 1280 × 720

    Multi-screen Display

    8-channel: 1/4/8/9
    16-channel: 1/4/8/9/16

    Third Party Camera Access

    Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more

    Compression

    Video

    Smart H.265+; Smart H.264+; H.265; H.264; MJPEG

    Audio

    PCM; G.711A; G.711U; G.726

    Network

    Network Protocol

    HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, and more.) ; P2P

    Mobile Phone Access

    Android; iOS

    Interoperability

    ONVIF (profile T/S/G); CGI; SDK

    Browser

    Chrome; IE9 or later; Firefox

    Record Playback

    Multi-channel Playback

    8-channel: 1/4/9

    16-channel: 1/4/9/16

    Record Mode

    Manual; schedule (general; MD; alarm; MD & alarm; intelligent; POS)

    Storage Method

    Local HDD and network

    Backup

    USB device

    Playback Function

    1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
    2. Full screen; backup (cut/file) ; partially enlarge; audio on/off

    Storage

    Disk Group

    Yes

    Alarm

    General Alarm

    Motion detection; privacy masking; video loss; local alarm; PIR alarm; IPC alarm

    Anomaly Alarm

    Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly

    Intelligent Alarm

    Perimeter protection; face detection; face recognition; SMD; video metadata (human; motor-vehicle; non-motor vehicle) ; ANPR; people counting; stereo analysis; crowd distribution;

    heat map

    Alarm Linkage

    Record; snapshot; IPC external alarm output; buzzer; log; preset; email

    External Port

    Audio Input

    1 channel, RCA connector

    Audio Output

    1 channel, RCA connector, which supports voice intercom output

    HDD

    2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature

    Alarm Input

    4 channels

    Alarm Output

    2 channels

    RS-232

    1 channel, used to debug and pass through serial data

    RS-485

    1 channel, used to control PTZ, and it supports multiple protocols

    USB

    1 front USB 2.0 port, 1 rear USB 3.0 port

    HDMI

    1

    VGA

    1

    Network

    1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port

    PoE

    8 ports support ePoE & EoC

    General Parameter

    Power Supply

    Single, 100V–240V AC, 50 Hz–60 Hz

    Power Consumption

    NVR: < 15.2W (without HDD)
    PoE: Max 25.5W for single port
    130W total rated power, 80% control for protection

    Net Weight

    2.6 kg (5.7 lb) (without HDD)

    Gross Weight

    4 kg (8.8 lb) (without HDD)

    Product Dimensions

    375.0 mm × 327.4 mm × 53.0mm (14.8" × 12.9" × 2.1")

    Package Dimensions

    429 mm × 137 mm × 360 mm (16.9" × 14.2" × 5.4")

    Operating Temperature

    -10°C to +55°C (+14°F to +131°F)

    Storage Temperature

    0°C to +40°C (+32°F to +104°F)

    Operating Humidity

    10%–93% (RH)

    Storage Humidity

    30%–85% (RH)

    Operating Altitude

    3,000 m (9,843 ft)

    Certifications

    CE: EN55032; EN55024; EN50130-4; EN60950-1
    FCC: Part 15 Subpart B; ANSI C63.4-2014
    UL: UL 60950-1
