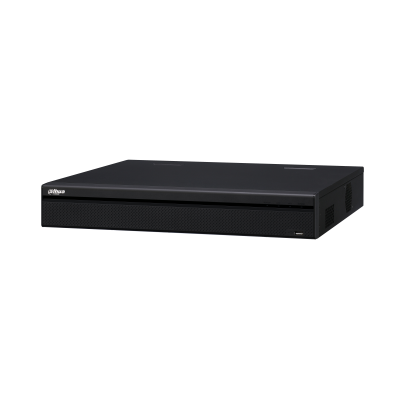

NVR5216/5232-16P-4KS2

16/32 Channel 1U 16PoE 4K&H.265 Pro Network Video Recorder

Posicionamento Recomendado: NVR5216/5232-16P-4KS2E
>H.265/H.264/MJPEG/MPEG4 codec decoding
>Max 320Mbps incoming bandwidth
>Up to 12Mp resolution preview&playback
>HDMI/VGA simultaneous video output
>3D intelligent positioning with Dahua PTZ camera



  • Especificações
  • Acessórios
  • Transferir

  • Seletor de Produtos

    System
    Main ProcessorQuad-core embedded processor
    Operating SystemEmbedded LINUX
    Display
    Interface1 HDMI (1 HDMI up to 3840x2160), 1 VGA
    Resolution3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
    Multi-screen Display16CH: 1/4/8/9/16
    32CH: 1/4/8/9/16/25/36
    OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
    Video Detection and Alarm
    Trigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
    Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
    Alarm input4 Channel, Low Level Effective, Green Terminal Interface
    Relay Output2 Channel, NO/NC Programmable, Green Terminal Interface
    Tracking Trigger EventN/A
    Playback and Backup
    Sync Playback1/4/9/16
    Search ModeTime /Date, Alarm, MD and Exact Search (accurate tosecond)
    Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
    Backup ModeUSB Device/Network
    Storage
    Internal HDD2 SATA III Ports, up to 8TB capacity for each HDD
    HDD ModeSingle
    eSATAN/A
    SASN/A
    Auxiliary Interface
    Front CoverN/A
    USB2 ports (1 Rear USB3.0,1 Front USB2.0)
    RS2321 Port, for PC Communication and Keyboard
    RS4851 Port, for PTZ Control
    Third-party Support
    Third-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more
    Audio and Video
    IP Camera Input16/32 Channel
    Two-way Talk1 Channel Input, 1 Channel Output, RCA
    Recording
    CompressionH.265/H.264/MJPEG/MPEG4
    Resolution12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.
    Record Rate320Mbps
    Bit Rate16kbps~20Mbps for per channel
    Record ModeManual, Schedule(Regular(Continuous), MD, Alarm), Stop
    Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
    Network
    Interface1 RJ-45 port (10/100/1000Mbps)
    Ethernet Port1 Independent 1000Mbps Ethernet Port
    PoE16 ports (IEEE802.3af/at)
    Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P
    Optical Fiber InterfaceN/A
    Max. User Access128 users
    Smart PhoneiPhone, iPad, Android
    InteroperabilityONVIF 2.4, CGI Conformant
    Electrical
    Power SupplySingle, AC 100~240V, 50/60 Hz
    Power Consumption<15.2W (without HDD)
    Environmental
    Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
    Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
    Construction
    Dimensions(W×D×H)1U, 375mm×327.5mm×53mm (14.8" x 12.9" x 2.1")
    Net Weight2.7kg (6.0 lb) (without HDD)
    Gross Weight4kg(8.8 lb)(without HDD)
    Certifications
    CEEN55022, EN55024, EN50130-4, EN60950-1
    FCCPart15 subpartB,ANSI C63.4-2014
    ULUL60950-1+CAN/CSA C22.2 No.60950-1
