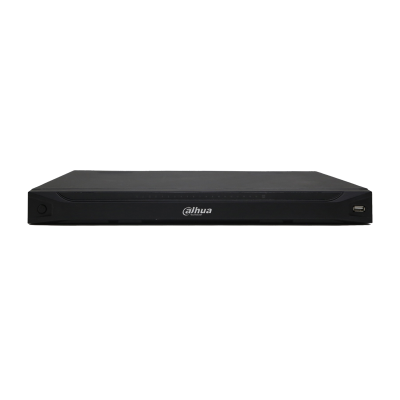

NVD0405DH-4K

Ultra-HD Network Video Decoder

> H.265/H.264/MPEG4 video decoding

> 4ch@12M/4ch@4K/16ch@1080P/64ch@D1 decoding ability

> 1ch HDMI input, 4ch HDMI/VGA/BNC output, HDMI support Ultra HD 4K output

> Support up to 4 video-wall display units

> Support audio, alarm, bi-directional talk, RS485


  • Especificações
  • Acessórios
  • Transferir

  • Seletor de Produtos

    System

    Processor

    Embedded processor

    Operating System

    LINUX

    Performance

    Video Format

    H.265/H.264/MPEG4/ MJPEG

    Audio Format

    PCM/G.711

    Decoding Capacity Separately

    Port 1

    Port 2

    Port 3

    Port 4

    1CH@12MP/1CH@4K/;4CH@1080P/;9CH@720P/ 16CH@D1

    1CH@12MP/1CH@4K/;4CH@1080P/;9CH@720P/ 16CH@D1

    1CH@12MP/1CH@4K/;4CH@1080P/;9CH@720P/ 16CH@D1

    1CH@12MP/1CH@4K/;4CH@1080P/;9CH@720P/ 16CH@D1

    Total Video Decoding

    4CH@12MP/4CH@4K/16CH@1080P/36CH@720P/64CH@D1

    Decoding Resolution

    12MP/8MP/6MP/5MP/3MP/1080P/720P/960H/D1/HD1/2CIF/CIF/QCIF

    Video Frame Rate

    PAL:1-25fps ,NTSC:1-30fps

    Video Output

    4ch@VGA, 4ch@HDMI, 4ch@BNC

    Video Input

    1ch@HDMI

    Audio Output

    HDMI, 4 BNC

    Audio Input

    1ch@HDMI

    Bi-directional Talk

    1 pair, BNC in / BNC out (2Vrms, 10K ohms)

    Alarm Input

    4ch

    Alarm Output

    4ch relay out (30VDC 1A, 125VAC, 0.5A)

    Communication Interface

    1 RJ45 network port (10M/100M/1000M); 1 RS232; RS485

    Others

    Power Supply

    DC12V, 5A

    Power Consumption

    ≤20W

    Working Temperature

    -10℃~+55℃

    Working Humidity

    10% ~ 95%, 86Kpa ~ 106Kpa

    Unit Dimension

    1U, 440×321.8×44mm(17.32 × 12.67 × 1.73 inch), (W*D*H)

    Weight

    3.35Kg(7.39 lb)
