DSM-C01

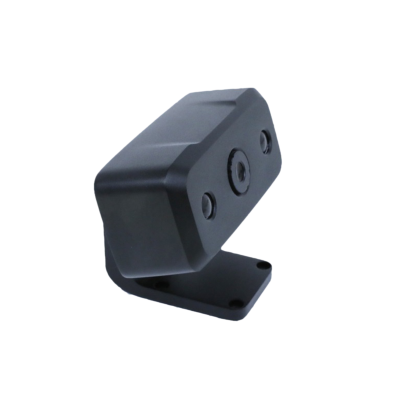

DSM Camera

> CMOS sensor; imaging of high quality.

> Eyes can be recognized when it's under totally dark condition or humans wear sunglasses (not block IR light) with IR fill light.

> Special IR auxiliary illumination design to protect eyes.



  • Thông số kỹ thuật
  • Phụ kiện
  • Tải về

  • Bộ chọn sản phẩm

    Technical Specification

    Sensor

    1/3 inch CMOS

    Effective Pixels

    1280 (H) × 720 (V)

    Electronic Shutter Speed

    PAL: 1/25s–1/100000s
    NTSC: 1/30s–1/100000s

    Frame Rate

    50Hz: 1280 × 720@25fps, 1280 × 720@50fps
    60Hz: 1280 × 720@30fps, 1280 × 720@60fps

    Focal Length

    6 mm

    Gain Control

    Auto

    White Balance

    Auto

    HLC

    Yes

    Digital WDR

    Yes

    2D NR

    Yes

    3D NR

    Yes

    Field of View

    Horizontal: 82°; vertical: 46°

    Iris

    Fixed

    Image Mirror

    Yes

    Anti-flicking

    Yes

    Fill Light

    940 nm IR auxiliary illumination

    Video Output Standard

    HDCVI

    Power Supply

    9V–16V DC

    Power Consumption

    4.2W

    Operating Temperature

    -30°C to +70°C (-22°F to +158°F)

    Operating Humidity

    <95% (non-condensation)

    Camera Dimensions

    (L × W × H)

    82 mm × 45 mm × 5mm (3.23'' × 1.77'' × 0.20'')

    Net Weight

    221 g (0.49 lb)
