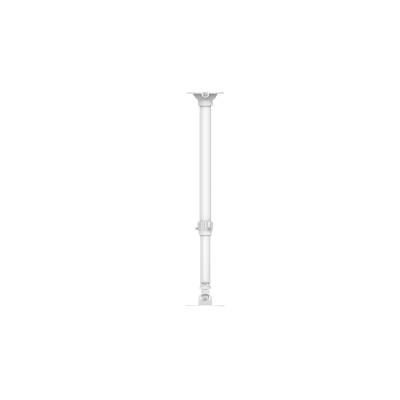

PFB2214C
Ceiling Mount Bracket
> Built of aluminum alloy and SPCC material, it is cost-effective.
> Suitable for a variety of cameras and is elegant.
> Supports being adjusted to multiple angles to suit the needs of various installation locations.
> It can be scaled from 600 mm to 940 mm.
Structure
Casing Material
SPCC; Aluminum alloy
Product Dimensions
Φ126.0 mm × 600.0 mm–Φ126.0 mm × 940.0 mm (Φ4.96" × 23.62"–Φ4.96" × 37.00")
Appearance Color
White
Net Weight
0.91 kg (2.01 lb)
Gross Weight
1.26 kg (2.78 lb)
Load Bearing
2.0 kg (4.41 lb)
Installation
Ceiling mount
Adjustable Inclination Angle
–60° to +60°
Applicable Model
Please see "Camera Accessories Selection"
Packaging Dimensions
596 mm × 168 mm × 175 mm (23.46" × 6.61" × 6.89") (L × W × H)
Environment
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
< 90% (RH)
Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity
10%–90% (RH)
Anti-corrosion Level
Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
