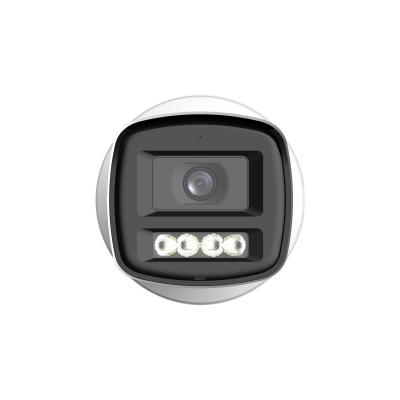

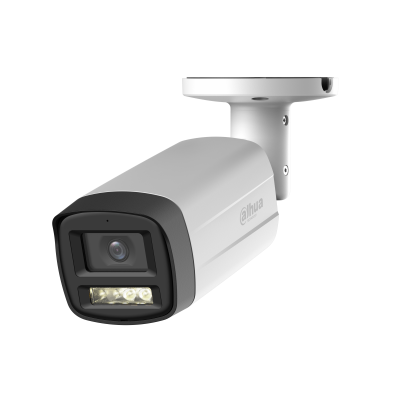

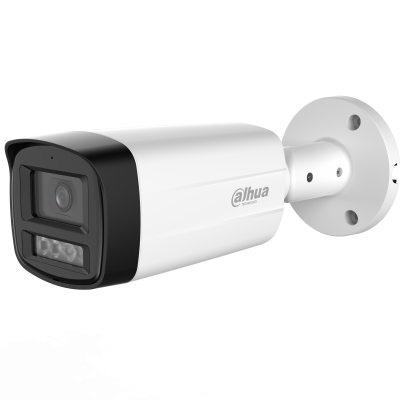

HAC-HFW1801TH-IL-A
4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
> * The parameters and datasheets below can only be applied to 1801-IL-S3 series.
> * In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
> Max. 15 fps@4K.
> Smart Dual Light.
> 80 m illumination distance.
> Super Adapt.
> Built-in Mic.
> 3.6 mm fixed lens (2.8 mm, 6 mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.
Camera
Image Sensor
4K CMOS
Max. Resolution
3840 (H) × 2160 (V)
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 sMin. Illumination
0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)S/N Ratio
>65 dB
Illumination Distance
IR: 80 m (262.47 ft); Warm Light: 80 m (262.47 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
4 (Multi-core light)
Angle Adjustment
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°Lens
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm; 3.6 mm; 6 mm
Max. Aperture
F2.0
Field of View
2.8 mm: H: 105.5°; V: 56.5°; D: 125.3°
3.6 mm: H: 86.8°; V: 44.6°; D: 104.5°
6 mm: H: 54.5°; V: 31.3°; D: 62.3°Iris Control
Fixed
Close Focus Distance
2.8 mm: 1.3 m (4.27 ft)
3.6 mm: 2.1 m (6.89 ft)
6 mm: 3.5 m (11.48 ft)DORI Distance
Lens Detect Observe Recognize Identify 2.8 mm 88.0 m
( 288.71 ft)35.2 m
( 115.49 ft)17.6 m
( 57.74 ft)8.8 m
( 28.87 ft)3.6 mm 113.6 m
( 372.70 ft)45.4 m
( 148.95 ft)22.7 m
( 74.48 ft)11.4 m
( 37.40 ft)6 mm 154.7 m
( 507.55 ft)61.9 m
( 203.08 ft)30.9 m
( 101.38 ft)15.5 m
( 50.85 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. Video
Video Frame Rate
CVI:
PAL: 4K@15 fps;
NTSC: 4K@15 fps;
AHD:
PAL: 4K@15 fps;
NTSC: 4K@15 fps;
TVI:
PAL: 4K@15 fps;
NTSC: 4K@15 fps;
CVBS:
PAL: 960H
NTSC: 960HResolution
4K (3840 × 2160); 960H (960 × 576/960 × 480)
Day/Night
Auto(ICR)/Color/B/W
BLC
BLC; HLC; WDR
WDR
WDR
White Balance
Auto
Gain Control
Auto
Noise Reduction
3D NR
Illumination Mode
Smart IR&WL(CVI,TVI); WL Mode; IR Mode
Mirror
Yes
Certification
Certifications
CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;Audio
Built-in Mic
Yes
Camera Audio
CVI
Pick-up Distance
8 m (26.25 ft)
Port
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Power
Power Supply
12 VDC (±30%)
Power Consumption
Max 7.2 W (12 VDC, IR on)
Environment
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
<95% (RH), non-condensing
Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity
<95% (RH), non-condensing
Protection
IP67
Anti-corrosion Level
Basic Protection
Structure
Casing Material
Metal front cover + plastic rear barrel + metal bracket
Product Dimensions
240.7 mm × 90.7 mm × 90.4 mm (9.48" × 3.57" × 3.56") (L × W × H)
Net Weight
0.42 kg (0.93 lb)
Gross Weight
0.59 kg (1.3 lb)
Installation
Wall mount; ceiling mount; vertical pole mount
