SCP3024A-B new-products

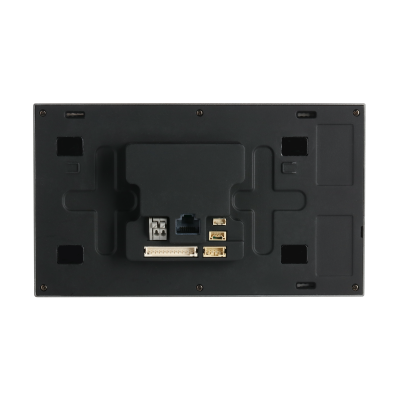

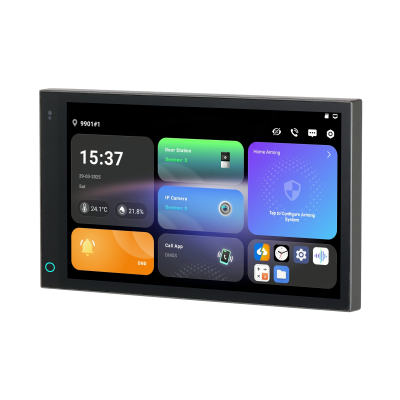

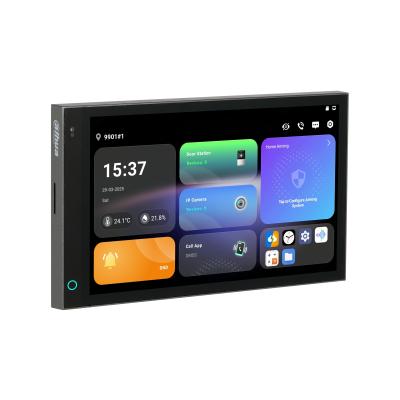

4-Wire Hybrid Smart Control Panel

> Adopts the Android 14 system, offering advanced performance and a user-friendly experience.

> Featuring a sleek full-screen design with an ultra-narrow black border, this device combines style and minimalism for an exceptional visual experience.

> With its 7-inch IPS capacitive touchscreen and multi-touch technology, the screen offers wide viewing angles of up to 80 degrees both horizontally and vertically, significantly enhancing work efficiency and operational flexibility.

> Supports multiple communication modes including IP, Wi-Fi and IP four-wire.

> Includes multi-color indicators that feature the breathing light function to keep you updated on status changes.

> Wakes up automatically when a person approaches for a seamless experience.

> Equipped with a built-in light sensor, the device automatically adjusts the screen brightness for comfortable viewing.

> With its built-in temperature and humidity detectors, you can effortlessly monitor the conditions in your house at any time straight from the home screen.

  • Specifiche
  • Accessori
  • Download
  • selector-pcimg

    Selettore Prodotti

    System

    Main Processor

    Embedded Processor

    Operating System

    Android 14

    Network Protocol

    IPv4;RTSP;UDP;DNS;FTP;RTP;TCP;SIP

    Basic

    Screen Type

    Capacitive Touchscreen

    Display Screen

    7-inch display screen

    Screen Resolution

    1024 (H) × 600 (V)

    Audio Compression

    G.711a; G.711u; PCM

    Audio Input

    1 channel

    Audio Output

    Built-in speaker

    Audio Mode

    Two-way audio

    Audio Enhancement

    Echo suppression/digital noise reduction

    Audio Bit Rate

    16 kHz, 16 bit

    Function

    Communication Mode

    Full digital

    Information Release

    Receive and view the published information from the management center

    Elevator Control

    Residents can call the elevator through this device to their floor.

    Leave Videos

    Yes (SD card is inserted in the indoor monitor or door station)

    DND Mode

    Do not disturb period can be set

    Number of Extensions

    Villa: 1 main VTH and 9 extensions
    Apartment: 1 main VTH and 4 extensions

    Storage

    Supports micro SD card storage (up to 512 GB)

    Network

    Wi-Fi

    Yes

    Wireless Standard

    IEEE 802.11a/b/g/n/ac/ax

    Wireless Frequency Range

    2.4 GHz

    Port

    RS-485

    1

    USB

    1

    Alarm Input

    8 channels

    Alarm Output

    1 channel

    Power Output

    1 port (12 V, 200 mA)

    Door Bell

    Yes (use the alarm input port)

    Network Port

    1 × 10/100 Mbps Ethernet port

    4-wire

    1

    Performance

    Casing Material

    PC + ABS

    General

    Appearance Color

    Gray

    Power Supply

    12 VDC, 2 A
    Standard PoE

    Power Adapter

    Optional

    Installation

    Flush Mount

    Certifications

    CE

    Accessory

    Included: RS-485 and power output cable, bracket and alarm cable.
    Optional: Power cord

    Product Dimensions

    176.2 mm × 103.1 mm × 32.2 mm (6.94" × 4.06" × 1.27") (H × W × D)

    Operating Temperature

    -10 °C to +55 °C (+14 °F to +131 °F)

    Operating Humidity

    10%–95% (RH), non-condensing

    Operating Altitude

    Below 3,000 m (9,842.52 ft)

    Power Consumption

    ≤ 10 W (standby), ≤ 14 W (working)

    Gross Weight

    785 g (1.73 lb)

    Storage Temperature

    0 °C to +40 °C (+32 °F to +104 °F)

    Storage Humidity

    30%–75%

    Operating Environment

    Indoor
