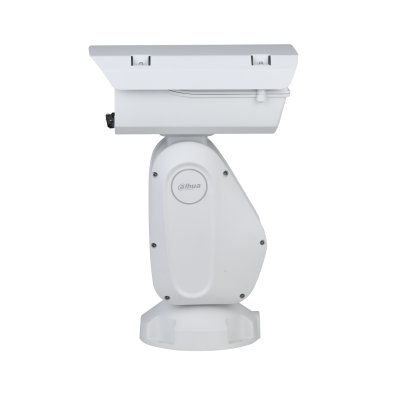

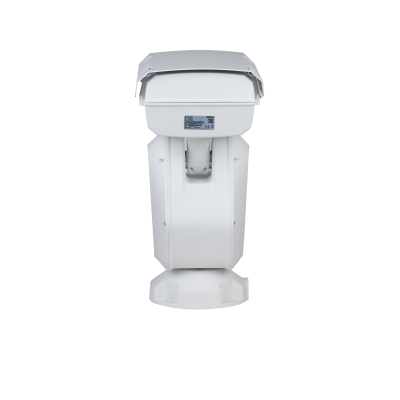

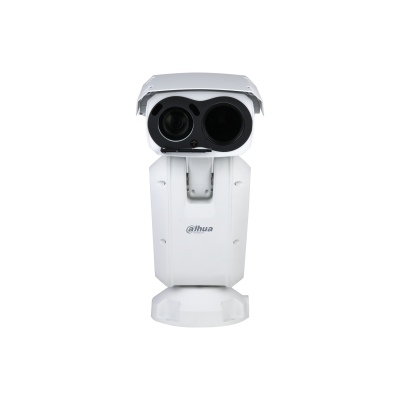

TPC-PT8421A-T

Thermal Network Hybrid Pan & Tilt Camera

> 400 × 300 uncooled VOx thermal sensor technology
> Athermalized lens (thermal), focus-free
> 1/2.8” 2 megapixel progressive scan CMOS
> Support temperature measurement
> Support detection and alarm of fire
> Max 140°/s pan speed, 360° endless pan rotation
> Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
> 7/2 alarm in/out
> Micro SD memory, IP66

  • Specifications
  • Accessories
  • Download
  • Thermal

    Detector Type

    Vanadium Oxide Uncooled Focal Plane Detector

    Max. Resolution

    400 × 300

    Pixel Pitch

    17μm

    Spectral Range

    8μm–14μm

    Thermal Sensitivity (NETD)

    ≤ 40mK@f/1.0

    Focal Length

    25 mm

    35 mm

    50 mm

    100 mm

    Field of View

    H: 15.6° ×

    V: 11.6°

    H: 11.1° ×

    V: 8.3°

    H: 7.8° ×

    V: 5.8°

    H: 3.9° ×

    V: 2.9°

    Effective Distance
    Human (1.8 m × 0.5 m)

    D: 735 m
    R: 189 m
    I: 95 m

    D: 1029 m
    R: 265 m
    I: 132 m

    D: 1471 m
    R: 378 m
    I: 189 m

    D: 2941 m
    R: 756 m
    I: 378 m

    Effective Distance
    Vehicle (4.0 m × 1.4 m)

    D: 1961 m
    R: 490 m
    I: 245 m

    D: 2745 m
    R: 686 m
    I: 343 m

    D: 3922 m
    R: 980 m
    I: 490 m

    D: 7843 m
    R: 1961 m
    I: 980 m

    Focus Mode

    Athermalized

    Aperture

    F1.0

    F1.0

    F1.0

    F1.4

    Digital Detail
    Enhancement (DDE)

    Yes

    Image Stabilization

    Electronic Image Stabilization

    Digital Zoom

    19×

    AGC

    Auto; Manual

    Noise Reduction

    2D NR; 3D NR

    Image Flip

    180°

    Visible

    Image Sensor

    1/2.8 inch CMOS

    Max. Resolution

    1920 × 1080

    Pixel

    2MP

    Electronic Shutter Speed

    1/30000 s–1/3 s

    Min. Illumination

    Color: 0.016 Lux
    Black & white: 0.0175 Lux
    0 Lux (IR on)

    IR Illumination Distance

    100 m

    IR Illuminator On/Off Control

    Auto; Manual

    Focal Length

    6.6 mm–330 mm

    Aperture

    F1.8–F6.5

    Field of View

    H: 42.34°–1.10°; V: 24.68°–0.62°; D: 48.06°–1.27°

    Focus Mode

    Auto; Semi-Auto; Manual

    Close Focus Distance

    1.2 m (3.94 ft)

    Iris Control

    Auto; Manual

    Day/Night

    Auto (ICR); Color/B/W

    BLC

    Yes

    WDR

    120 dB

    HLC

    Yes

    White Balance

    Auto/Manual/Indoor/Outdoor/Tracking/Sodium lamp/Street lamp/Natural

    AGC

    Auto; Manual

    Noise Reduction

    2D NR; 3D NR

    S/N Ratio

    ≥ 55 dB

    Region of Interest (RoI)

    Yes

    Defog

    Optical Defog

    Image Stabilization

    Optical Image Stabilization

    Optical Zoom

    50×

    Digital Zoom

    16×

    Image Flip

    180°

    Exposure Compensation

    Yes

    PTZ

    Pan/Tilt Range

    Pan: 0°–360° endless; Tilt: -45°–+90°

    Manual Control Speed

    Pan: 0.1°–140°/s; Tilt: 0.1°–50°/s

    Preset Speed

    Pan: 0.1°–140°/s; Tilt: 0.1°–50°/s

    Presets

    300

    Tour

    8

    Pattern

    5

    Scan

    5

    Power-off Memory

    Yes

    Privacy Masking

    4 areas

    Idle Motion

    Preset/Tour/Pattern/Scan

    Protocol

    DH-SD, Pelco-P/D (Auto Recognition)

    Intelligence

    Advanced Intelligence

    Fire Detection & Alarm
    Cold & Hot Spot Trace

    Tripwire & Intrusion
    Human & Vehicle Classification
    Auto Tracking

    Temperature Measurement

    Temperature Range

    Low Temperature Mode: -20°C to +150°C (-4°F to +302°F)
    High Temperature Mode: 0°C to +550°C (+34°F to +1022°F)

    Temperature Accuracy

    Max (±2°C, ±2%)
    Operating Temperature: -20°C to +60°C (-4°F to +140°F)

    Temperature Mode

    Spot: 12
    Line: 12
    Area: 12
    Support 12 rules simultaneously

    Video and Audio

    Video Compression

    H.265/H.264M/H.264H/H.264B/MJEPG

    Resolution

    Thermal:
    Main Stream: SXGA (1280 × 1024)/960P (1280 × 960)/720P (1280 × 720)/400 × 300, 1280 × 960 by default
    Sub Stream: 640 × 512/640 × 480/400 × 300, 400 × 300 by default
    Visual:
    Main Stream: 1080P (1920 × 1080)/720P (1280 × 720)/704 × 576, 1920 × 1080 by default
    Sub Stream: 704 × 576/352 × 288, 352 × 288 by default

    Frame Rate

    Thermal(50Hz):
    Main Stream: 1fps–25fps, 25fps by default; sub stream: 1fps–25fps, 15fps by default
    Visual(50Hz):
    Main Stream: 1fps–25fps, 25fps by default; sub stream: 1fps–25fps, 15fps by default

    Thermal(60Hz):

    Main Stream: 1fps–30fps, 30fps by default; sub stream: 1fps–30fps, 15fps by default

    Visual(60Hz):

    Main Stream: 1fps–30fps, 30fps by default; sub stream: 1fps–30fps, 15fps by default

    Audio Compression

    G.711a; G.711mu; PCM

    Environment

    Protocol

    HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

    Edge Storage

    FTP; Micro SD card (256G)

    Interoperability

    ONVIF; CGI; DAHUA SDK

    Browser

    IE: IE9 and the later(Edge not support)
    Google: 42 and the earlier
    Firefox: 52 and the earlier

    User/Host

    20

    Security

    Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

    Management Software

    Smart PSS, DSS, DMSS

    Certification

    Certifications

    CE:
    EN 55032:2015;
    EN 61000-3-2:2014;
    EN 61000-3-3:2013;
    EN 50130-4:2011/A1:2014;
    EN 55024:2010/A1:2015;
    EN 55035:2017;
    FCC: FCC Part 15 SubpartB 2019

    Port

    Video Interface

    1 port (BNC, 1.0V[p-p], 75Ω)

    Network

    1 10M/100M Ethernet port (RJ-45)

    Alarm Input

    7

    Alarm Output

    2

    Audio Input

    1

    Audio Output

    1

    RS-485

    1 pair

    Power

    Power Supply

    30V–48V DC

    Power Consumption

    Basic: 37W
    Max: 52W ( IR on, heater off)
    Max: 65W ( IR on, heater on)

    Environmet

    Operating Temperature

    -40°C to +70°C (-40°F to +158°F)

    Operating Humidity

    ≤ 95%

    Protection

    IP66, anti-surge 6KV, anti-elctrostatic 8KV (touched by objects), anti-elctrostatic 15KV (air)

    Structure

    Product Dimensions (L × W × H)

    502.8 mm × 248.4 mm × 344.6 mm (19.80" × 9.78" × 13.57")

    Packaging Dimensions

    715 mm × 615 mm × 402 mm (28.15" × 24.21" × 15.83")

    Net Weight

    ≤ 15 kg (33.07 lb)

    Gross Weight

    ≤ 40 kg (88.18 lb)
