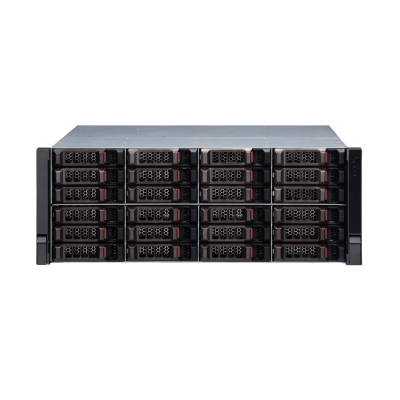

ESS3124S-JR

24 HDDs SAS Storage Cabinet

>Controller architecture, Modular design, reliable and Easy-maintainable
>Support HDDs hot-swap, non-stop running when replace the HDDs
>Redundant fans and redundant power supply, keep 7x24-hour uninterrupted running
>Support expansion device cascade
>Chassis design conform to SBB, motherboard, chassis, power supply and HDD all support hot-swappable
>Support 8T HDD
>24 SATA hot-swappable slot
>All modular hardware design
>Single Controller
>2 SAS interfaces
>1 console port
>19U standard rack-mounted





  • Spesifikasi
  • Aksesori
  • Unduh
  • Model DH-ESS3124S-JR
    System
    Power supply 500W*2 1+1 redundant, support online replacement
    Fan Redundant two-ball bearing fans, MTBF>100,000 hours
    Motherboard Serve class(24/7 operation)
    Chassis All self-design, Hot-dip galvanized steel sheet(1.2mm thickened) High-precise aluminum alloy slide Self-patent drawer-type HDD rack, conform to SBB2.0
    User Interface Configuration and application upgrades through WEB GUI
    HDD management
    Hard disk 24 HDDs, support SAS, SATA, support 6T HDD, support 2.5 inch HDD
    HDD install Independent HDD holder, support hot-swap
    HDD Hot Standby Support global HDD Hot Standby, exclusive HDD Hot Standby
    Specification
    Power supply AC 100V~240V ±10%  60Hz/50Hz
    Power Consumption <500W(include HDD)
    Dimension(W×D×H) 446mm×175mm×495mm
    Mounting 19 feet standard rack-mounted
    Weight(exclude HDD) 25.54kg
    Environment
    Working temperature 0℃~40℃
