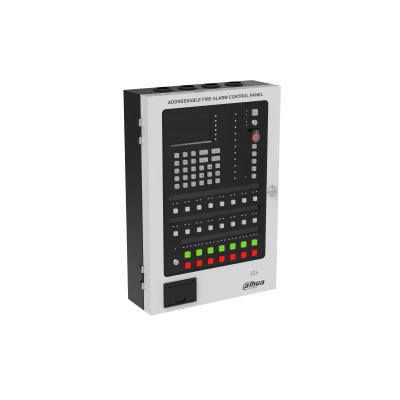

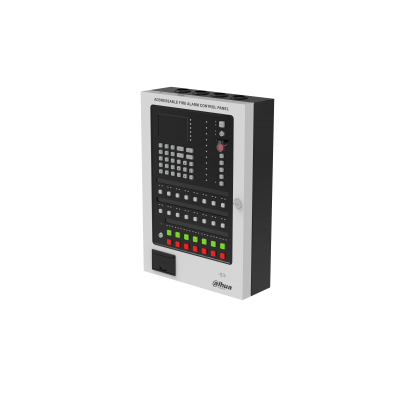

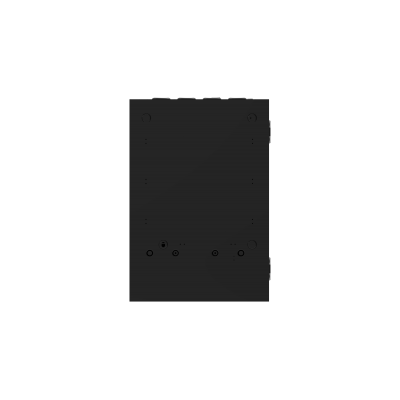

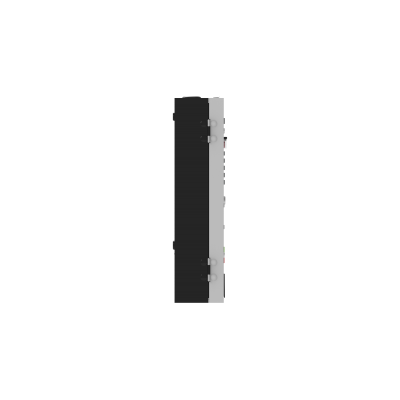

HY-1022R new-products

Addressable Control Panel

> Class A Topology: Reduce wiring costs and enhance circuit stability.
> Two-Wire, Polarity-Free Communication: The system uses a two-wire, polarity-free technology, eliminating the need for an external power source. This enhances reliability, simplifies wiring, reduces costs, and facilitates maintenance.
> User-Friendly Display: The 4.3-inch LCD screen (480 × 272) offers an intuitive interface for complete system setup without external tools.
> Extended Event Logging: Historical events are securely saved and can be queried and printed by time and type.
> Intelligent Power Management: Automatic switching between main and backup power ensures a stable supply, enhancing system reliability.
> Comprehensive Protection: Includes short circuit, open circuit, and overcurrent protection for stable operation.


  • Caractéristiques
  • Accessoires
  • Téléchargement
  • selector-pcimg

    Sélecteur de produits

    Control Panel Specification

    Working Voltage

    16V DC–28V DC

    System Capacity

    Max. 254 devices for one loop

    Main Power

    AC90-240V/50Hz, 60Hz

    Backup Power

    2×12V/5Ah lead-acid battery

    Fire Alarm Terminal

    NO/NC

    Fire Fault Terminal

    NO/NC

    Communication Distance

    Max. 1500m

    Max Cascade

    128 Panels By RS-485

    Cable Specs

    2×1.5 mm²

    Display

    480 × 272 4.3’’ LCD screen

    Printer (optional)

    Micro thermal printer

    Dimensions

    333.0 mm×115.0 mm×480.0 mm (13.11" × 4.53" × 18.90")

    Operating Temperature

    –10°C to +40°C (+14°F to +104°F)

    Operating Humidity

    ≤ 95% RH (no condensation)

    Protection Grade

    IP30

    Weight

    7 kg

    10 kg (with 2 batteries)

    Compliance Standard

    EN54-2, EN54-4

    System Specification

    Loop Number

    1 loop for DHI-HY-1022(R)
    2 loops for DHI-HY-1025(R)

    Topology Mode

    Class A for DHI-HY-1022R and DHI-HY-1025R
    Class B for DHI-HY-1022 and DHI-HY-1025

    Loop Capability

    Max. 254 sensors and modules for each loop

    Optional Buit-in Micro Thermal Printer

    Option 1: With printer by default
    Option 2: Without printer by default

    Simulated Zone

    Every 32 addresses form a zone
    Applicable only to panels with a printer

    Panel Cascading

    Max. 128 panels to cascade

    Solution Verification

    With the help of Dahua Fire (Wisualarm) Presale Tool
    Performance Limitations
    Communication Distance
    Required Battery Specifications

    Configurable Alarm Linkage

    With the help of ControlConfig Tool

    Solution

    Online Solution: Wisualarm Cloud Platform
    Local Solution: DSS Pro Platform V8.5-V8.7 (Server is required)

    Compatible Cable Specifications

    2X1.5mm² /2X16AWG

    Communication Distance

    1500m (standard) - 3000m (extendable)

    Telephone&Broadcast System

    Optional peripheral system
