HAC-D1A21-U new-products

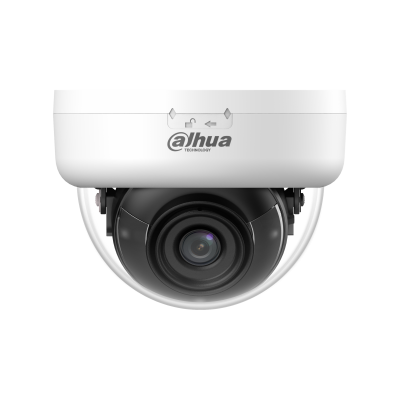

2MP IR HDCVI Fixed-focal Dome Camera

> Max. 30 fps@1080p.

> Smart IR Illumination.

> 25 m illumination distance.

> 3.6 mm fixed lens (2.8 mm optional).

> CVI/CVBS/AHD/TVI switchable.

> 12V DC.

  • Caractéristiques
  • Accessoires
  • Téléchargement
  • selector-pcimg

    Sélecteur de produits

    Camera

    Image Sensor

    2 MP CMOS

    Max. Resolution

    1920 (H) × 1080 (V)

    Scanning System

    Progressive

    Electronic Shutter Speed

    PAL: 1/25 s–1/100,000 s
    NTSC: 1/30 s–1/100,000 s

    Min. Illumination

    0.02 lux@F2.0 (Color, 30 IRE)
    0.002 lux@F2.0 (B/W, 30 IRE)
    0 lux (Illuminator on)

    S/N Ratio

    >65 dB

    Illumination Distance

    IR: 25 m (82.02 ft)

    Illuminator On/Off Control

    Auto/Manual

    Illuminator Number

    3 (IR light)

    Angle Adjustment

    Pan: 0°–355°
    Tilt: 0°–75°
    Rotation: 0°–355°

    Lens

    Lens Type

    Fixed-focal

    Lens Mount

    M12

    Focal Length

    2.8 mm; 3.6 mm

    Max. Aperture

    F2.0

    Field of View

    2.8 mm: H: 100°; V: 54°; D: 117°
    3.6 mm: H: 80°; V: 43°; D: 94°

    Close Focus Distance

    2.8 mm: 0.5 m (1.64 ft)
    3.6 mm: 0.8 m (2.62 ft)

    DORI Distance

    Lens Detect Observe Recognize Identify
    2.8 mm 44.7 m
    ( 146.65 ft)     		17.9 m
    ( 58.73 ft)     		8.9 m
    ( 29.20 ft)     		4.5 m

    ( 14.76 ft)
    3.6 mm 55.0 m
    ( 180.45 ft)     		22.0 m
    ( 72.18 ft)     		11.0 m
    ( 36.09 ft)     		5.5 m

    ( 18.04 ft)
    *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

    Video

    Video Frame Rate

    CVI:
    PAL: 1080p@25 fps
    NTSC: 1080p@30 fps
    AHD:
    PAL: 1080p@25 fps
    NTSC: 1080p@30 fps
    TVI:
    PAL: 1080p@25 fps
    NTSC: 1080p@30 fps
    CVBS:
    PAL: 960H
    NTSC: 960H

    Resolution

    1080p (1920 × 1080); 960H (960 × 576/960 × 480)

    Day/Night

    Auto(ICR)/Color/B/W

    BLC

    BLC; HLC; DWDR

    WDR

    DWDR

    White Balance

    Auto;Area white balance

    Gain Control

    Auto/Manual

    Noise Reduction

    2D NR

    Illumination Mode

    Smart IR

    Mirror

    Yes

    Privacy Masking

    Off/On (8 areas, rectangle)

    Certification

    Certifications

    CE-LVD: EN 62368-1
    CE-EMC: EN 55032; EN 55035

    Port

    Video Output

    Video output choices of CVI/TVI/AHD/CVBS by one BNC port

    Power

    Power Supply

    12 VDC (±30%)

    Power Consumption

    Max 2.4 W (12 VDC, IR on)

    Environment

    Operating Temperature

    –40 °C to +60 °C (–40 °F to +140 °F)

    Operating Humidity

    <95% (RH), non-condensing

    Storage Temperature

    –40 °C to +60 °C (–40 °F to +140 °F)

    Storage Humidity

    <95% (RH), non-condensing

    Anti-corrosion Level

    Basic Protection
    *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.

    Structure

    Casing Material

    Plastic

    Product Dimensions

    Φ99.1 mm × 74.1 mm (Φ3.90" × 2.92")

    Net Weight

    0.17 kg (0.37 lb)

    Gross Weight

    0.27 kg (0.60 lb)

    Installation

    Wall mount; ceiling mount; vertical pole mount
