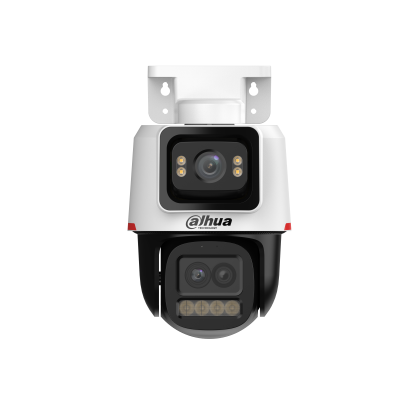

IPC-PTS2449C-4E3Z-S-PV-PRO
4MP+2MP WizColor Vari-focal Network PT Camera
>1/1.8" 4Megapixel CMOS and 1/2.8" 2Megapixel CMOS
>WizColor Technology
>Max. 25/30 fps@4MP and Max. 25/30 fps@2MP
>6x Hybrid Zoom
>H.265 Encoding
>SMD 3.0
>Perimeter Protection
>Two-way Talk
>Auto Tracking Lite
>Tour
Camera
Image Sensor
Fixed Lens: 1/1.8" CMOS
PT Lens: 1/2.8" CMOS
Pixel
Fixed Lens: 4 MP
PT Lens: 2 MP
Max. Resolution
Fixed Lens: 2688 (H) × 1520 (V)
PT Lens: 1920 (H) × 1080 (V)
ROM
256 MB
RAM
512 MB
Electronic Shutter Speed
1 s–1/100,000 s
Scanning System
Progressive
Min. Illumination
Fixed Lens:
0.0005 lux@F1.0 (Color, 30 IRE)
0 lux (Illuminator on)
PT Lens:
0.0005 lux@F1.0(Color, 30 IRE)
0 lux (Illuminator on)
Illumination Distance
Fixed Lens: 2.8 mm
PT Lens: 3.6 mm; 8.4 mm: Fixed Lens: 30 m (98.43 ft) (Warm light)
PT Lens: 50 m (164.04 ft) (Warm light)
Illuminator On/Off Control
Fixed Lens: Manual; Auto; Off
PT Lens: Manual; Auto; Off
Illuminator Number
Fixed Lens: 4 (Warm light)
PT Lens: 4 (Warm light)
Lens
Focal Length
Fixed Lens: 2.8 mm
PT Lens: 3.6 mm; 8.4 mm
Max. Aperture
Fixed Lens: F1.0
PT Lens: 3.6 mm: F1.0; 8.4 mm: F1.0
Field of View
Fixed Lens: 2.8 mm
PT Lens: 3.6 mm; 8.4 mm: Fixed Lens: H:112 °; V: 60°; D: 134°
PT Lens: H: 81.5° – 15.1°; V: 44.3° – 8.4°; D: 96.3° – 17.88°
Hybrid Zoom
6×
Close Focus Distance
Fixed Lens: 2.8 mm
PT Lens: 3.6 mm; 8.4 mm: Fixed Lens: 1.8 m (5.91 ft)
PT Lens: 3.6 mm: 1.7 m (5.58 ft); 8.4 mm: 6 m (19.69 ft)
Iris Control
Fixed Lens: Fixed Iris
PT Lens: Fixed Iris
DORI Distance
Lens
Detect
Observe
Recognize
Identify
Fixed Lens: 2.8 mm
PT Lens: 3.6 mm; 8.4 mm
120 m
( 126.71 ft)
47.4 m
( 50.07 ft)
24 m
( 25.33 ft)
12 m
( 12.66 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. PTZ
Pan/Tilt Range
Fixed Lens: Pan: 0° to 285°; Tilt: -7° to +20° (manual)
PT Lens: Pan: 0° to 350°; Tilt: 0° to +90° (Electric)
Manual Control Speed
Pan: 40°/s; Tilt: 40°/s
Preset Speed
Pan: 40°/s; Tilt: 40°/s
Preset
80
Tour
8 (up to 6 presets per tour; the stay duration for each preset is 60 to 360 sec and tour interval is 900 to 3,600 sec)
Power-off Memory
Yes
Idle Motion
Preset;Tour;home position(only supports setting on DMSS)
PTZ Locked
YES
Smart Event
IVS
Tripwire; Intrusion
Human Detection
Yes
Vehicle Detection
Yes
Intelligence
Smart Tracking
Auto Tracking Lite; Linkage Tracking Lite
SMD
SMD 3.0
Active Deterrence
Light Warning
Warm light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low
Sound Warning
Offers 3 sound alarm. Sound can be set from 0%–100%. Play times can be set from 1-10.
Video
Video Compression
Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
Streaming Capability
2 streams
Resolution
Fixed Lens: 4M (2688 × 1520); 4M (2560× 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 ×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
PT Lens: 1080p (1920 × 1080); 1.3M (1280 ×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate
Fixed Lens:
Main stream: 4M/3M/1080p/1.3M/720p@(1–25/30 fps)
Sub stream: D1/VGA/CIF@(1–25/30 fps)
PT Lens:
Main stream: 1080p/1.3M/720p@(1–25/30 fps)
Sub stream: D1/VGA/CIF@(1–25/30 fps)
Bit Rate Control
CBR/VBR
Video Bit Rate
Fixed Lens:
H264: 96 kbps–8192 kbps
H265: 38 kbps–8192 kbps
PT Lens:
H264: 64 kbps–8192 kbps
H265: 25 kbps–7424 kbps
Day/Night
Fixed Lens: Color
PT Lens: Color
BLC
YES
WDR
Fixed Lens: 120dB
PT Lens: DWDR
HLC
YES
White Balance
Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control
Auto; Manual; Gain Priority
Noise Reduction
2D NR; 3D NR
Motion Detection
Yes
Region of Interest (RoI)
Yes
Defog
Fixed Lens: Electronic
PT Lens: Electronic
Image Rotation
180°
S/N Ratio
≥55 dB
Audio
Audio Compression
PCM; G711A; G711Mu
Built-in MIC
Yes
Built-in Speaker
Yes
Network
Network Port
RJ-45 (10/100 Base-T)
Network Protocol
HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;NTP;DHCP;DNS;DDNS;IPv6;SSL;QoS;FTP;ICMP;IGMP;ARP;RTCP;RTP;RTMP
Interoperability
ONVIF (Profile S & Profile G & Profile T);CGI;SDK
Streaming Method
Unicast/Multicast
User/Host
20 (total bandwidth: 64 M)
Storage
Micro SD card (Up to 512 GB); FTP
Browser
IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions
Management Software
DMSS
Mobile Client
iOS;Android
Function
Abnormal Sound Alarm
Yes
Certification
Certifications
CE
Port
Audio Input
1 channel (built-in mic)
Audio Output
1 channel (built-in speaker)
Alarm Linkage
Capture; recording; audio; light
Alarm Event
Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Power
Power Supply
12 VDC, 1.5A ± 25%
PoE（802.3af）
Power Consumption
Basic: 3.9 W
Max. (Basic power consumption + WDR + intelligence on + Warm light on + PTZ operation + Speaker): 12W
Power Adapter
Optional
Environment
Operating Temperature
–30 °C to +55 °C (–22 °F to +131 °F)
Operating Humidity
≤95%
Protection
IP66;TVS 2000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions
191 mm × 130 mm × 216.6 mm (7.52" × 5.12" × 8.53") (L × W × H)
Net Weight
1.1 kg (2.43 lb)
Gross Weight
1.7 kg (3.75 lb)
Filter
Remarks
The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.
