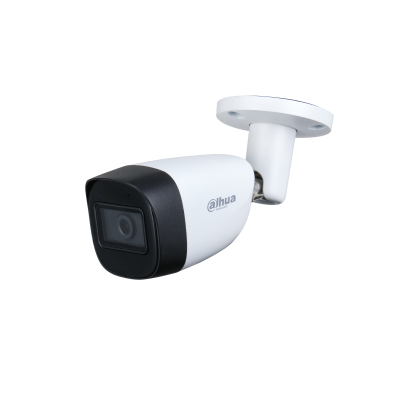

HAC-HFW1400CM(-A) EoL-L

4MP HDCVI IR Bullet Camera

* The parameters and datasheets below can only be applied to 1400-S3 series

> Max 30fps@4MP

> CVI/CVBS/AHD/TVI switchable
> 3.6mm fixed lens (2.8mm optional)
> Max. IR length 30m, Smart IR
> Built-in mic(-A)
> IP67, DC12V


  • Specifications
  • Accessories
  • Download
  • Camera

    Image Sensor

    1/2.7 inch CMOS

    Max. Resolution

    2560(H)×1440(V)

    Pixel

    4MP

    Scanning System

    Progressive

    Electronic Shutter Speed

    PAL: 1/25s–1/100000s
    NTSC: 1/30s–1/100000s

    S/N Ratio

    >65dB

    Min. Illumination

    0.02Lux/F2.0, 30IRE, 0Lux IR on

    Illumination Distance

    30 m (98.4 ft)

    Illuminator On/Off Control

    Auto; manual

    Illuminator Number

    3

    Pan/Tilt/Rotation Range

    Pan: 0°–360°
    Tilt: 0°–90°
    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed-focal

    Mount Type

    M12

    Focal Length

    2.8 mm; 3.6 mm

    Max. Aperture

    F2.0

    Field of View

    2.8 mm: 125° x 105° x 56°

    (diagonal x horizontal x vertical)
    3.6 mm: 104° x 87° x 47°

    (diagonal x horizontal x vertical)

    Iris Type

    Fixed iris

    Close Focus Distance

    2.8 mm: 0.7m (2.3 ft)

    3.6 mm: 1.1m (3.6 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    2.8 mm

    49.8m (163.4 ft)

    19.9m

    (65.3 ft)

    10m

    (32.8 ft)

    5m

    (16.4 ft)

    3.6 mm

    64m

    (210.0 ft)

    25.6m

    (84 ft)

    12.8m

    (42 ft)

    6.4m

    (21 ft)

    Video

    Frame Rate

    CVI:

    PAL: 4M@25fps; 1080P@25fps;

    NTSC: 4M@30fps; 1080P@30fps

    AHD:

    PAL: 4M@25fps;

    NTSC: 4M@30fps

    TVI:

    PAL: 4M@25fps;

    NTSC: 4M@30fps

    CVBS:

    PAL: 960H;

    NTSC: 960H

    Resolution

    4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)

    Day/Night

    Auto switch by ICR

    BLC

    BLC/HLC/DWDR

    WDR

    DWDR

    White Balance

    Auto; manual

    Gain Control

    Auto; manual

    Noise Reduction

    2D NR

    Smart IR

    Yes

    Electronic Defog

    Yes

    Mirror

    Off/On

    Privacy Masking

    Off/On (8 area, rectangle)

    Certifications

    Certifications

    CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
    FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
    UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

    Port

    Video Output

    Video output choices of CVI/TVI/AHD/CVBS by one BNC port

    Power

    Power Supply

    12V ±30% DC

    Power Consumption

    Max 3.7W (12V DC, IR on)

    Environment

    Operating Temperature

    -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

    Storage Temperature

    -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

    Protection Grade

    IP67

    Structure

    Casing

    Metal throughout the whole casing

    Camera Dimensions

    166.6mm×69.7mm×70.0mm6.56"×2.75"×2.75"

    Net Weight

    0.33 Kg (0.73 lb)

    Gross Weight

    0.43 Kg (0.95 lb)
