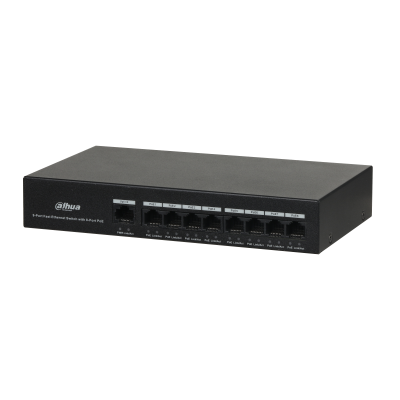

PFS3009-8ET-65

8-Port PoE Switch (Unmanaged)

> Two-layer PoE Ethernet switch
> MAC auto study and aging, MAC address list capacity is 2K
> Support IEEE802.3af, IEEE802.3at standard
> Conform IEEE802.3, IEEE802.3u and IEEE802.3X standards


  • Specifications
  • Accessories
  • Download
  • Technical Specification

    Model

    DH-PFS3009-8ET-65

    Ethernet Port

    1*10/100 Base-T

    8*10/100 Base-T (PoE power supply)

    PoE Power Consumption

    Each power ≤30W, Total≤65W

    PoE Protocol

    IEEE802.3af, IEEE802.3at

    Switching Capacity

    1.8Gbps

    Packet Forwarding Rate

    1.339Mpps

    Packet Buffer Memory

    1Mbit

    MAC Table Size

    2K

    Flow Control

    Enable by default

    Application Humidity

    10%~90%

    Power

    Input AC100~240V

    Lightning Protection

    Common Mode 2KV

    Differential Mode 1KV

    Working Temperature

    -10°C to +55°C (-14°F131°F)

    Weight

    0.7Kg

    Dimension(W×D×H)

    205mm×115mm×35mm
