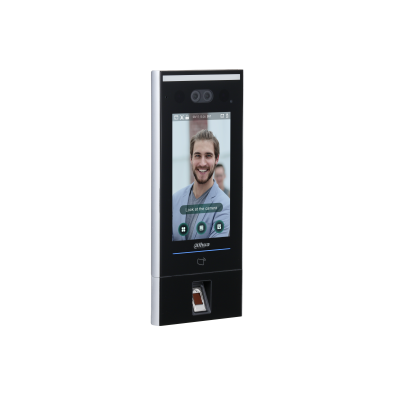

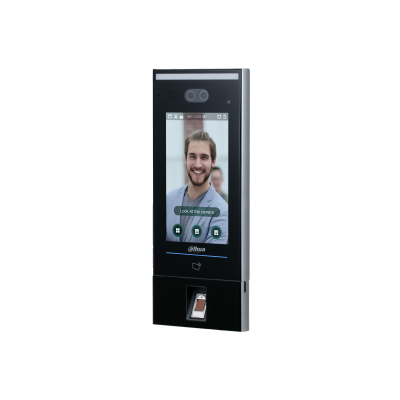

ASI7214X

Face Recognition Access Controller

> 2.5D curved screen
> 7 Inch LCD display with resolution of 1024×600
> 200 MP CMOS, WDR
> Vehicle level LCD whose working temperature is -30°C to 50°C
> IP65 (Silicone sealant is needed. For details, see the quick start guide.)
> Auto fill light reduces light pollution
> Can hold 100,000 users, 100,000 face images,10,000 fingerprints,
> Support face, fingerprint, IC card, password unlock and unlock
> With face detection box; the largest face among faces that appear
> Face-camera distance: 0.3 m–2.0 m; human height: 0.9 m–2.4 m
> With face recognition algorithm, the access controller can recognize
> Support liveness detection
> Face recognition speed: 0.2 s per face
> Accurate recognition in backlight and front light
> Various unlock status display modes protect user privacy
> Support duress alarm, tamper alarm, intrusion alarm, door contact
> Support general users, patrol users, VIP users, guest users, and special


  • Спецификации
  • Аксессуары
  • Загрузить
  • System

    Main Processor

    Embedded Processor

    Internet Protocol

    IPv4, RTSP, RTP, TCP, UDP, P2P

    OSDP Protocol

    Yes

    Interoperability

    ONVIF; CGI

    SDK and API

    Support SDK

    Basic

    Display

    7 inch display

    Screen Type

    Capacitive screen

    Resolution

    600(H)×1024(V)

    Camera

    1/2.8" 2MP CMOS high definition WDR dual camera

    WDR

    120dB

    Light Compensation

    Auto white light
    Auto IR light

    Status Indicator

    1 indicator light. Red: Error; Green: Normal; Blue: Working

    Voice Prompt

    Yes

    Housing Material

    Aluminium alloy/tempered glass/PC

    Function

    Unlock Mode

    Card/Remote/Fingerprint/Password/Face unlock and unlock through their cmbinations

    Card Reading Type

    IC card

    Period List

    128

    Holiday Period

    128

    First-Card Unlock

    Yes

    Remote Verification

    Yes

    Peripheral Card Reader

    1 RS-485, 1 Wiegand

    Multiple Authentication

    Yes

    Real-Time Surveillance

    Yes

    Web Configuration

    Yes

    Performance

    Card Reading Distance

    1cm–3cm

    Face Recognition Range

    Face-camera distance: 0.3 m–2.0 m Human height: 0.9m–2.4 m

    Face Verification Accuracy

    ≥99.5%

    Face Recognition Time

    0.2s

    Fingerprint Sensor Type

    Capacitive

    Fingerprint Verification Mode

    1: N

    Fingerprint Comparison Time

    ≤1.5s

    Capacity

    User Capacity

    100, 000

    Face Image Capacity

    100, 000

    Fingerprint Capacity

    10, 000

    Card Capacity

    100, 000

    Password Capacity

    100, 000

    Record Capacity

    300, 000 records

    Port

    RS-485

    1

    RS-232

    1

    Wiegand

    1 (input or output)

    USB

    2 USB2.0 port

    Ethernet

    1 1000M Ethernet Port
    1 10M/100M Ethernet Port

    Alarm Input

    2 (Switch quantity)

    Alarm Output

    2 (Relay)

    Alarm Linkage

    Yes

    Exit Button

    1

    Door Status Detection

    1

    Lock Control

    1

    Alarm

    Anti-Passback

    Yes

    Tamper

    Yes

    Duress

    Yes

    Door Sensor Timeout

    Yes

    Intrusion

    Yes

    Illegal Card Exceeding Threshold

    Yes

    Duress Fingerprint

    Yes

    General

    Power Supply

    Provided

    Power Supply Mode

    DC 12V 2A

    Protection Grade

    IP65 (Silicone sealant is needed. For details, see the quick start guide.)

    Power Consumption

    24W

    Product Dimensions

    250.6mm×129.0mm×30.5mm(9.87"×5.08"×1.20")

    Packaging Dimensions

    Controller packging: 380mm×235mm×124mm (14.96"×9.25"×4.88")
    Protective case: 494mm×402mm×275mm (19.45"×15.83"×10.83")

    Working Temperature

    -30°C to +50°C (-22°F to +122°F)

    Working Humidity

    0%RH–90%RH (non-condensing)

    Working Environment

    Indoor and outdoor

    Gross Weight

    2.0kg (4.41 lb)

    Installation Method

    Wall mounted

    Certification

    CE/FCC
