HAC-HDW1509T-A-LED-POC

5MP Full-Color HDCVI PoC Eyeball Camera

* The parameters and datasheets below can only be applied to1509-S2 series.

*In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.

> Max 25 fps@5MP (16:9 video output)

> 120 dB true WDR, 3D NR
> 24/7 color imaging
> 40 m illumination distance
> CVI/CVBS/AHD/TVI switchable
> Built-in mic
> 3.6 mm fixed lens (2.8 mm optional)
> IP67, PoC (only CVI)/12 V±30% DC


  • Specifications

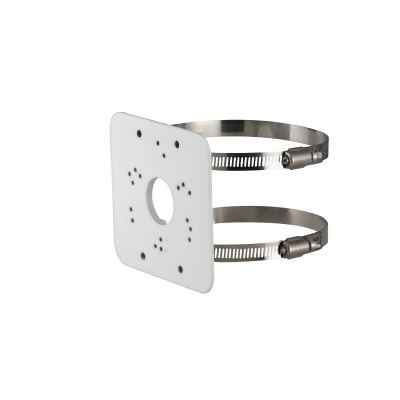

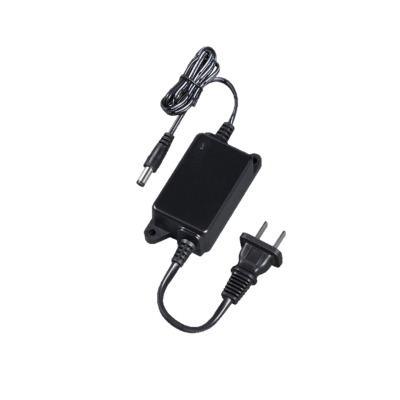

  • Accessories
  • Download
  • selector-pcimg

    Product Selector

    Camera

    Image Sensor

    5MP CMOS

    Max. Resolution

    2880 (H) × 1620 (V)

    Pixel

    5MP

    Scanning System

    Progressive

    Electronic Shutter Speed

    PAL:1/3 s–1/100,000 s

    NTSC:1/4 s–1/100,000 s

    S/N Ratio

    > 65 dB

    Min. Illumination

    0.001 Lux/F1.0, 0 Lux warm light on

    Illumination Distance

    40 m (131.2 ft)

    Illuminator On/Off Control

    Auto; manual

    Illuminator Number

    2

    Pan/Tilt/Rotation Range

    Pan: 0°–360°
    Tilt: 0°–78°
    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed lens

    Mount Type

    M12

    Focal Length

    2.8 mm; 3.6 mm

    Max. Aperture

    F1.0

    Field of View

    2.8 mm: H: 112°; V: 57°; D: 132°
    3.6 mm: H: 88; V: 46°; D: 104°

    Iris Type

    Fixed iris

    Close Focus Distance

    2.8 mm: 2 m (6.56 ft)
    3.6 mm: 2.3 m (7.55 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    2.8 mm

    67.4 m

    (212.3 ft)

    27.0 m

    (88.6 ft)

    13.5 m

    (44.3 ft)

    6.7 m

    (22.0 ft)

    3.6 mm

    80.0 m

    (262.5 ft)

    32.0 m

    (105.0 ft)

    16.0 m

    (52.5 ft)

    8.0 m

    (26.2 ft)

    DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

    Video

    Frame Rate

    CVI:
    PAL: 5M@25 fps; 4M@25 fps;
    NTSC: 5M@25 fps; 4M@30 fps;
    AHD:
    PAL: 4M@25 fps;
    NTSC: 4M@30 fps
    TVI:
    PAL: 4M@25 fps;
    NTSC: 4M@30 fps
    CVBS:
    PAL: 960H;
    NTSC: 960H

    Resolution

    5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480)

    BLC

    BLC/HLC/WDR/HLC-Pro

    WDR

    120 dB

    White Balance

    Auto; Area WB

    Gain Control

    Auto; manual

    Noise Reduction

    3D NR

    Smart Light

    Yes

    Mirror

    Off/On

    Privacy Masking

    Off/On (8 areas, rectangle)

    Certifications

    Certifications

    CE (EN55032, EN55024, EN50130-4,EN60950-1)
    FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
    UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

    Port

    Video Output

    Video output choices of CVI/TVI/AHD/CVBS by one BNC port

    Audio Input

    One channel built-in mic

    Power

    Power Supply

    POC (only CVI)/12 V±30% DC

    Power Consumption

    Max6.4 W (12 V DC, warm light on) PoC (AF)

    Environment

    Operating Temperature

    –40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)

    Storage Temperature

    –40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)

    Protection Grade

    IP67

    Structure

    Casing

    Metal throughout the whole casing

    Camera Dimensions

    φ106.0 mm × 93.6 mm (φ4.17" × 3.69")

    Net Weight

    0.49 Kg (1.08 lb)

    Gross Weight

    0.68 Kg (1.50 lb)
