ICS-D0080E-I1A new-products

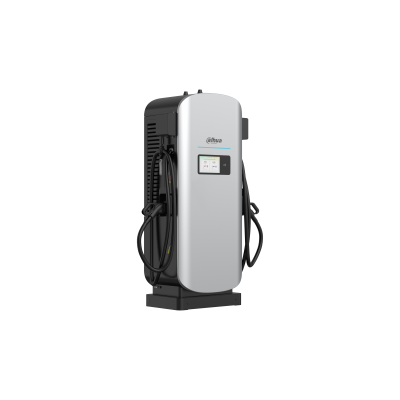

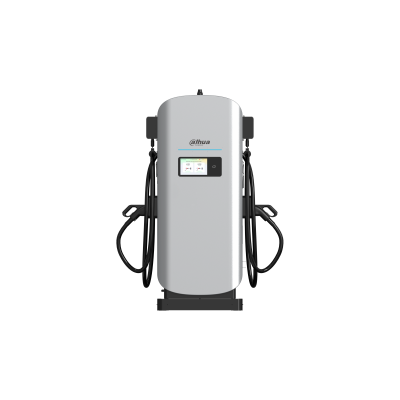

Overseas DH DC Charging Station

>It operates on a three-phase 400 V supply, ensuring efficient charging performance.
>Developed with an elegant silver curved surface and modern design that enhances its aesthetic appeal.
>Charging initiation is convenient, with options to swipe the IC card, scan the QR code, enter a VIN code, or utilize Plug and Play functionality.
>Offers versatile charging capabilities, including single-cable charging and simultaneous dual-cable charging.
>Supports management through a dedicated app, allowing for remote updates and incorporates various protective functions for enhanced security.
>The charger is built to withstand challenging environments, featuring an IP55 and IK10 rating, with the screen area rated at IK08. It is highly suitable for both indoor and outdoor installations.
>Designed to provide a convenient and secure charging experience, whether functioning as a standalone unit or as part of a networked system.


  • Specifications
  • Accessories
  • Download
  • selector-pcimg

    Product Selector

    Electrical

    Rated Input Voltage

    400 VAC

    Max. Output Power

    80 kW

    Maximum Charging Current for Single Connector

    200 A

    Output Voltage Range

    200–1,000 VDC

    Constant Power Range

    300–1,000 VDC

    Max. Charging Current

    267 A

    Harmonic Wave

    ≤ 5%

    Power Factor

    0.99 (Full load)

    Efficiency

    96.8%, the highest efficiency during a full load

    Standby Power Consumption

    ≤30 W

    Output Voltage Error

    ≤ ±0.5%

    Output Current Error

    ≤ ±1%

    Stabilized Voltage Accuracy

    ≤ ±0.5%

    Stabilized Current Accuracy

    ≤ ±1%

    Ripple Peak Value

    ≤ ±1%

    Average Current Imbalance

    ≤ 3%

    Basic

    Charging Mode

    Mode 4

    Charging Port

    2 × CCS2

    Communication Protocol (with Backend)

    OCPP1.6J

    Measurement Accuracy

    Level 1 (Class B)

    Types of Protection

    Protects against input overvoltage, undervoltage, short circuit, input overload, output overvoltage and overtemperature. It also detects insulation issues.

    Cooling Method

    Intelligent air cooling

    Function

    Display Screen Dimensions

    10.1-inch

    Startup Method

    Scan a QR code, enter a VIN code, swipe the IC card, utilize Plug and Play or enter the password.

    Network Connection Method

    LAN, 4G, Wi-Fi

    Bluetooth

    Yes

    Status Indicator Light

    Blue: Charging

    Yellow: Device updating

    Green: Standby

    Red: Fault

    Structure

    Accessory

    Includes a cable organizer and MID meter.

    Product Dimensions

    944 mm × 561.5 mm × 1,945 mm (37.17" × 22.11" × 76.57") (W × D × H)

    Packaging Dimensions

    1,098 mm × 1,098 mm × 2,147 mm (43.23" × 43.23" × 84.53") (W × D × H)

    Net Weight

    202 kg (445.34 lb)

    Gross Weight

    222 kg (489.44 lb)

    Cable Length

    5 m (16.40 ft). This length includes the length of the connector.

    Environment

    Operating Temperature

    –30 °C to +55 °C (–22 °F to +131 °F)

    Performance might be derated of temperatures exceed 50°C.

    Storage Temperature

    –40 °C to +70 °C (–40 °F to +158 °F)

    Operating Humidity

    5%–95% (RH), non-condensing

    Operating Altitude

    ≤2,000 m (6561.68 ft)

    Protection

    IP55

    Vandal-proof Rating

    The EV Charger is IK10, and its screen is IK08.

    Working Noise

    ≤ 65 dB

    External Port

    Power Supply System Type

    3P + N + PE

    Certification

    Certifications

    IEC 61851-1; IEC 61851-23; IEC 61851-21-2
