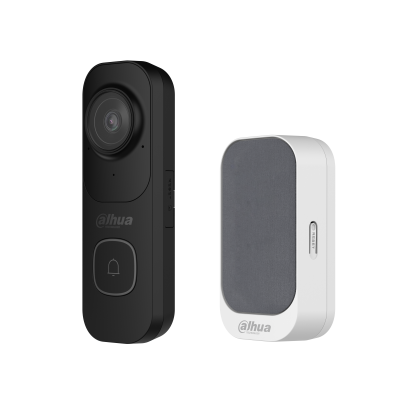

VDKP01-BG
2K Wired Video Doorbell with Wi-Fi chime
The WiFi Video Doorbell is a new addition to the Dahua Wireless series. It not only delivers 2K high-resolution imagery, but also captures more details than conventional fixed lenses through its ultra-wide fisheye lens. The doorbell features passive IR motion detection and transmits videos and audios to mobile devices, allowing you to remotely perform visual confirmation and communicate with visitors. Furthermore, it is compatible with 2.4 GHz Wi-Fi 6 networks, enhancing its connectivity options.
The Wireless Chime is an indoor device that chimes when your videodoorbell is pressed. Through the DMSS app, the ringtones and volumecan be customized to your ideal settings and it can be paired with eitherof the two models of Dahua video doorbells. Highly convenient, it canalso be bound to multiple video doorbells at the same time, so youcan place multiple Wireless Chime around your home to always hearwhenever someone presses your video doorbell. Whether you’re in thekitchen, office or bedroom, you’ll never miss a thing if your phone is outof reach.
Camera
Image Sensor
1/3" CMOS
Max. Resolution
2560 (H) × 1440 (V)
Illumination Distance
Up to 10 m (32.81 ft) (IR)
Illuminator Number
2 (IR LED)
Lens Type
Fixed-focal
Focal Length
2.3 mm
Max. Aperture
F2.2
Field of View
H: 120°; V: 66°; D: 143°
Intelligence
Human Detection
Yes
Vehicle Detection
Yes
Audio and Video
Video Compression
H.265; H.264; H.264H; H.264B
Video Frame Rate
Main stream: 2560 × 1440@(1–15 fps)/920 × 1080@(1–15 fps)/1280 × 720@(1–15 fps)
Sub stream: 640 × 360@(1–15 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.Video Bit Rate
H.264: 32 kbps–8192 kbps;
H.265: 32 kbps–8192 kbpsDay/Night
Auto(ICR)/Color/B/W
WDR
DWDR
Motion Detection
OFF/ON (4 areas, rectangular)
Image Rotation
0°/180°
Built-in MIC
Yes, built-in Mic
Built-in Speaker
Yes, built-in speaker
Audio Compression
G.711a; G.711Mu; PCM
Network
Wi-Fi
IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm
Wi-Fi Pairing
Bluetooth pairing
Storage
Micro SD card (support max. 256 GB)
Management Software
DMSS
Mobile Client
Android;iOS
General
Certifications
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EUPower Supply
USB (5 VDC±5%, 2 A) or binding post power supply (10–24 VDC/14–24 VAC, 1.0 A).
Power Consumption
Basic: 1.7 W (5 VDC); 2.1 W (10–24 VDC); 2.2 W (14–24VAC, active power)
Max.: 5.3 W (5 VDC); 6.8 W (10–24 VDC); 6.8 W (14–24 VAC, active power) (IR + white light + alarm on)Operating Temperature
–20 °C to +55 °C (–4 °F to +131 °F)
Operating Humidity
≤95% (RH), non-condensing
Protection
IP65
Camera Button
One-click Call Button
Casing Material
Plastic
Product Dimensions
135 mm × 45 mm × 24.2 mm (5.31" × 1.77" × 0.95") (L × W × H)
Net Weight
0.11 kg (0.24 lb)
Audio
Built-in Speaker
Built-in Speaker
Network
Management Software
DMSS
Wi-Fi
IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm
Network Update
Yes
Power
Power Supply
100–240 VAC 50/60 Hz
Power Consumption
< 5 W
Structure
Appearance Color
White Plastic + Grey Cloth
Net Weight
0.1 kg (0.22 lb)
Gross Weight
0.2 kg (0.44 lb)
Casing Material
Plastic + Cloth
Product Dimensions
Bare machine: 96 mm × 50 mm × 30.3 mm (3.78" × 1.97"× 1.19") (L × W × H)
Packaging Dimensions
187 mm × 81 mm × 57 mm (7.36" × 3.19" × 2.24") (L × W × H)
Environment
Operating Temperature
–10 °C to +45 °C (14 °F to +113 °F)
Operating Humidity
20%–95% (RH), non-condensing
Certification
Certifications
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU
