H3I

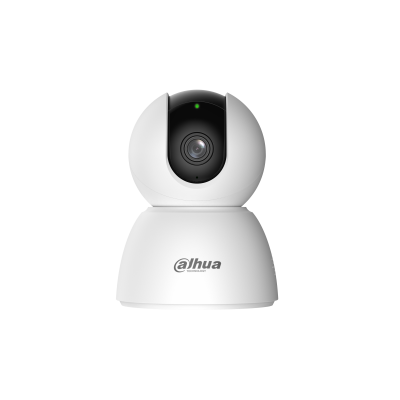

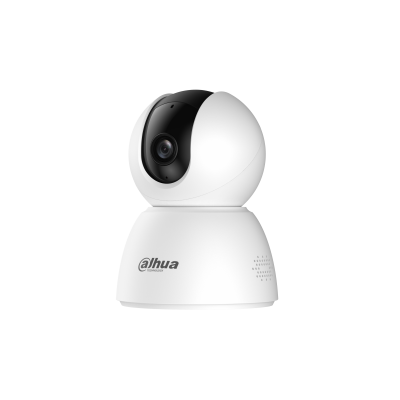

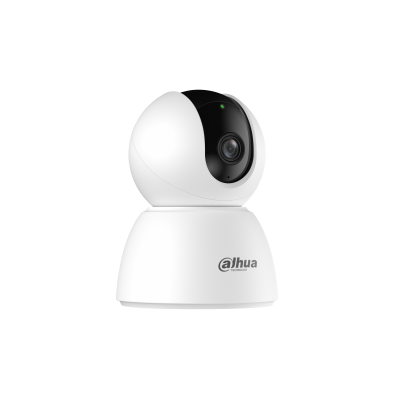

3MP Indoor Fixed-focal Wi-Fi Pan & Tilt Network Camera
Wireless series cameras are not only easy to install and operate, but also perform outstandingly and cost-effective. They provide full coverage of a scene with 3MP resolution, 0° to 355° pan and -5°to 80° tilt. Their powerful functions, such as AI human and auto tracking, assist with the accurate detection and continuous tracking of targets. Information is also synchronously sent to your phone to keep you up-to-date. These cameras are widely used in small and medium-sized scenes such as small-sized retail stores.
Camera
Image Sensor
1/3.2" CMOS
Max. Resolution
2304 (H) × 1296 (V)
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Illumination Distance
Up to 10 m (32.81 ft) (IR)
Illuminator On/Off Control
Auto
Illuminator Number
1 (IR LED)
Angle Adjustment
Pan: 0° to 355°;
Tilt: –5° to 80°Lens
Max. Aperture
F2.0
Field of View
2.8mm H: 81°; V: 44°; D: 95°
3.6mm H: 69°; V: 36°; D: 81°
Intelligence
Human Detection
Yes
Video
Video Compression
H.265
Video Frame Rate
Main stream: 2304 × 1296@15 fps
sub stream: 640 × 360@15 fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.Resolution
3M (2304 × 1296); HD (640 × 360)
Video Bit Rate
H.265: 80 kbps–4096 kbps
Day/Night
Auto(ICR)/Color/B/W
WDR
DWDR
Motion Detection
Yes
Image Rotation
0°/180°
Audio
Built-in MIC
Yes, built-in Mic
Built-in Speaker
Yes, built-in speaker
Audio Compression
G.711a
Network
Wi-Fi
IEEE 802.11b/g/n/ax 2.412-2.472 GHz,2.4G
Storage
Micro SD card (up to 256 GB)
Management Software
DMSS
Mobile Client
iOS;Android
Power
Power Supply
5 VDC
Power Consumption
Basic: 1.9 W;
Max.: 4.5 W (live + IR + PT rotation)Environment
Operating Temperature
–10 °C to +45 °C (+14 °F to +113 °F)
Operating Humidity
≤95% (RH), non-condensing
Structure
Casing Material
Plastic
Product Dimensions
φ90.9mm × 120.8 mm (φ3.58" × 4.76")
Net Weight
370 g (0.81lb)
