Basic

Product Type

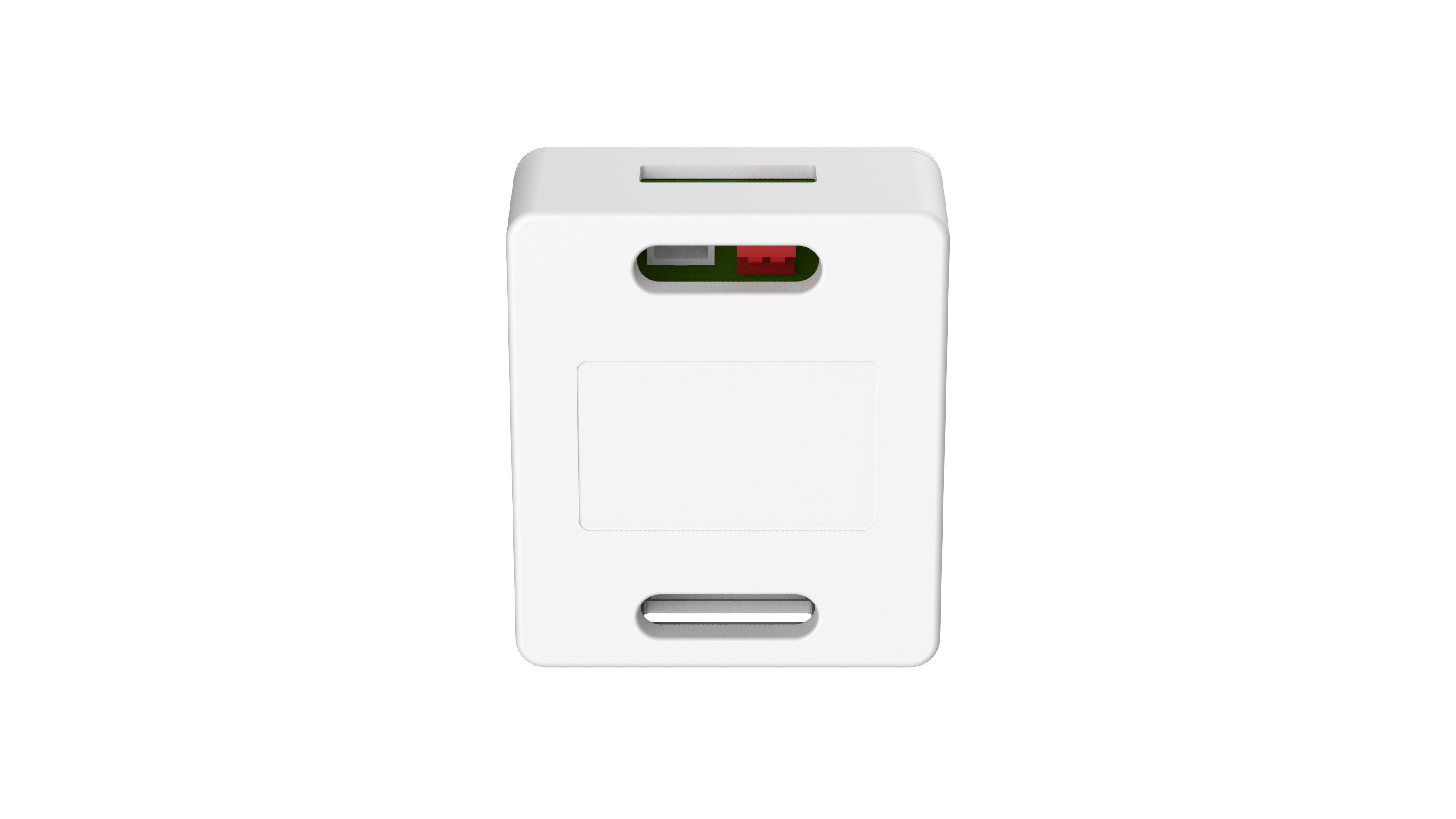

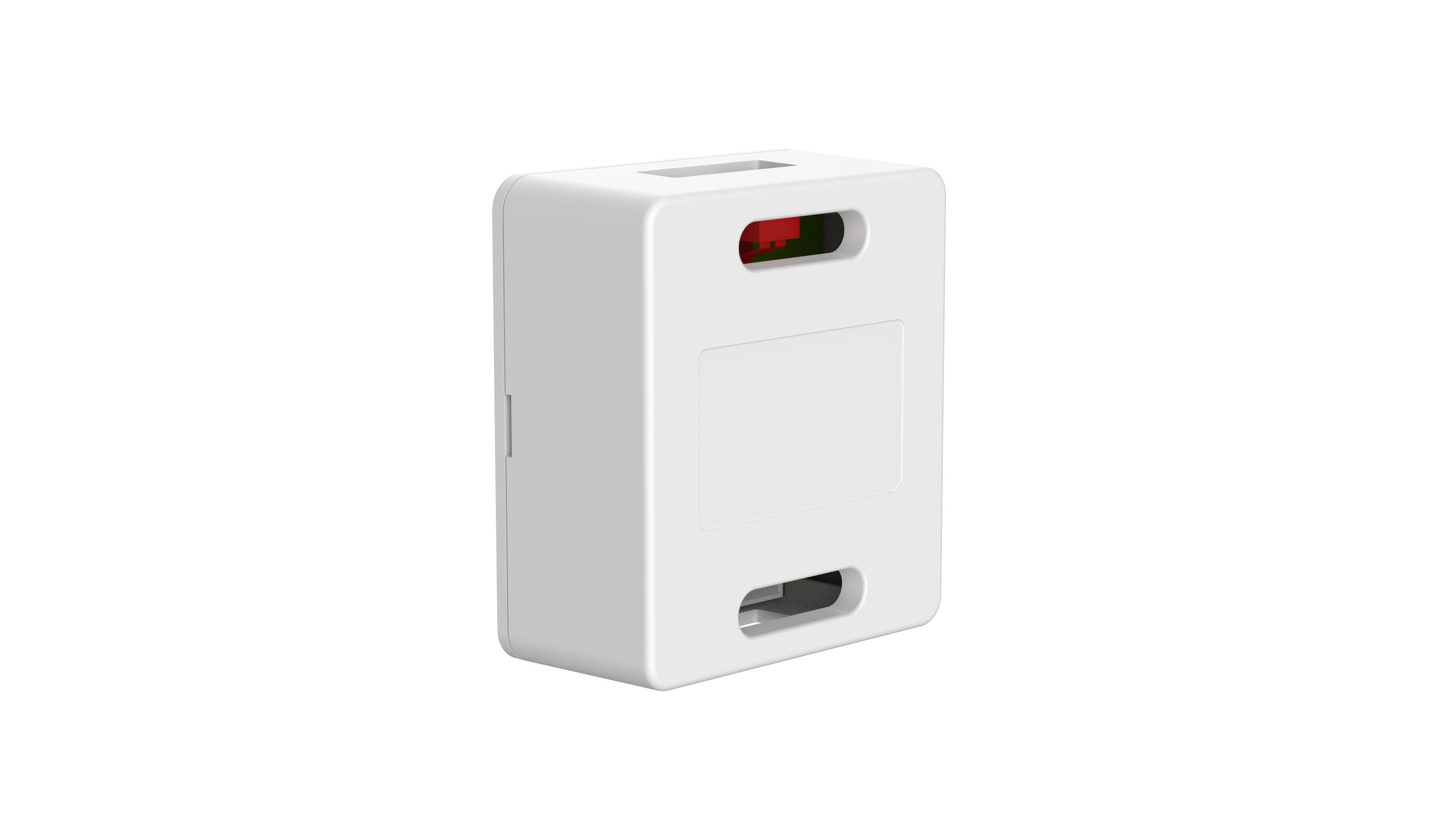

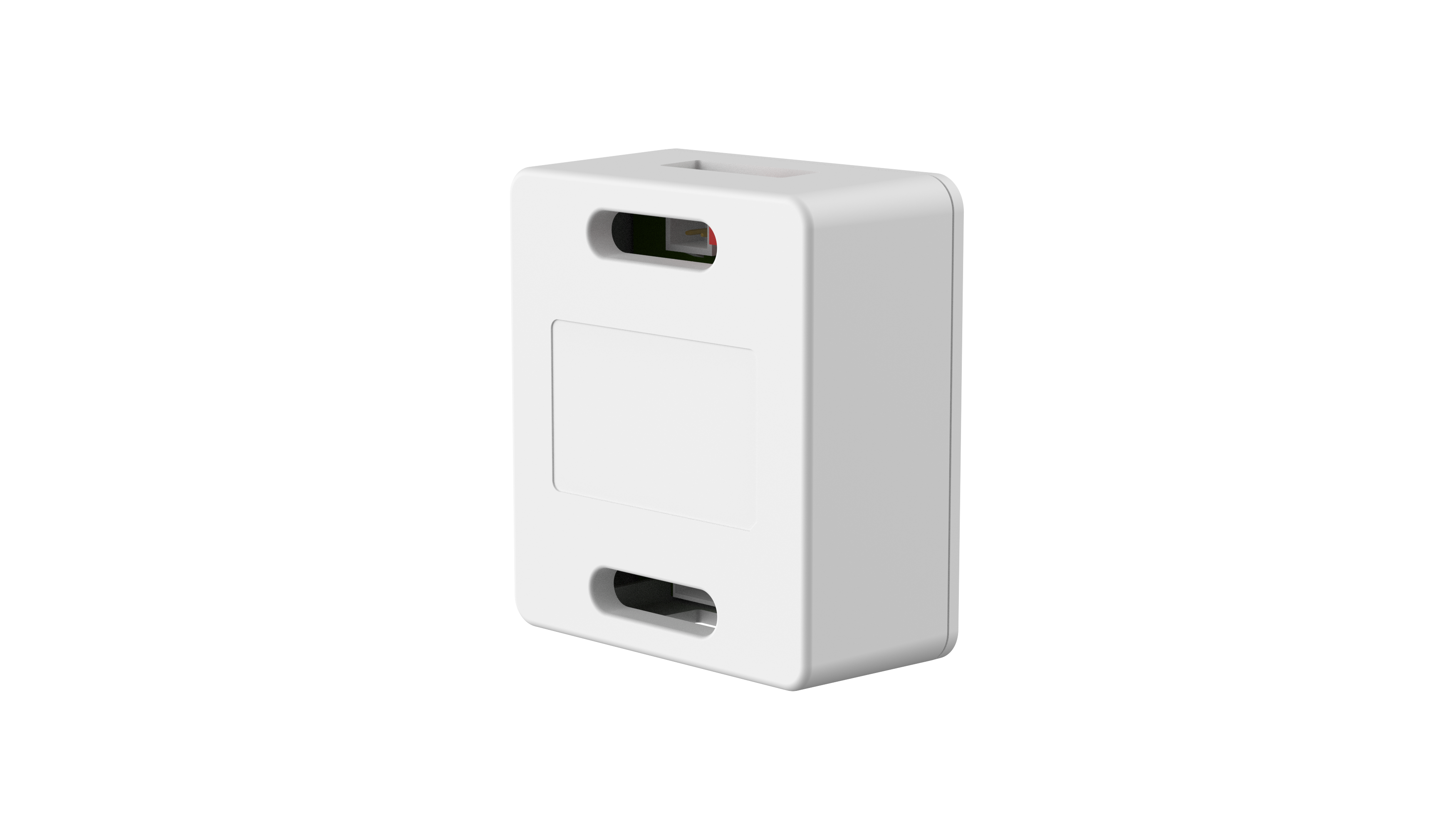

Turnstile remote control

Casing Material

PC + ABS

Surface Treatment

Natural Color Injection molding

Performance

Operating Voltage

12 VDC

Operating Current

100 mA

Receiver Sensitivity

-107 dBm

Transmitter Power (EIRP)

12 dBm

Working Distance

15 m (49.21 ft). It is the maximum distance without any obstacles.

Encryption Mode

AES128

Operating Frequency

433.1 MHz–434.6 MHz

General

Output Port

3 dry contact outputs (relay)

Indicator Light

Flashing Red: Unpairing
Flashing Green: Pairing
Solid Blue: Normal Working Mode

Low Battery Alarm

No

Product Dimensions

55 mm × 49 mm × 24.1 mm (2.17" × 1.93" × 0.95") (L × W × H)

Packaging Dimensions

94 mm × 111 mm × 67 mm (3.70" × 4.37" × 2.64") (L × W × H)

Operating Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Operating Environment

Indoor

Net Weight

38 g (0.08 lb)

Gross Weight

80 g (0.18 lb)

Applicable Product Model

The released ASG series barriers.

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Humidity

40%–65%
