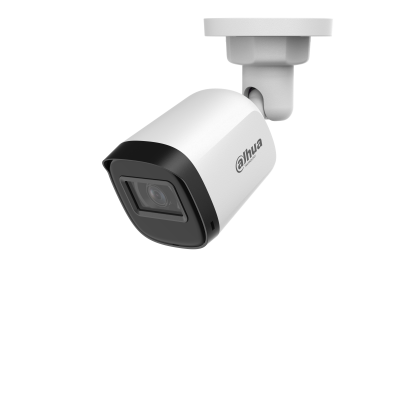

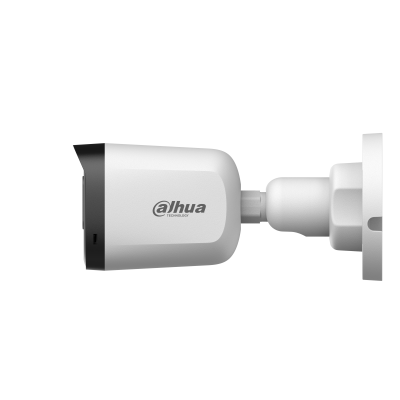

HAC-B1A51-U(-A)
5MP IR HDCVI Fixed-focal Bullet Camera
> * The parameters and datasheets below can only be applied to A51-S3 series.
> Max 25 fps@5MP (16:9 video output)
> Smart IR Illumination.
> 30 m illumination distance.
> Built-in MIC.
> 3.6 mm fixed lens (2.8 mm,6mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.
Camera
Image Sensor
5 MP CMOS
Max. Resolution
2880 (H) × 1620 (V)
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 sMin. Illumination
0.02 lux@F2.0 (Color, 30 IRE)
0.002 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)S/N Ratio
>65 dB
Illumination Distance
IR: 30 m (98.43 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
3 (IR light)
Angle Adjustment
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°Lens
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm; 3.6 mm; 6 mm
Max. Aperture
F2.0
Field of View
2.8 mm: H: 105.5°; V: 56.5°; D: 125.3°
3.6 mm: H: 86°; V: 46.1°; D: 104.3°
6 mm: H: 53.9°; V: 30.7°; D: 62.1°Close Focus Distance
2.8 mm: 1.0 m (3.28 ft)
3.6 mm: 1.4 m (4.59 ft)
6 mm: 2.6 m (8.53 ft)DORI Distance
Lens Detect Observe Recognize Identify 2.8 mm 66.0 m
( 216.54 ft)26.4 m
( 86.61 ft)13.2 m
( 43.31 ft)6.6 m
( 21.65 ft)3.6 mm 79.4 m
( 260.50 ft)31.8 m
( 104.33 ft)15.9 m
( 52.17 ft)7.9 m
( 25.92 ft)6 mm 118 m
( 387.14 ft)47.2 m
( 154.86 ft)23.6 m
( 77.43 ft)11.8 m
( 38.71 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. Video
Video Frame Rate
CVI:
PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 5M 16:9@20 fps
NTSC: 5M 16:9@20 fps
CVBS:
PAL: 960H
NTSC: 960HResolution
5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)
Day/Night
Auto(ICR)/Color/B/W
BLC
BLC; HLC; WDR
WDR
DWDR
White Balance
Auto;Area white balance
Gain Control
Auto
Noise Reduction
2D NR
Illumination Mode
Smart IR
Mirror
Yes
Privacy Masking
Off/On (8 areas, rectangle)
Certification
Certifications
CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;Audio
Built-in Mic
Yes
Camera Audio
CVI; TVI
Pick-up Distance
8 m (26.25 ft)
Port
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Power
Power Supply
12 VDC (±30%)
Power Consumption
Max 3.5 W (12 VDC, IR on)
Environment
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
<95% (RH), non-condensing
Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity
<95% (RH), non-condensing
Protection
IP67
Anti-corrosion Level
Basic Protection
Structure
Casing Material
Plastic
Product Dimensions
146.1 mm × 70.0 mm × 69.8 mm (5.75" × 2.76" × 2.75") (L × W × H)
Net Weight
0.17 kg (0.37 lb)
Gross Weight
0.25 kg (0.55 lb)
Installation
Wall mount; ceiling mount; vertical pole mount
