HAC-T1A51-U(-A) new-products

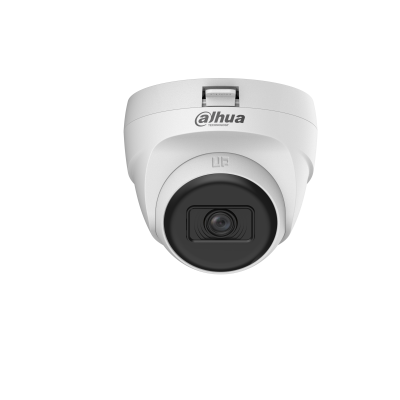

5MP IR HDCVI Fixed-focal Eyeball Camera

> * The parameters and datasheets below can only be applied to A51-S3 series.

> Max 25 fps@5MP (16:9 video output)

> Smart IR Illumination.

> 25 m illumination distance.

> Quick-to-install eyeball saves installation time.

> Built-in MIC.

> 3.6 mm fixed lens (2.8 mm optional).

> CVI/CVBS/AHD/TVI switchable.

  • 仕様
  • アクセサリ
  • ダウンロード
  • selector-pcimg

    製品選択

    Camera

    Image Sensor

    5 MP CMOS

    Max. Resolution

    2880 (H) × 1620 (V)

    Scanning System

    Progressive

    Electronic Shutter Speed

    PAL: 1/25 s–1/100,000 s
    NTSC: 1/30 s–1/100,000 s

    Min. Illumination

    0.02 lux@F2.0 (Color, 30 IRE)
    0.002 lux@F2.0 (B/W, 30 IRE)
    0 lux (Illuminator on)

    S/N Ratio

    >65 dB

    Illumination Distance

    IR: 25 m (82.02 ft)

    Illuminator On/Off Control

    Auto/Manual

    Illuminator Number

    2 (IR light)

    Angle Adjustment

    Pan: 0°–360°
    Tilt: 0°–78°
    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed-focal

    Lens Mount

    M12

    Focal Length

    2.8 mm; 3.6 mm

    Max. Aperture

    F2.0

    Field of View

    2.8 mm: H: 105.5°; V: 56.5°; D: 125.3°
    3.6 mm: H: 86°; V: 46.1°; D: 104.3°

    Close Focus Distance

    2.8 mm: 1.0 m (3.28 ft)
    3.6 mm: 1.4 m (4.59 ft)

    DORI Distance

    Lens Detect Observe Recognize Identify
    2.8 mm 66.0 m
    ( 216.54 ft)     		26.4 m
    ( 86.61 ft)     		13.2 m
    ( 43.31 ft)     		6.6 m

    ( 21.65 ft)
    3.6 mm 79.4 m
    ( 260.50 ft)     		31.8 m
    ( 104.33 ft)     		15.9 m
    ( 52.17 ft)     		7.9 m

    ( 25.92 ft)
    *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

    Video

    Video Frame Rate

    CVI:
    PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps
    NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps
    AHD:
    PAL: 4M@25 fps
    NTSC: 4M@30 fps
    TVI:
    PAL: 5M 16:9@20 fps
    NTSC: 5M 16:9@20 fps
    CVBS:
    PAL: 960H
    NTSC: 960H

    Resolution

    5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)

    Day/Night

    Auto(ICR)/Color/B/W

    BLC

    BLC; HLC; WDR

    WDR

    DWDR

    White Balance

    Auto;Area white balance

    Gain Control

    Auto

    Noise Reduction

    2D NR

    Illumination Mode

    Smart IR

    Mirror

    Yes

    Privacy Masking

    Off/On (8 areas, rectangle)

    Certification

    Certifications

    CE-LVD: EN 62368-1;
    CE-EMC: EN 55032; EN 55035;

    Audio

    Built-in Mic

    Yes

    Camera Audio

    CVI; TVI

    Pick-up Distance

    8 m (26.25 ft)

    Port

    Video Output

    Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

    Power

    Power Supply

    12 VDC (±30%)

    Power Consumption

    Max 2.5 W (12 VDC, IR on)

    Environment

    Operating Temperature

    –40 °C to +60 °C (–40 °F to +140 °F)

    Operating Humidity

    <95% (RH), non-condensing

    Storage Temperature

    –40 °C to +60 °C (–40 °F to +140 °F)

    Storage Humidity

    <95% (RH), non-condensing

    Anti-corrosion Level

    Basic Protection

    Structure

    Casing Material

    Plastic

    Product Dimensions

    Φ85.0 mm × 77.1 mm (Φ3.35" × 3.04")

    Net Weight

    0.13 kg (0.29 lb)

    Gross Weight

    0.19 kg (0.42 lb)

    Installation

    Wall mount; ceiling mount; vertical pole mount
