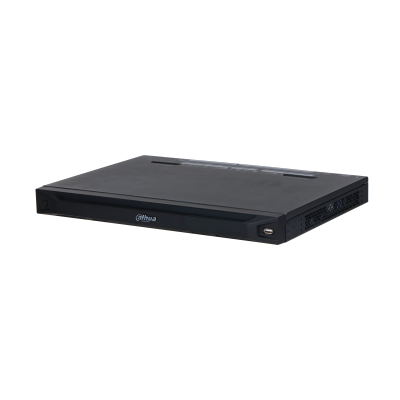

FSU6808U-F

Environment Surveillance Server

> 16 channels of wired zone alarm input and NO/NC detector connection.
> 8 channels of repeater output and forced on/off and auto control.
> 8 channels of local analog input (4–20 mA, 0–5 V); FS accuracy is within 0.5%.
> 8-channel RS-485 data communication port. Alpha channel is supported with a sending/receiving speed of 300 bytes each time.
> Supports 8-ch 1080p or 16-ch 720p digital video connection, and the video overlay function.
> Data and video uploading through TCP/IP and 4G.
> SMS alarm notifications. Up to 5 phone numbers can be set.
> Video overlay: Up to 8 lines can be added with 32 English letters in each line. Each type of data is displayed in a different color. Remote video overlay supports up to 5 lines with 32 English letters per line, and controls IPC OSD color. You can also watch the live view, play back videos, overlay information on snapshots, and switch between 3 OSD types on the web client.
> Supports the alarm filtering function. Filter strategy is customizable to reduce pressure on maintenance.
> Stores up to 50,000 logs, saving logs for alarm events, telemetering data, operation logs, and data/time.
> Local GUI operation.
> High-standard hardware protection technology with surge protection of up to 10 kV, and electrostatic protection that supports up to 8 kV contact discharge, and up to 8 kV of air discharge.


  • Specifications
  • Accessories
  • Download

  • Product Compare

    Input and Output

    Alarm Input

    16

    Alarm Output

    8

    Port

    Network Port

    4 × RJ–45 10/100 M self-adaptive Ethernet port

    Network Mode

    EC25-E:GSM: 900/1800 MHz, WCDMA: B1/B5/B8, LTE-FDD: B1/B3/B5/B7/B8/B20, LTE-TDD: B38/B40/B41
    EC25-AUX: B1/B2/B3/B4/B5/B7/B8/B28/B40

    USB

    1 × USB 2.0 port, connects mouse

    Storage battery

    1 set of storage battery ports

    Analog quantity

    8 channels (4–20 mA or 0–5 V); FS accuracy is within 0.5%

    RS-232

    2 × RS-232 ports, can be used as RS-485.

    HDD Interface

    1 × 3.5-inch built-in SATA hard drive. Up to 10 TB per drive. Used as video storage.

    SD Card

    1 × Micro SD card (32 G) (optional)

    Indicator Light

    5 function indicators (power, status, network, 4G, and disk)

    Button

    1 × reset button

    RS-485

    8 channels. Up to 20-channel detectors of the same type can be connected

    Buzzer

    1 × built-in buzzer

    Audio and Video

    Video Input

    8 × 1080p or 16 × 720p videos

    Video Output

    1 × HDMI output for displaying GUI

    Video Compression

    H.264; H.265; Smart H.265; Smart H.264

    Audio Input

    1 × audio input

    Audio Output

    1 × audio output (used as voice talk as well)

    Two-way Audio

    1 × two-way voice talk

    Voice Broadcast

    Supports audio in MP3, PCM and WAV formats.

    Audio Compression

    G.711A; G.711U; PCM

    Function

    SMS

    SMS alarm

    Auxiliary Power Output

    1 × 12 VDC/2 A power output

    Network Protocol

    PPTP, L2TP, DHCP, UPnP, NTP and other network protocols

    Remote Update

    Web remote update

    Communication Protocol

    Modbus-RTU, Modbus-ASCII, 1363, Modbus-TCP and other peripheral protocols.

    OSD Overlay

    Video overlay: Up to 8 lines can be added with 32 English letters in each line. Each type of data is displayed in a different color. Remote video overlay supports up to 5 lines with 32 English letters per line, and controls IPC OSD color. You can also watch the live view, play back videos, overlay information on snapshots, and switch between 3 OSD types on the web client.

    Video Linkage and Snapshot

    Yes

    High-frequency Alarm Filter

    Yes

    Alarm Linkage Filter

    Yes

    FTP server

    Supports building FTP server to facilitate reading of the device SD card through FTP

    Log

    Supports 50,000 logs, including alarm events, telemetering data, operation logs, and data/time

    Power Failure Protection for Configured Parameters

    Yes

    Search Remote Alarm Event

    Yes

    User Management

    64 remote users

    Access Configuration

    Supports remote web visit, searching for and configuring peripherals, and quick configuration

    VPN Network Configuration

    Layer two tunneling protocol (PPTP and L2TP)

    Function

    Supports alarm output linkage settings

    Language

    English

    General

    Power Consumption

    Idling: 15 W
    Full load: 60 W

    Operating environment

    –10 °C to +55 °C (+14 °F to +131 °F)
    10%–90% (RH)

    Product Dimensions

    440 mm × 312 mm × 42 mm

    (17.32" × 12.28" × 1.65") (L × W × H)

    Packaging Dimensions

    536 mm × 402 mm × 140 mm

    (21.10" × 15.83" × 5.51") (L × W × H)

    Installation

    Wall mount; rack mount

    Net Weight

    3.3 kg (7.28 lb)

    Gross Weight

    5.3 kg (11.68 lb)
