AC27-I720Z

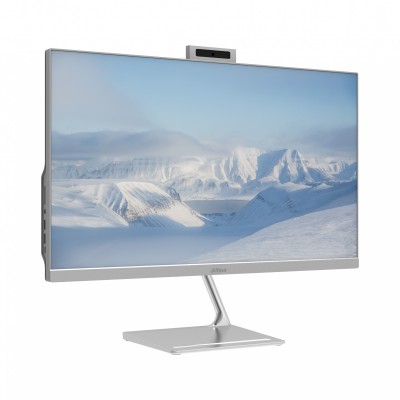

27'' FHD Office computer all-in-one machine
> Light and cost-effective plastic housing;
> Ultra-narrow bezel , elegant appearance, Metal base;
> 178°H/178°V extra-wide viewing angle for overall viewing performance;
> High fidelity digital processing for a brilliant and vivid video;
> Support multiple signal inputs such as HDMI, COM, USB3.0,USB2.0,AUDIO, TYPEC,SD card,Earphone;
> Physical button control mode;
Model
Model
DHI-AC27-I720Z-M8S5
Display
Screen Size
27"
Panel type
IPS
Aspect Ratio
16:9
Resolution
1920x1080
Backlight
LED
Brightness/Luminance
250 cd/㎡
Contrast
1000:1
Display Color
16.7M(8bit)
Viewing Angle(H/V)
178°(H)/178°(V)
Response time(typ.)
14ms
Refresh Rate
60Hz
Signals
Front (side) interface
USB2.0x2, Earphone x1, TYPECx1, SD card slot x1
Bottom interface
HDMI OUTx1,COMx1,USB3.0x4,RJ45 x1,AUDIO OUTx1,
MIC INx1
Speaker
2Wx2
General
Power Supply
19V 6.32A
Consumption (Standard)
120W
Consumption (Standby)
≤0.5W
Net Weight
TBD
Gross Weight
9.5kg(20.9lb)
Wall Mount
100x100mm (4.0"x4.0")
Dimension with stand (W×H×D)
613x365x66.7mm (24.1“x14.4”x2.6”)
Package
663x195x458mm(26.1“x7.7”x18.1“)
Work Environment
Temperature
0℃~40℃ (32°F~104°F)
Humidity
10%~85%
Accessory
Standard
base, power cord/screw, adapter, manual,wireless mouse and keyboard(no bottery)
Certifications
Certifications
TBD
Internal Player
MainBoard
JW H610I Thin Mini-ITX
Chip
Intel H610
Cpu
InteI i7 12700
Memory
DDR4 8G
Hard disk
SSD 512G
Graphics card
Intel integrated graphics
WIFI/ Bluetooth
The Tel2.4ghz /5GHz/802.11a/b/g/n/ac 4.2 standard supports
both IPv6 and 6LoWPAN
LAN
Gigabit Ethernet front-end ports
Video camera
Built-in 500W camera + double label press window type
System
UEFI
Other
The right side of the bottom brightness adjustment, one key screen, one key mute, hand sweep lamp function
