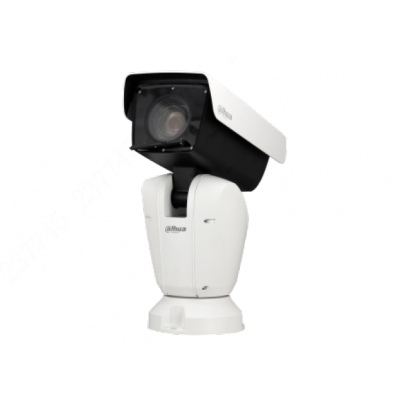

4MP 48x Starlight Laser Network Positioning System
· 1/1.8” 4Megapixel STARVIS™ CMOS
· Powerful 48x optical zoom
· Starlight technology
· Support Triple-stream encoding
· Max. 50/60fps@4MP
· Auto-tracking and IVS
· IR Distance up to 450m
· IP66
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/1.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels | 2560(H) x 1440(V), 4 Megapixels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 3840 (H) x 2160 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | More than 55dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 2 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | 1/1 s–1/30000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | Color: 0.001Lux@F1.4; B/W: 0.0001Lux@F1.4; 0Lux@F1.4 (IR on)
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR Distance | Distance up to 450m((476ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR On/Off Control | Zoom Prio/Manual/SmartIR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR LEDs | IR LEDs 8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wiper | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 6.25mm–300mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | F1.4–F4.5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle of View | H: 1.8°–62.4°; V: 1.0°–36.6°; D: 2.0°–69.8° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Zoom | 48x | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control | Auto; Semi-Auto; Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 0.5m – 2m (1.64 ft–6.56 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | Detect | Observe | Recognize | Identify | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3531 m (11584.6ft)
| 1412 m (4632.5 ft)
| 706 m (2316.3 ft)
| 353 m (1158.1ft)
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based onsensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | | | | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -90° ~ 45° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Manual Control Speed | Pan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset Speed | Pan: 160°/s; Tilt: 60°/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset | 300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Speed Setup | Human-oriented focal Length/ speed adaptation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Up Action | Auto restore to previous PTZ and lens status after | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol | DH-SD, Pelco-P/D (Auto recognition) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Event Trigger | Motion detection, Video tampering , Scene | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection | Tripwire and intrusion. Support alarm triggering by | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Detection, Heat Map | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auto Tracking | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression | H.265+/H.265/H.264+/H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 4MP(2560 x 1440)/3M(2048×1536)/1080P(19
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate | Main stream: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate | H.264: 3072 Kbps–15104 Kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Auto (ICR); Color; B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backlight Compensation | BLC / HLC / WDR (120dB) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto, ATW, Indoor, Outdoor, Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto; Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | Ultra DNR (2D/3D) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Image | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Zoom | 16x | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flip | 180° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking | Up to 24 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression | G.711a/G.711Mu/AAC/G.722/G.726/MPEG2-L2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet | RJ-45 (10Base-T/100Base-TX) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF Profile S&G, API | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Method | Unicast; Multicast | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Users | 20 users | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Edge Storage | NAS (Network Attached Storage),Local PC for | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Web Viewer | IE, Chrome, Firefox, Safari | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software | Smart PSS, DSS, DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE: EN55032/EN55024/EN50130-4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS485 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio I/O | 1/1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm I/O | 7/2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | DC36V/2.23A ± 25%, AC24V/5A ± 25% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | 28.7W; 61.6W (IR LEDs on and PTZ moving) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions | –40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RHIngress | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ingress Protection | IP66 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vandal Resistance | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | Φ203.2(mm) x 399 (mm) x 486 (mm) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 15kg(33.07lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 20.5kg(45.19lb) |
