VTH2421FB(W)-P

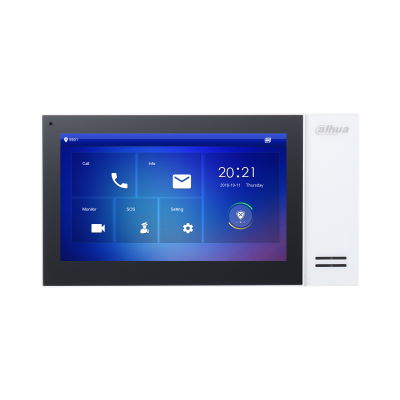

IP Indoor Monitor

> 7" TFT Capacitive touch screen, 1024 x 600
> IPC surveillance
> Alarm integration
> High performance & Cost-effective
> Embedded 8GB SD card
> Support standard PoE


  • Specificaties
  • Accessoires
  • Downloaden
  • Technical Specification

    Main Processor

    High performace embedded processor

    Operating System

    Embedded LINUX OS

    Screen Type

    Capacitive screen

    Display

    7-inch TFT screen

    Resolution

    1024 × 600

    Video Compression

    H.264

    Audio Compression

    G.711A/G.711U/PCM

    Audio Input

    1 channel all-direction microphone

    Audio Output

    Built-in 1.5W loudspeaker

    Audio Mode

    Support dual-way bidirectional talk

    Audio Enhancement

    Support echo cancellation/DNR

    Audio Bit Rate

    16 kbps

    Communication Mode

    Full digital

    Information Release

    Support to receive and view notifications issued by center

    Leave Videos or Text Messages

    Support

    DND Mode

    Support to set DND period

    Sub-station Quantity

    9

    Alarm Input

    6 channel (switch quantity)

    Alarm Output

    1 channel

    Network

    1 RJ-45

    SOS Alarm

    Support

    Casing

    PC+ABS

    Appearance Color

    Appearance Color

    Power Supply

    Standard PoE DC 12V 1A

    Installation

    Wall mount

    Accessories

    Default bracket
    Default alarm cable

    Dimensions

    119.6 mm × 221.5 mm × 21.5 mm (4.71" × 8.72" × 0.85")

    Operating Temperature

    -10°C to +55°C (+14°F to +131°F)

    Operating Humidity

    10%RH-95%RH

    Power Consumption

    Standby≤4W, work≤6W

    Gross Weight

    0.35 Kg (0.77 lb)

    Power supply mode

    PoE

    Storage

    Support Micro SD, maximum memory capacity 32 G, standard memory capacity 8 G
