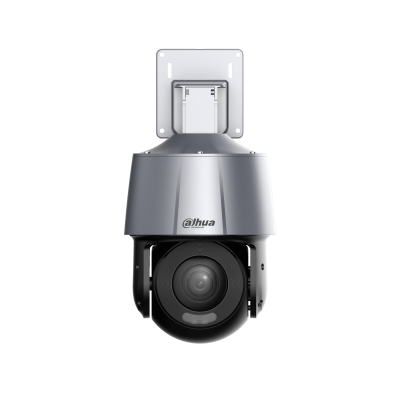

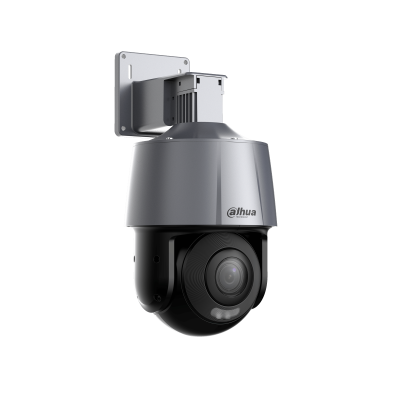

SD3A400-GN-A-PV

4MP IR and White Light Full-color Network PT Camera

> 1/3" 4Megapixel CMOS

> IR distance up to 30 m

> H.265 Encoding

> PoE

> Max. 25/30 fps@4M

> IVS


  • Specifications
  • Accessories
  • Download
  • Camera

    Image Sensor

    1/3" CMOS

    Max. Resolution

    2560 (H) x 1440 (V)

    Pixel

    4 MP

    ROM

    128 MB

    RAM

    128 MB

    Electronic Shutter Speed

    1/3 s–1/100,000 s

    Scanning System

    Progressive

    Min. Illumination

    Color: 0.002 lux@F1.6
    B/W: 0.0002 lux@F1.6
    0 lux (illuminator on)

    Illumination Distance

    30 m (98.42 ft) (IR)
    30 m (98.42 ft) (white light)

    Illumination On/Off Control

    Auto; Manual; Off

    Illumination Number

    2 (IR light)
    2 (white light)

    Lens

    Focal Length

    4.0 mm

    Max. Aperture

    F1.6

    Field of View

    H:80.2°, V:43.1°, D:94.3°

    Close Focus Distance

    0.3 m (0.98 ft)

    Iris Control

    Fixed

    DORI Distance

    Detect

    Observe

    Recognize

    Identify

    55.1 m
    (180.77 ft)

    21.9 m
    (71.85 ft)

    10.6 m
    (34.78 ft)

    4.6 m
    (15.09 ft)

    PTZ

    Pan/Tilt Range

    Pan: 0° to 355°
    Tilt: -15° to 90°

    Manual Control Speed

    Pan: 0.1°/s–26°/s
    Tilt: 0.1°/s–17.5°/s

    Preset Speed

    Pan: 26°/s; Tilt: 17.5°/s

    Preset

    300

    Power-off Memory

    Yes

    Idle Motion

    Preset

    Smart Event

    IVS

    Tripwire; intrusion

    Active Deterrence

    Light Warning

    White light warning

    Flash duration: 5 s–30 s

    Flash frequency: High, medium, low

    Sound Warning

    Sound warning alarm: Customizable

    Alarm duration: 10 s, 20 s, 30 s

    Video

    Video Compression

    H.265; H.264B; H.264; MJPEG(Sub Stream 1); smart H.265+; smart H.264+

    Streaming Capability

    2 Streams

    Resolution

    4M (2560 × 1440); 1080p (1920 × 1080); 720p (1280×720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

    Video Frame Rate

    Main stream: 4M/1080p/1.3M/720p (1–25/30 fps)
    Sub stream 1: D1/CIF (1–25/30 fps)

    Bit Rate Control

    CBR; VBR

    Video Bit Rate

    H264: 2304~8192Kbps

    H265: 768~6912Kpbs

    Day/Night

    Auto (ICR); Color; B; W

    BLC

    Yes

    WDR

    DWDR

    HLC

    Yes

    White Balance

    Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

    Gain Control

    Auto; Manual

    Noise Reduction

    2D; 3D

    Motion Detection

    Yes

    Image Rotation

    180°

    S/N Ratio

    ≥55 dB

    Audio

    Audio Compression

    PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1

    Network

    Network Port

    RJ-45 (10/100 Base-T)

    Network Protocol

    HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; SSL; FTP; ARP; RTCP; RTP; IP Filter; RTMP; TCP

    Interoperability

    ONVIF (Profile S&T); CGI

    Streaming Method

    Unicast; Multicast

    User/Host

    20

    Storage

    FTP; Micro SD card (256 G)

    Browser

    IE 7 and later versions
    Chrome 42 and earlier versions
    Firefox 52 and earlier versions
    Safari

    Management Software

    DMSS

    Mobile Client

    iOS; Android; iPhone; iPad; Windows Phone

    Certification

    Certifications

    CE: EN55032/EN55024/EN50130-4
    FCC: Part15 subpartB, ANSI C63.4-2014

    Port

    Audio Input

    1 channel (Built-in Mic)

    Audio Output

    1 channel (Built-in Speaker)

    Audio I/O

    1/1

    Two-way Audio

    Yes

    Alarm Linkage

    Capture; preset;recording; send email; audio

    Alarm Event

    Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

    Power

    Power Supply

    12 VDC, 1.5 A (±10%)

    PoE (802.3af)

    Power Consumption

    Basic: 4 W
    Max: 12.95 W (illuminator)

    Environment

    Operating Conditions

    –30 °C to +60 °C (–22 °F to +140 °F)

    Operating Humidity

    ≤95% RH

    Protection

    IP66; TVS 2000V lightning proof; surge protection; voltage transient protection

    Structure

    Product Dimensions

    271.7 mm × 165.5 mm × 140 mm (107" × 6.52" × 5.51")

    Net Weight

    1.07 kg (2.36 lb)

    Gross Weight

    1.46 kg (3.21 lb)

    The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.
