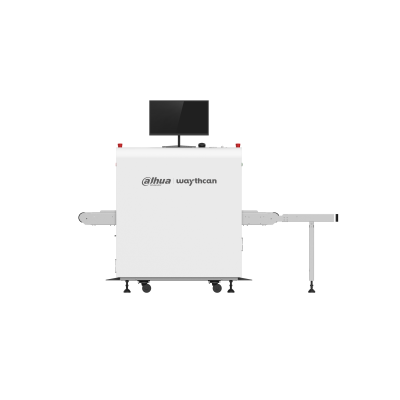

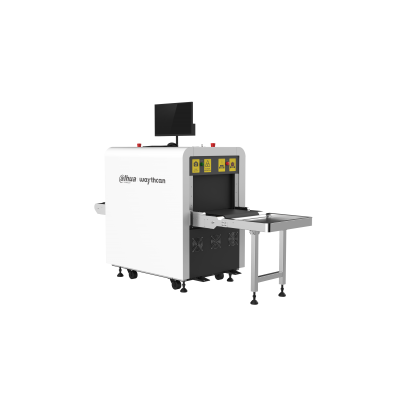

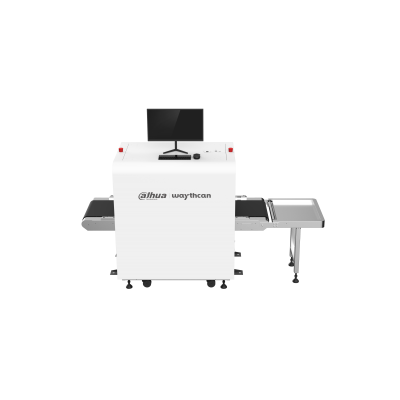

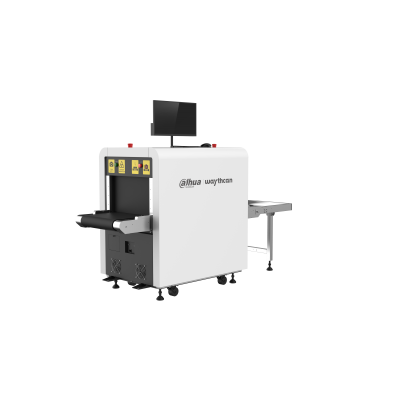

System

CPU

Intel quad-core processor

RAM

4 GB

Operating System

Embedded Linux OS

User Interface

Local GUI (full functions); Web interface

Basic

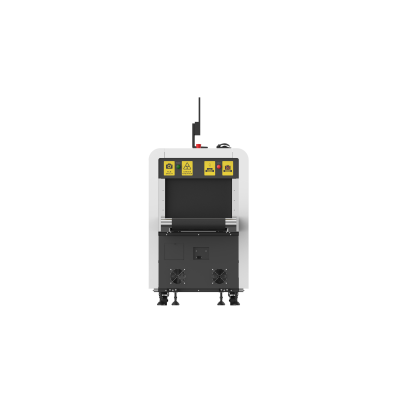

Tunnel size

500 mm × 300 mm

X-ray Tube Anode Voltage

80 kV

X-ray Tube Cooling

Sealed oil bath with forced air / 100%

Wire Resolution

Typical: 40AWG, Standard: 38AWG *

Penetration(steel)

Typical: 9 mm; Standard: 7 mm *

Detector Channels

384 Channels

Leakage Dose-rate

≤ 0.9 μSv/h(μGy/h)

Noise Level

≤ 65 dB

Conveyor Speed

0.2 m/s

Maximum Belt Load

80 kg (176.37 lb)

Conveyor Hight

670 mm to 760 mm adjustable

Current Leakage

≤ 0.25 mA

Film Safety

ISO 1600 (33 DIN)

Intelligent Analysis

Preview

Real-time display of X-ray package image

Image Storage

Stores as much as 1 million images with information. Original images can both be viewed.

Baggage Search

Search, play back, and export baggage images according to time, and more

Report Search

Generate and export reports according to time

Backup

USB/Network

Performance

Self-inspection

Automatically detects system failures and prompts error codes

Image Processing

Enhancement functions include color/black and white, local enhancement, super enhancement, edge enhancement, image scanning, inverse, Penetration enhancement, light, dark, high density alert, AI overlay, vertical flip, pseudo color and more

Image playback

Supports playback of 10 images

Image Zooming

Zoom in X-ray images up to 64x. Drag the focus position using a mouse or direction- keys

Device Diagnosis

Supports diagnosis of key components such as the detector, motor, IR sensor

Detection Configuration

Key function configuration; image display configuration (vertical flip and max zoom times), scan mode configuration (double direction, forward scan), baggage counter configuration and person-package linkage configuration

Basic

Graphics Output

1-channel HDMI video output: Up to 1920 (H) × 1080 (V) @60 Hz

Monitor

1 × 21.5" monitor

Audio output

1-channel MIC Out (3.5 mm)

Built-in Disks

Supports up to 6 T SATA disks and configures 1T disk by default

Ethernet Ports

1 RJ-45 10 M/100 M/1000 M self-adaptive Ethernet ports

Internet Protocols

HTTP, HTTPS, TCP/IP, UDP, RTSP, IPv4, NTP, DHCP, DNS, IP Filter

Interoperability

SDK and more

Ports

RS 232 Port

1-channel RS-232 port

Power port

1-channel port for monitor power supply
12V1A power output

USB Port

2-channel USB3.0 for controlling the operation keyboard and mouse

Display Port

2-channel HDMI outputs (same source)

Alarm Port

2-channel alarm output; 2-channel alarm input

Emergency Stop Button

2 (on the machine body)

Power Button

1 (on the machine top)

Key Switch

1 (on the machine top)

Indicator light

On the machine:
Power indicator: Turns solid green when the machine is working and flashes during updates and when an error occurs
X-ray indicators: the red light is always on when X-ray is turned on, but not when X-ray is turned off
Key switch indicator: The green light is always on when the key is turned to on, but not on when the key is turned to off

Regular

Power Supply

220–240 VAC, 50/60 Hz; 100–130 VAC, 50/60 Hz (optional)

Typical Power Consumption

220 W

Maximum Power Consumption

500 W

Intelligent Temperature Control

Detects the temperature of main board and HDD and automatically adjusts fan speed to make it work stably and quietly

Operating Temperature

0 °C to +45 °C (32 °F to +113 °F)

Operating Humidity

0%–95% (RH), non-condensing

Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Storage Humidity

0%–95% (RH), non-condensing

Dimensions

1665 mm × 766 mm × 1237 mm

Package Size

1805 mm × 1026 mm × 1425 mm

Net Weight

300 kg (661.39 lb)

Gross Weight

400 kg (881.85 lb)

Installation Mode

Floor installation

* Measured by Dahua Imaging Test Kit
