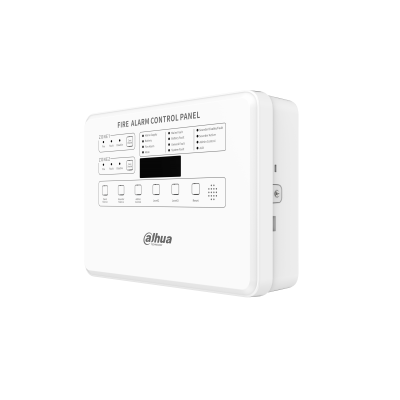

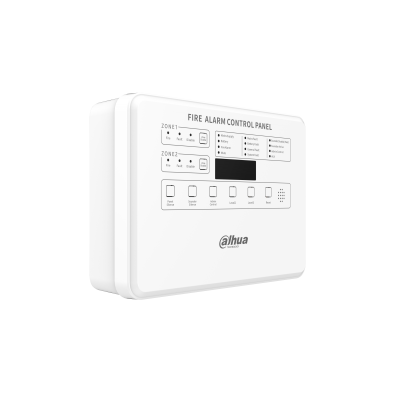

Conventional Control Panel
> Self-checking: Regular checks ensure functionality and notify users of issues.
> Global monitoring: Supports multiple fire detectors and triggers instant alerts.
> High scalability: Supports scalable cascading solutions to enhance coverage capability.
> Easy installation: Easy installation with no complex coding; quick setup suitable for non-professionals.
> Power management: Ensures smooth main-backup power transition and alerts for low backup battery.
> AIOT solution: Enables access to the Wisualarm cloud platform for seamless, one-stop monitoring and management.
| Technical Speciï¬cation | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Number of Zones | 2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Zone Capacity | 25 detectors per zone | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Power Supply | AC 100-240V/50Hz, 60Hz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Backup Power | 12V 2.5Ah | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rated Power | 28W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working Voltage | DC28V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Zone Current | 35mA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bell Line | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bell Current | 500mA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Fire Alarm Terminal | NO/NC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Fire Fault Terminal | NO/NC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Communication Distance | 1500 m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Cascade | 128 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 293.9mmÃ207.9 mmÃ79.5 mm (11.57" Ã 8.18" Ã3.13") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 2.0kg(With battery), 1.05kg(Without battery) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | â10°C to +55°C (+14°F to +131°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | †95% RH (no condensation) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection Grade | IP30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation | Wall mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Compliance Standard | EN54-2,EN54-4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
