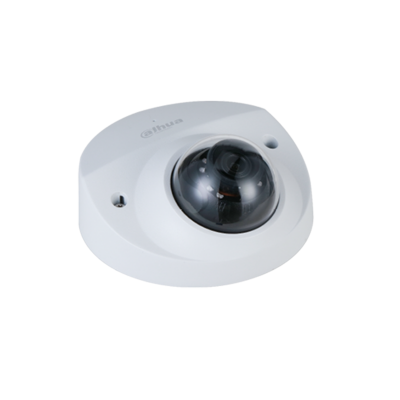

IPC-HDBW2431F-AS-S2

4MP Lite IR Fixed-focal Dome Network Camera

> 4-MP, 1/3” CMOS image sensor, low illuminance, high image definition.

> Outputs max. 4MP (2688 × 1520) @20 fps,and supports 2560 × 1440 (2560 × 1440) @25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, max. IR distance: 30 m.

> RoI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent detection: Intrusion, tripwire.

> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection.

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; built-in Mic; supports max. 256 GB Micro SD card.

> 12V DC/PoE power supply.

> IP67, IK10 protection.




  • 仕様
  • アクセサリ
  • ダウンロード
  • Camera

    Image Sensor

    1/3" CMOS

    Max. Resolution

    2688 (H) × 1520 (V)

    ROM

    128 MB

    RAM

    128 MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Minimum Illumination

    0.008 lux@F1.6 (Color, 30 IRE)

    0.0008 lux@F1.6 (B/W, 30 IRE)

    0 lux (Illuminator on)

    S/N Ratio

    > 56 dB

    Illumination Distance

    30 m (98.4 ft)(IR)

    Illuminator On/Off Control

    Auto/Manual

    Illuminator Number

    8 (IR LED)

    Pan/Tilt/Rotation Range

    Pan: –30°30°

    Tilt: 0°80°

    Rotation: 0°360°

    Lens

    Lens Type

    Fixed-focal

    Mount Type

    M12

    Focal Length

    2.8 mm; 3.6 mm

    Max. Aperture

    F1.6

    Field of View

    2.8 mm: H: 108°; V: 56°; D: 128°

    3.6 mm: H: 88°; V: 46°; D: 104°

    Iris Type

    Fixed

    Close Focus Distance

    2.8 mm: 1.1 m (3.6 ft)
    3.6 mm: 1.6 m (5.2 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    2.8mm

    63.6 m

    (208.66 ft)

    25.4 m

    (83.33 ft)

    12.7 m

    (41.67 ft)

    6.4 m

    (21.00 ft)

    3.6mm

    79.4 m

    (260.50 ft)

    31.8 m

    (104.33 ft)

    15.9 m

    (52.17 ft)

    7.9 m

    (25.92 ft)

    Smart Event

    IVS

    Tripwire; intrusion

    Video

    Video Compression

    H.265; H.264; H.264B; MJPEG (only supported

    by sub stream)

    Smart Codec

    Smart H.265+; Smart H.264+

    Video Frame Rate

    Main stream:
    2688 × 1520@(1 fps-20 fps)
    2560 × 1440@(1 fps-25/30 fps)
    Sub stream:
    704 × 576@(1 fps-25 fps)
    704 × 480@(1 fps-30 fps)

    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

    Stream Capability

    2 streams

    Resolution

    2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)

    Bit Rate Control

    CBR; VBR

    Video Bit Rate

    H.264: 32 kbps–6144 kbps
    H.265: 12 kbps–6144 kbps

    Day/Night

    Auto (ICR)/Color/B/W

    BLC

    Yes

    HLC

    Yes

    WDR

    120 dB

    White Balance

    Auto; natural; street lamp; outdoor; manual; regional custom

    Gain Control

    Auto; Manual

    Noise Reduction

    3D NR

    Motion Detection

    OFF/ON (4 areas, rectangular)

    Region of Interest (RoI)

    Yes (4 areas)

    Smart Illumination

    Yes

    Image Rotation

    0°/90°/180°/270° (Support 90°/270° with

    2688 × 1520 resolution and lower.)

    Mirror

    Yes

    Privacy Masking

    4 areas

    Audio

    Built-in MIC

    Yes

    Audio Compression

    G.711a; G.711Mu; G.726

    Alarm

    Alarm Event

    No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; security exception; local alarm

    Network

    Network

    RJ-45 (10/100 Base-T)

    SDK and API

    Yes

    Cyber Security

    Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

    Protocol

    IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

    Interoperability

    ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

    User/Host

    20

    Storage

    FTP; SFTP; Micro SD Card (support max. 256 GB); NAS

    Browser

    IE; Chrome; Firefox

    Management Software

    Smart PSS, DSS, DMSS

    Mobile Phone

    IOS; Android

    Certification

    Certifications

    CE-LVD: EN62368-1
    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
    FCC: 47 CFR FCC Part 15, Subpart B
    UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

    Port

    Audio Input

    1 channel (RCA port)

    Audio Output

    1 channel (RCA port)

    Alarm Input

    1 channel in: 5mA 3V–5V DC

    Alarm Output

    1 channel out: 300mA 12V DC

    Power

    Power Supply

    12V DC/PoE

    Power Consumption

    <5.4W

    Environment

    Operating Temperature

    –40°C to +60°C (–40°F to +140°F)/less than ≤ 95% RH

    Storage Temperature

    –40°C to +60°C (–40°F to +140°F)

    Protection

    IP67; IK10

    Structure

    Casing

    Metal

    Dimensions

    55 mm × Φ108.9 mm (2.2" × Φ4.3")

    Net Weight

    0.38 kg (0.84 lb)

    Gross Weight

    0.52 kg (1.15 lb)
