Conductor

Material

Oxygen free copper (99.97% purity)

Conductor Structure

0.45 mm ± 0.01 mm (0.02" ± 0.0004")

American Wire Gauge

25AWG

Insulation

Insulating Material

HDPE

Min. Average Thickness

0.18 mm (0.01")

Insulation Diameter

0.84 mm ± 0.3 mm (0.0331" ± 0.0118")

Insulation Color

8 cores, Blue, white/blue; Orange, white/orange; Green, white/green; Brown, white/brown

Rip Cord

Material

Polyester

Specification

500D

Sheath

Min. Average Thickness

0.5 mm (0.02")

Sheath Material

LSZH

Sheath Diameter

4.7 mm ± 0.4 mm (0.19" ± 0.02")

Sheath Color

White

Electrical

Max. DC Resistance of a Single Conductor

12.0 Ω@100 m (328.08 ft)

Min. Insulation Resistance

5000 MΩ·km

Max. DC Resistance Unbalance

2% (pair intra), 4% (pairs inter)

Dielectric Strength

No breakdown with 1kV DC for 1 min

Transmission

Characteristic Impedance

100 Ω ± 15 Ω

Near-end Crosstalk

≥35.3 dB/100 m@100 MHz

Max. Attenuation

24.2 dB/100 m@100 MHz

Return Loss

≥20.1 dB/100 m@100 MHz

Mechanical

Tensile Strength

Sheath≥10 MPa, insulation≥16 Mpa

Elongation at Break

Sheath≥125%, insulation≥300%

Installation Bending Radius

>8 times of outer cable diameter

Conductor Elongation at Break

≥10%

Environmental

Shrinkage of Insulation

≤5%

Color Migration Resistance of Insulation

No migration

Sheath Tensile Strength and Elongation at Break after Aging

≥8 MPa, ≥100%

Low Temperature Bending Test

No cracking after the test

Heat Shock Test

No cracking after the test

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Installation Temperature

0 °C to +50 °C (+32 °F to +122 °F)

Storage Temperature

–10 °C to +40 °C (+14 °F to +104 °F)

Storage Humidity

<60% (RH)

Security

Vertical Flame Test

Comply with IEC 60332-1-2

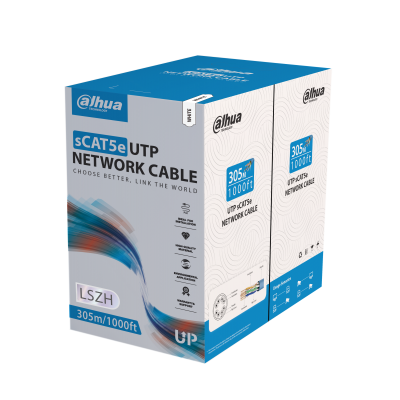

Packaging

Cable Length

305.0 m± 2 m (1,000.66 ft ± 6.56 ft)

Packaging Method

305 m (1,000 ft) a carton, one carton with 2 inner cartons

Packaging Dimensions

350 mm × 350 mm × 203 mm (13.78" × 13.78" × 7.99") (L × W × H)

Transport Package Dimensions

431 mm × 371 mm × 380 mm (16.97" × 14.61" × 14.96") (L × W × H)

Net Weight

8 kg ± 0.6 kg (17.64 lb ± 1.32 lb)

Gross Weight

8.5 kg ± 0.6 kg (18.73 lb ± 1.32 lb)

Compliance Standard

Compliance Standard

Q/DXJ 067-2024, EN50575

Flame-retardant Standard

Compliance Standard

EN50575
