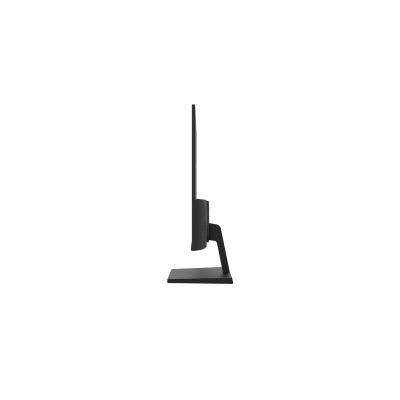

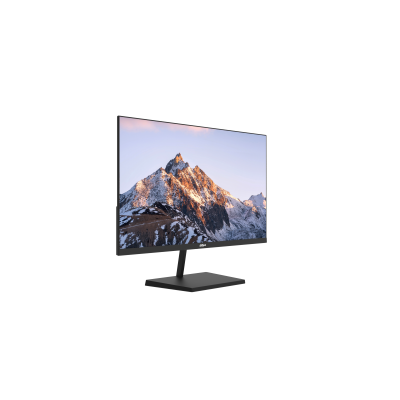

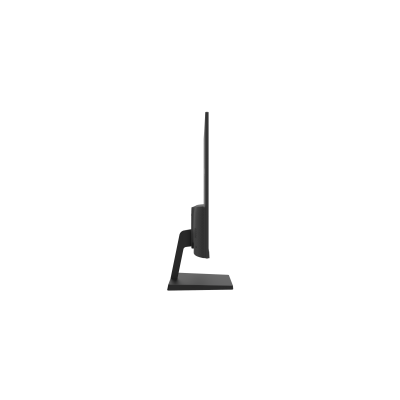

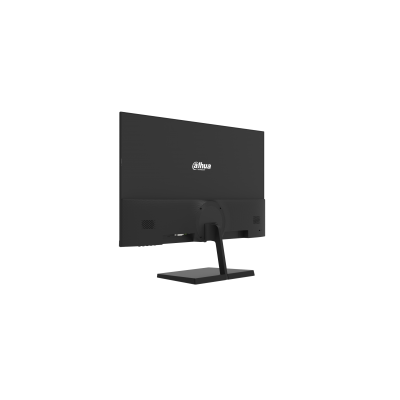

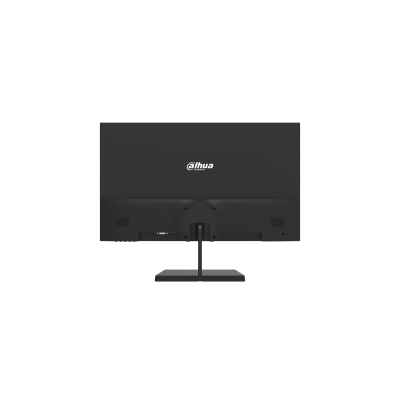

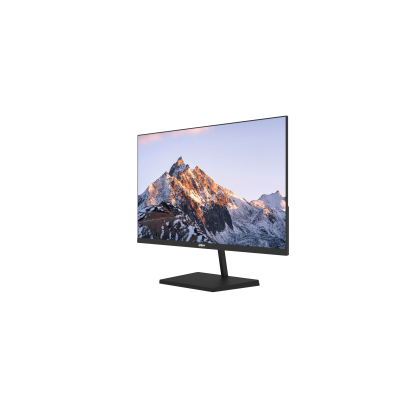

DHI-LM22-A201YF

21.45'' FHD Monitor

·Light and cost-effective plastic housing;

· Ultra-narrow bezel , elegant appearance, plastic base;

· 178°H/178°V extra-wide viewing angle for overall viewing performance;

· High fidelity digital processing for a brilliant and vivid video;

· Support multiple signal inputs such as HDMI, VGA;

· Physical button control mode;

· Low energy consumption, long service life;

· Anti-blue light design,eye-protective.



  • Specifications
  • Accessories
  • Download
  • selector-pcimg

    Product Selector

    Model

    Model

    DHI-LM22-A201YF

    Display

    Screen Size

    21.45"

    Panel type

    IPS

    Aspect Ratio

    16:9

    Resolution

    1920x1080 (FHD)

    Backlight

    LED

    Brightness(typ)

    250 cd/㎡(max)

    Contrast Ratio

    1000:1

    Display Color

    16.7M (8bit)

    Viewing Angle(H/V)

    178°(H)/178°(V)

    Response time(typ)

    10 ms (Max)

    Refresh Rate (max)

    100Hz (max)

    Signals

    Input

    HDMI×1,VGA×1

    Output

    NA

    General

    Power Supply

    DC 12V

    Consumption (Standard)

    22W

    Consumption (Standby)

    ≤0.5W

    Net Weight (kg)

    2.05kg (4.51lb)

    Gross Weight (kg)

    2.86kg (6.29lb)

    Bezel Width

    3.3mm(U/R/L) 15.2mm(B)

    Wall Mount

    75x75mm (3.0"x3.0")

    Dimension without stand (W×H×D)

    492.7x284.0x41.2mm

    Package(W×H×D)

    598x99x366mm

    Work Environment

    Temperature

    0 ℃~40 ℃ (32°F~104°F)

    Humidity

    10%~85%

    Accessory

    Standard

    HDMI cable, Adapter, base

    Certifications

    Certifications

    TBD
