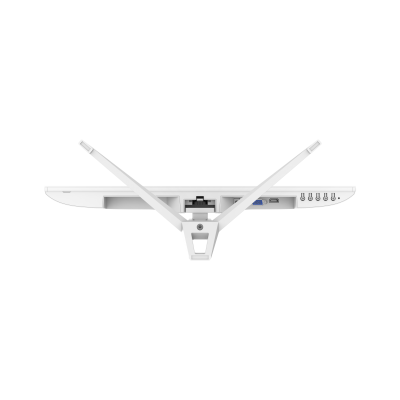

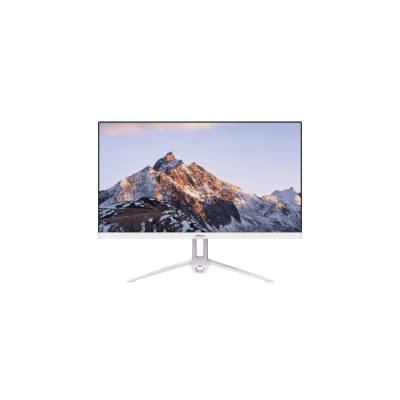

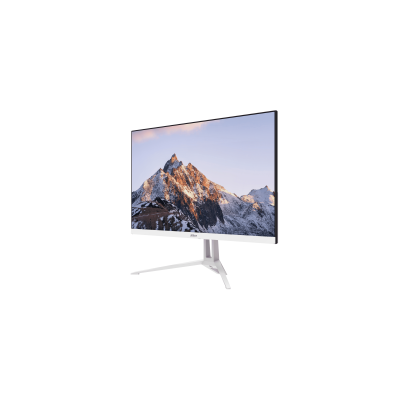

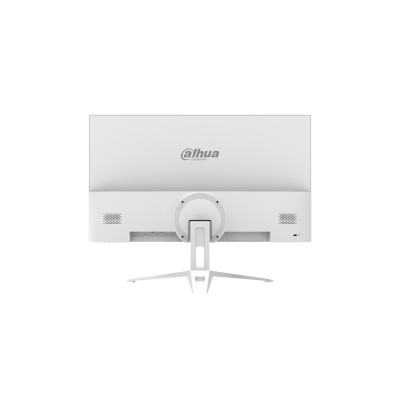

DHI-LM22-B201DW

21.45'' FHD Monitor

·Light and cost-effective plastic housing;
·Ultra-narrow bezel , elegant appearance, Metal base;
· 178°H/178°V extra-wide viewing angle for overall viewing
performance;
·High fidelity digital processing for a brilliant and vivid video;
·Support multiple signal inputs such as HDMI, VGA;
·Physical button control mode;
·Low energy consumption, long service life;
·Anti-blue light design,eye-protective


  • Specifications
  • Accessories
  • Download
  • selector-pcimg

    Product Selector

    Model

    Model

    DHI-LM22-B201DW

    Display

    Screen Size

    21.45"

    Panel type

    IPS

    Aspect Ratio

    16:9

    Resolution

    1920x1080 (FHD)

    Backlight

    LED

    Brightness(typ)

    250 cd/㎡(max)

    Contrast Ratio

    1000:1

    Color Gamut

    85% NTSC

    Display Color

    16.7M (8bit)

    Viewing Angle(H/V)

    178°/178°

    Response time(typ)

    1 ms

    Refresh Rate (max)

    100Hz(MAX)

    Signals

    Input

    VGA×1, HDMI×1

    Output

    No

    Speaker

    1Wx2

    General

    Power Supply

    DC 12V

    Consumption (Standard)

    ≤ 22W

    Consumption (Standby)

    ≤0.5W

    Net Weight (kg)

    2.18kg (4.8lb)

    Gross Weight (kg)

    3.12 kg (6.9lb)

    Bezel Width

    3.3mm(U/R/L) 15.2mm(B)

    Wall Mount

    75x75mm(3.0"x3.0"）

    Dimension without stand (W×H×D)

    492.7x284.0x48.4mm (20“x11.2”x1.9”)

    Package(W×H×D)

    598x99x366mm (23.6“x4.0”x14.5”)

    Work Environment

    Temperature

    0℃~40℃ (32°F~104°F)

    Humidity

    10%~85%

    Accessory

    Standard

    HDMI cable, Adapter, base

    Certifications

    Certifications

    CE/FCC
