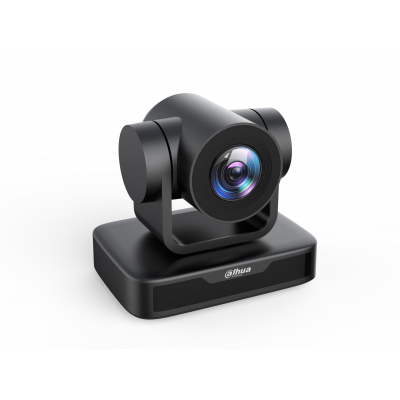

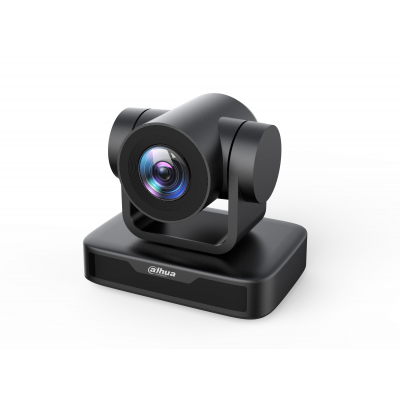

USB Camera
> High-Quality Image Sensor: The camera employs a high-quality image sensor capable of outputting a resolution up to 1920 × 1080, with a frame rate as high as 30 frames per second.
> Optical Zoom Lens: It features an optical zoom lens with a 10x zoom capacity, enabling you to view your scene from various angles.
> Advanced Auto-Focus Technology: Utilizing advanced focusing algorithms, the lens achieves quick, accurate, and stable auto-focus functionality.
> Low Noise and High Signal-to-Noise Ratio: The low-noise CMOS sensor ensures a high signal-to-noise ratio in the video output. Advanced 2D and 3D noise reduction technologies are implemented to further minimize noise while maintaining image clarity.
> Control Ports: Includes both RS485 and RS232 ports. Cascading can be performed through RS232, facilitating installation and engineering projects.
> Multiple Control Protocols: Supports the VISCA, PELCO-D, and PELCO-P protocols, and features automatic protocol recognition.
> Quiet PTZ: It comes equipped with high-precision stepper motors and a precise motor drive controller, ensuring smooth operation of the pan and tilt mechanism without generating any noise.
> Multiple Presets: Supports up to 255 preset positions, 10 of which can be accessed through the remote control.
Device Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
2 MP CMOS sensor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
1920 (H) × 1080 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
H264/MJPG: 1920×1080p@30/25/20/15/10/5 fps; 1280×720p@30/25/20/15/10/5 fps; 960×540@30/25/20/15/10/5 fps; 800×600@30/25/20/15/10/5 fps; 720×576@30/25/20/15/10/5 fps; 720×480@30/25/20/15/10/5 fps; 640×480@30/25/20/15/10/5 fps; 640×360@30/25/20/15/10/5 fps; 352×288@30/25/20/15/10/5 fps; 320×240@30/25/20/15/10/5 fps; YUY2: 1920×1080P@5 fps; 1280×720@10/5 fps; 1024×576@15/10/5 fps; 800×600@20/15/10/5 fps; 800×448@25/20/15/10/5 fps; 640×480@30/25/20/15/10/5 fps; 640×360@30/25/20/15/10/5 fps; 480×270@30/25/20/15/10/5 fps; 320×180@30/25/20/15/10/5 fps; NV12: 1280×720@10/5 fps; 1024×576@15/10/5 fps; 800×600@20/15/10/5 fps; 800×448@25/20/15/10/5 fps; 640×480@30/25/20/15/10/5 fps; 640×360@30/25/20/15/10/5 fps; 480×270@30/25/20/15/10/5 fps; 320×180@30/25/20/15/10/5 fps; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
Horizontal angle: 8.8° (narrow angle)–66°(wide angle) Vertical angle: 8.8° (narrow angle)–66°(wide angle) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
f=4.34mm–41.66mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Zoom |
10X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.5 lux (F1.8, AGC ON) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Aperture |
F1.85–F2.43 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Automatic/manual/one-click focus | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
2D and 3D digital noise reduction | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Automatic/manual/one-click WB/specified color temperature (2400K–7100K) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Exposure |
Automatic and manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC |
On/off | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Adjustment |
Brightness, hue, saturation, contrast, sharpness, black-white mode, gamma ray curve | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
> 50 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
YUY2/NV12/MJPG/H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB Video Communication Protocol |
UVC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output Port |
1-channel USB 2.0 port: Type A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Control Port |
RS 232 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol |
VISCA/Pelco-D/Pelco-P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
HEC3800 power socket (VDC 12) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ Pan/Tilt |
Horizontal angle: –170°–+170° Pitch angle: –30°–+30° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ Speed |
Horizontal angle speed control: 0.1°–60° per second Pitch angle speed control: 0.1°–40° per second | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ Presets |
The user can set up to 255 preset positions (with 10 preset positions accessible via the remote control) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Voltage |
12 V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Current |
0.42 A (max) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
5 W (max) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10 °C to +50 °C (–14 °F to +122 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
20%–80% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–10 °C to +60 °C (–14 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
20%–80% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Environment |
Indoor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Size and Weight | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
156.8 mm × 112.6 mm × 139.0 mm (6.17" × 4.43" × 5.47") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
320.0 mm × 240.0 mm × 180.0 mm (12.60" × 9.45" × 7.09") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
1.0 kg (2.20 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packing List | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packing List |
1 camera, power adapter, remote control, USB 2.0 video cable, users' manual, warranty card, packing list. |
