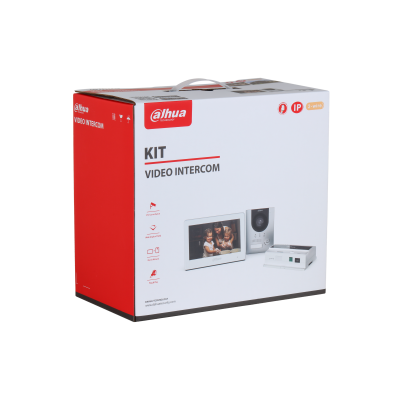

KTD01L
Video Intercom KIT
IP Villa Door Station:
> Anodized aluminum front panel.
> CMOS low illumination 2MP HD colorful 168.6°camera.
> Video intercom function.
> Provides 12 VDC, 600 mA power.
> Mobile phone app, talk to the visitor or unlock the door remotely on your phone.
> IK07 and IP65 rated (silicone sealant is required for the shell, see the quick start guide).
> Supports H.265 and H.264.
> Standard PoE power supply (if the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard).
IP Indoor Monitor:
> 7" TFT capacitive touch screen.
> 6-channel alarm input and 1-channel alarm output.
> Supports standard PoE or Power over 2-wire switch.
> H.265 video coding (H.264 by default).
> Supports 2-wire digital communication.
> Supports daisy chain topology.
> 2.5D screen glass.
Technical Specification
DHI-VTO2202F-P-S2
System
Main Processor
Embedded processor
Operating System
Embedded Linux Operation System
Button Type
Mechanical
Interoperability
ONVIF; CGI
Network Protocol
RTSP;RTMP;HTTP/HTTPS;DNS; UPnP;RTP;SIP;SSH; ONVIF ;P2P
Basic
Camera
1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye Camera
Field of View
Horizontal: 160°; vertical: 87.1; diagonal:176.7°
Focal Length
1.9 mm
WDR
120 dB
Noise Reduction
3D NR
Video Compression
H.265
Video Resolution
50Hz:
Main Stream (720P@25 fps), sub stream (1080P@25 fps)
60Hz:
Main Stream (720P@30 fps), sub stream (1080P@30 fps)Port
RS485
1
Alarm Output
1
Power Output
1-ch 12 VDC 100mA
Exit Button
1
Door Status Detection
1
Lock Control
1
Network Port
One RJ45 10M/100M network port
General
Appearance color
Silver
Power Supply
Dahua 2-wire switch (max. power supply distance 50 m)
DC 48V 1A
Standard PoEPower Adapter
Optional
Installation
Flush/surface mount
Certifications
CE; FCC; UL
Accessory
Flush/surface mount
Product Dimensions
130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
Protection
IK07; IP65
Operating Temperature
–30°C to +60°C (–22°F to 140°F)
Operating Humidity
10%–90% (RH, non-condensing)
Operating Altitude
0 m–3000 m
Power Consumption
≤ 12W
Net Weight
0.35 kg (0.77 lb)
Gross Weight
0.4 kg (0.88 lb)
DHI-VTH5422HW
System
Main Processor
Embedded processor
Operating System
Embedded Linux Operation System
Button Type
Touch keypad
Interoperability
ONVIF
Network Protocol
RTSP; RTP; SIP; DNS; SSH
Basic
Screen Type
Capacitive
Display Screen
7-inch TFT
Resolution
1024 × 600
Audio Compression
G.711a; G.711u; PCM
Audio Input
1
Audio Output
Built-in speaker
Audio Mode
2-way voice communication
Audio Enhancement
Echo suppression
Audio Bit Rate
16 KHz, 16 Bit
Communication Mode
2-wire
Information Release
Supports viewing text announcement from the center ( insert an SD card to receive and view pictures)
Leave Videos
Yes (SD card inserted in VTH is needed)
Storage
Extensible 64 GB Micro SD card
Port
RS-485
1
Alarm Input
6
Alarm Output
1
Power Output
1, 12V/100mA
Door Bell
Yes, reusing any alarm input port
Network Port
One 2-wire port;
One 10 Mbps/100 Mbps Ethernet port;
Use one or the otherGeneral
Casing
PC + ABS
Appearance color
White
Power Supply
Dahua 2-wire switch (max. power supply distance 50 m)
Standard PoEPower Adapter
Optional
Installation
Surface mount
Certifications
CE; FCC; UL
Accessory
Bracket (standard)
Alarm ribbon cable (standard)Product Dimensions
189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06")
Operating Temperature
–10°C to +55°C (14°F to 131°F)
Operating Humidity
10%–95% (RH, non-condensing)
Operating Altitude
0 m–3000 m
Power Consumption
Standby ≤ 2W, working ≤ 6W
Net Weight
0.388 kg (0.86 lb)
Gross Weight
0.74 kg (1.63 lb)
DHI-VTNS1001B-2
Basic
Status Indicator Light
2
Communication Mode
2-wire
Cascade Ability
NA
Port
2-wire port
1
RJ45
1
General
Casing
PC + ABS
Appearance color
White
Power Supply
DC 48V 1A–3A
Power Adapter
Optional
Installation
Guide rail mount
Certifications
CE; FCC; UL
Accessory
Power converter cable
Product Dimensions
131 mm × 103 mm × 40 mm (5.16" × 4.06" × 1.57")
Operating Temperature
–10°C to +55°C (14°F to 131°F)
Operating Humidity
10%–95% (RH, non-condensing)
Operating Altitude
0–3000 m (0–9842.52 ft)
Power Consumption
≤ 15W (KIT)
Net Weight
0.24 kg (0.53 lb)
Gross Weight
0.39 kg (0.86 lb)
