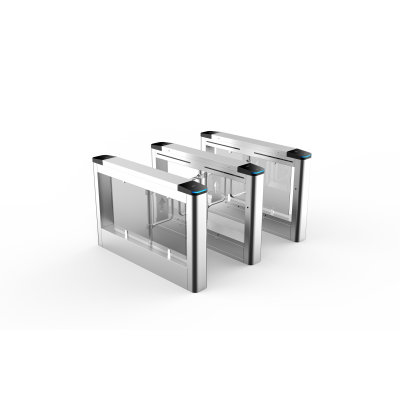

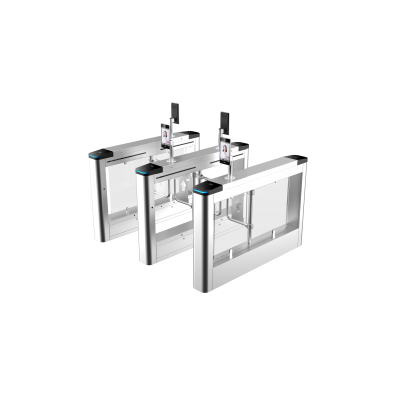

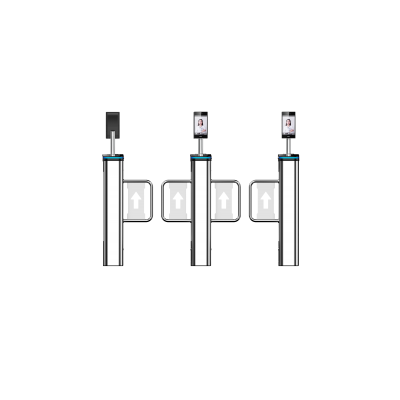

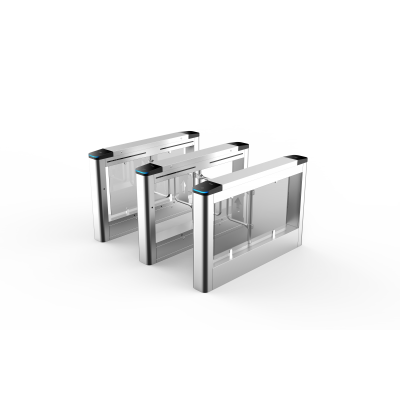

ASGB6XXY-X
Dahua Swing Barrier
> 304 stainless steel cabinet with a thickness of 1.5 mm.
> Anti-collision.
> Restores the system settings to their default values.
> Offers the mechanical and IR anti-squeeze functions.
> Supports second authentication, and memorizing passing data for entry and exit.
> Automatically opens the barrier in a fire.
> Offers 3 security level modes that are suitable for different scenes.
> Features 9 modes for entry and exit including controlled, prohibited, and free. Combine these modes for more options.
> Supports configuring the speed it opens and closes, passing time for people, and delaying the closing time.
> The sound and light alarms are triggered when the system detects events such as intrusion, tailing, reverse intrusion, staying in area,abnormal unlock, jumping the barrier, barrier failure, and IR fault.
> Uses a DC Brushless servo motor.
> MCBF (Mean Cycles between Failures) is no less than 6000,000 times.
> 16 pairs of IR detectors.
> Supports being connected to multiple types of modules such as face, fingerprint and QR code. Combine these modules for more options.
> Comes with an energy storage capacitor. When the device is turned off, the arm automatically opens.
> Comes with stainless steel arms that form a passage with a width of 600 mm.
System
Main Processor
Embedded Processor
Basic
Product Type
Swing Barrier
Motor
Brushless DC motor
Status Indicator Light
Three color indicator lights
Voice Prompt
Yes
Casing Material
SUS304
Function
Online Update
Yes
Verification Method
Card
Performance
MCBF
≥ 6 million times
Card Reading Distance
0 cm–5 cm (o"–1.97")
Max Custom Passage Width
Stainless steel:1,200 mm (47.24"")
Acrylic steel:1,200 mm (47.24"")
Input Port
RS-232 serial port; RS-485 port
Passing Speed
20–60 people/minute
Unlock/Lock Speed
≥0.5 s
Pairs of IR Detectors
16 pairs
Cabinet Thickness
1.5 mm (0.06")
Top Cover Thickness
1.5 mm (0.06")
Barrier Material
Stainless steel; acrylic
Number of Face Module Installation Holes
0
Number of Access Controllers
0
Card Swiping
Yes
Capacity
User Capacity
100000
Card Capacity
100000
Record Capacity
100000
Port
Network Port
1 × 10/100 Mbps self-adaptive Ethernet port
General
Vandal-proof Rating
IK06, IK08
Power Supply
24 VDC, 6 A
Protection
IP54
Power Consumption
≤40 W (standby)，≤260 W (working)
Product Dimensions
1,500 mm × 180 mm × 980 mm (59.06" × 7.09" × 38.58") (L × W × H)
Module Protruding Size
0
Packaging Dimensions
1,765 mm × 405 mm × 1,155 mm (69.49" × 15.94" × 45.47")
Gross Weight
85 kg ± 1.0 kg (187.40 lb ± 2.20 lb)
Operating Temperature
–25 °C to +70 °C (–13 °F to + 158 °F)
Operating Humidity
5%–93% (RH), non-condensing
Operating Environment
Indoor;Outdoor
Storage Temperature
–25 °C to +50 °C (–13 °F to + 122 °F)
Storage Humidity
25% (RH), non-condensing
Ordering Information
Type
Model Descrption
Swing Barrier
DHI-ASGB610Y-L
Dahua Swing Barrier DHI-ASGB610Y-L
Swing Barrier
DHI-ASGB620Y-D
Dahua Swing Barrier DHI-ASGB620Y-D
Swing Barrier
DHI-ASGB610Y-R
Dahua Swing Barrier DHI-ASGB610Y-R
Swing Barrier
DHI-ASGB611Y-L
Dahua Swing Barrier DHI-ASGB611Y-L
Swing Barrier
DHI-ASGB621Y-D
Dahua Swing Barrier DHI-ASGB621Y-D
Swing Barrier
DHI-ASGB622Y-D
Dahua Swing Barrier DHI-ASGB622Y-D
Swing Barrier
DHI-ASGB611Y-R
Dahua Swing Barrier DHI-ASGB611Y-R
