4 Channels H.265 1/2 HDDs AI Mobile Video Recorder

> Supports penta-brid(HDCVI/AHD/TVI/CVBS/IP) video input

> Supports 4-ch 2MP analog cameras and 4-ch 2MP IP cameras input

> Supports H.265/smart H.265 video compression

> Supports 1/2 HDDs up to 2 TB for each), and 1 SD card(up to 256 GB)

> Supports DSM/ADAS/BSD

> Multiple network monitoring: Web viewer, Mobile Center & DMSS

  • Especialización
  • Accesorios
  • Descargar
  • System

    Main Processor

    High-performance industrial embedded micro-controller

    Operation System

    Embedded LINUX

    Operation Interface

    WEB, AV, VGA

    Video and Audio

    Analog Camera Input

    4 HDCVI/AHD/TVI/CVBS cameras, up to 1080P resolution (Audio input is not supported when connecting AHD/TVI/CVBS cameras)

    IP Camera Input

    4 IP cameras, up to 1080P resolution(extendable via PoE switch)


    Supported (up to D1 encoding for sub stream)

    Video Frame Rate

    PAL: 1– 25 fps

    NTSC: 1 – 30 fps

    Video Output

    AV OUT×1, VGA×1

    Output resolution: 800×600, 1280×1024

    Display Split


    OSD Overlay

    Channel, time, GPS position, license plate

    Image Quality Adjustment

    Image quality adjustable across six levels

    Compression Standard

    Video Compression

    H.265, smart H.265, H.264, smart H.264

    Audio Compression



    Mobile Phone Access

    iOS, Android


    Supports built-in 2.4 G Wi-Fi modules.


    Google, PCAPP, IE9 or newer, Firefox


    Device Update

    WEB, USB, remote platform, upgrade tool



    Alerts for forward collision, lane departure and vehicles distance too close.


    Supports detection of drowsy driving, distracted driving, calling while driving, no driver, wearing IR blocking sunglasses, smoking when driving and lens tampering.


    Blind Spot Detection

    Recording Playback

    Record Mode

    Auto, Manual, motion detection, schedule, alarm

    Record alarm > alarm > motion detection > schedule

    Recording Playback

    1, 4


    HDD, USB flash drive and network backup

    Playback Mode

    Normal playback



    1/2 2.5-inch HDDs (SATA)

    Heat Dissipation

    Built-in fan cooling

    SD card

    1 (256G)


    General Alarm

    Motion detection, video tampering and loss, local alarm, camera offline, manual alarm control, DSM, ADAS and BSD alarm

    Abnormal Alarm

    No HDD, HDD error, insufficient capacity, illegal login, ACC off, high temperature, rollover, battery low voltage, over speed, low speed, collision, tapid turn, rapid speedup, hard braking, low battery safety exception, network security exception

    Alarm Linkage

    Record, snapshot, local external alarm output, buzzer, log, screen prompt, tour



    Supports event detection and alarm such as rollover, collision, rapid speedup/slowdown/turn.

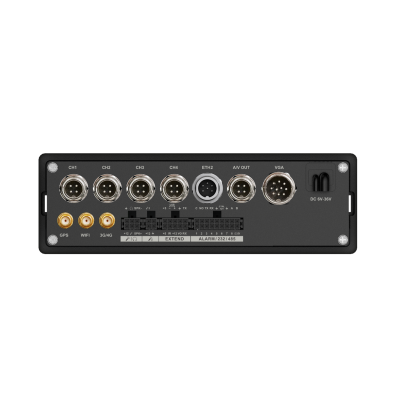

    External Port

    TV Output


    Audio Input

    4 channels PoE audio input

    Audio Output

    1 aviation port for audio output

    1 audio talk output

    Two-way Talk


    Alarm Input

    8 channels for alarm input, 1 channel for pulse speed measuring

    Alarm Output

    1 channel of controllable 12V alarm output, digital quantity






    Front panel: 2 × USB 2.0

    Rear panel: 1 × USB 2.0 from EXTEND port

    Pulse Count


    Satellite Positioning


    Network Port

    Front panel: 1 × 10M/100M RJ45

    Rear panel: 1 × 10M/100M 6-pin aviation connector


    Power Supply

    DC 6-36V with the built-in UPS (Enables system protection in normal power cut-off and in under-voltage of vehicle battery.)

    Power Consumption

    8.4 W (without peripheral )

    Low power consumption: < 0.1W

    Gross Weight

    2.83 KG (6.24 lb) (with packages)

    Product Dimensions

    1 DIN

    Front panel: 190 mm × 60 mm (7.5’×2.4’)

    Rear panel: 180 mm × 50 mm (7.1’×2.0’)

    Depth:190 mm (7.5’)

    Packaging Dimensions

    308 mm × 293 mm × 123 mm (12.1’×11.5’×4.8’) (L × W × H)

    Operating Temperature

    –30 °C to +70°C (–22 °F to +158 °F)

    Operating Humidity

    10% – 90%

    Operating Altitude

    5000 m


    Assembled before leaving the factory/bracket
