Category

Category

Cat6A keystone jack

Shielding Type

Unshielded

Material Specifications

Panel Material

PC (UL94V-0)

Pin Material

Phosphor bronze gold over nickel plating, golden plated 50u"

IDC Material

Phosphor bronze

PCB Material

FR-4

Electrical Specifications

Contact Resistance

≤20 mΩ

Current Rating

1.5 Amps @20 °C

DC Resistance

0.1 Ω

DC/AC Volt Endurance

1000 VAC, 750 VDC, 1 min

Insulation Resistance

500 MΩ, 100 VDC, 1 min

General Specifications

Color

White

Wiring

TIA 568A/TIA 568B

Compatible With Conductor Gauge

22 AWG–24 AWG

Plug Insertion Life

≥750 cycles

IDC Life

≥200 termination cycles

Retentiveness Of Insertion Structure

50N 60 s±5 s

Flammability Rating

UL94V-0

Product Dimensions

37.30 mm × 16.80 mm × 23.25 mm (1.47" × 0.66" × 0.92") (L × W × H)

Packaging Dimensions

219.00 mm × 110.00 mm × 101.00 mm (8.62" × 4.33" × 3.98") (L × W × H)

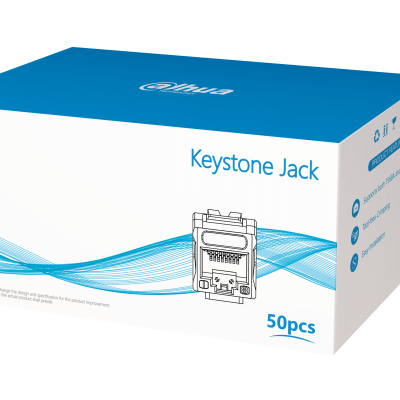

Packaging Method

50 pcs in 1 carton, and 20 cartons in 1 package

Operating Temperature

–20 °C to +75 °C (–4 °F to +167 °F)

Operating Humidity

10%–90% (RH)

Storage Temperature

–40 °C to +75 °C (–40 °F to +167 °F)

Storage Humidity

10%–90% (RH)

Net Weight

0.46 kg (1.01 lb)

Gross Weight

0.56 kg (1.23 lb)

Standard

Compliance Standard

ANSI/TIA568.2-D
